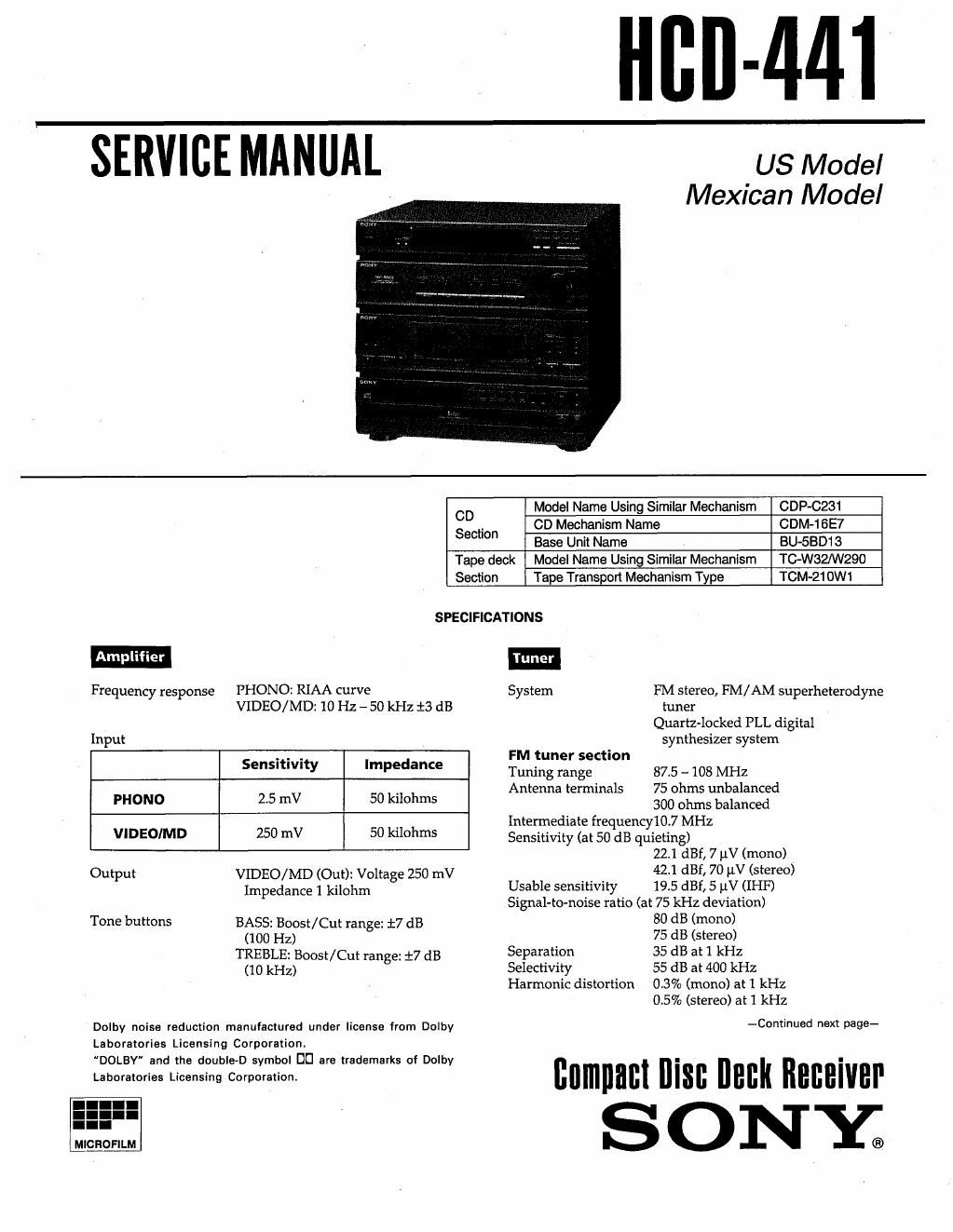

Sony hcd 441 service manual

Page 2

AM tuner section
Tuning range 530 - 1,710 kHz (10 kHz)

531 -- 1,710 kHz (9 kHz)

Antenna AM loop antenna, External antenna
terminals
Intermediate frequency
450 kHz
Usable sensitivity AM loop antenna: 500 uV/m
(1,000 kHz)

Signal-to-noise ratio 54 dB
Harmonic distortion 0.5%

Selectivity 38 dB (10 kHz)
System 4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
With TYPE 11 cassette (Sony
UCX-S): 30 - 14,000 Hz (:3 dB)
With TYPE I cassette (Sony HF-S):
30 - 13,000 Hz (13 dB)
Wow and flutter 0.12% WRMS (NAB)

Mexican model only

Este aparato esté clasificado coma
praduclo Iasérico de £155: 1.

La inscripcibn CLASS 1 LASER
PRODUCT se encuentra en la part:
posterior exterior.

En el interior de la unidad se encuentra la etiqueta dc
precaucion siguiente.

mmau nuns-g wen mmmfiu
AVOID mun your.

AWARSEI. :mun vacuum man-mu w
Imwommmi saw: is mm
um an em: vo- swans.

u: u u lemmfllw

n i
ruinw Mfllfllfilml.

Compact Disc

System Compact disc digital audio system
Laser Semiconductor laser
Wavelength 780-790 nm

Frequency response 2 Hz - 20 kHz ($1.5 dB)
Harmonic distortion Less than 0.03 % (1 kHz)

General

Approx. 430 x 410 x 400 mm (w/h/d)

Dimensions
(17 x 163/ x 153/ inches)
(including projecting parts and.
controls)
Mass Approx. 8.7 kg (19 lb 3 02) net
Accessories supplied
AM loop antenna (1)

FM wire antenna (1)

Remote Commander RM-S441 (1)
Sony batteries SUM-3(NS) (2)
System control cord (1)

Audio connecting cord (2)

Design and specifications are subject to change without
notice.

SAFETY-RE LATED COMPONENT WARNING! !

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONV PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
