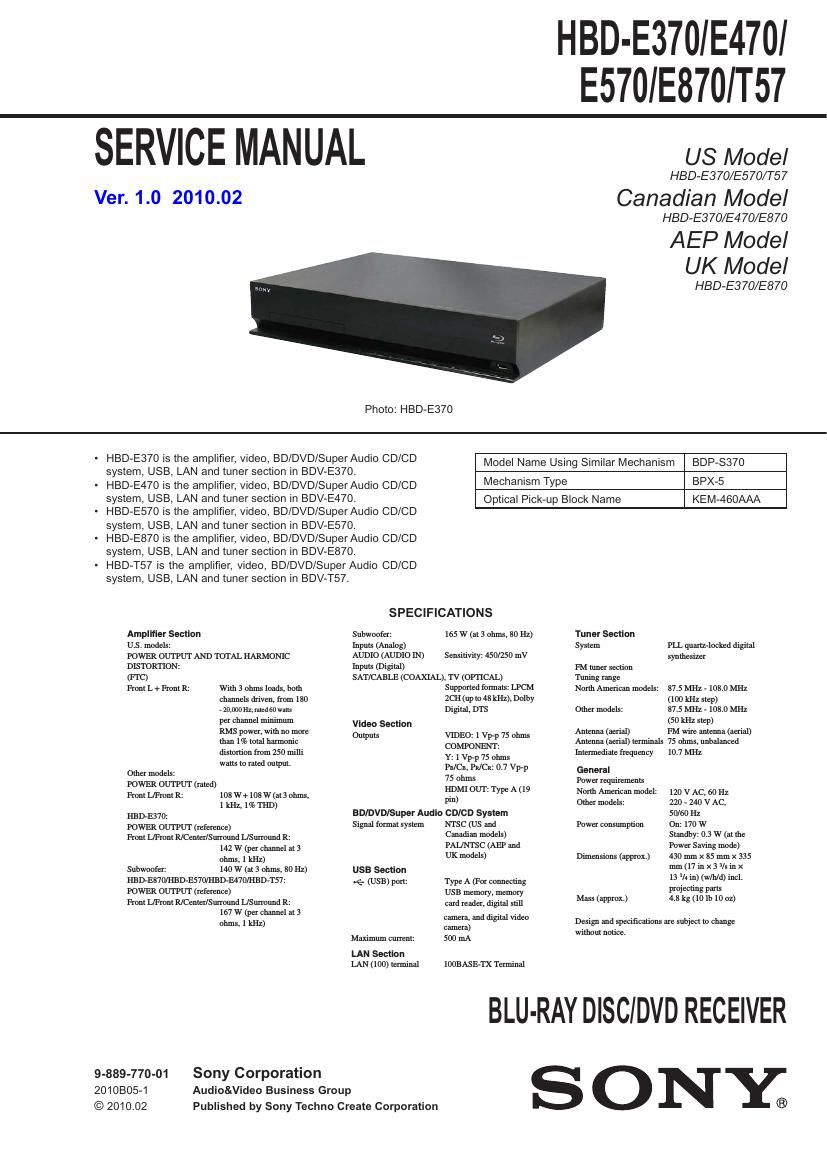

Sony HBD E370 Service Manual

Page 2

H BD-E370/E470IE570IE870/T57

~ This product incorporates copyright protection technology that is protected by
U S patetits and other intellectual propeny rights
Use of this copyright protection technology milst be authorized by Macrovtsion,
and is Intended for holne and other limited viewing uses only unless otherwise
authorized by Macrovisioii
Reverse engineering or disassembly is prohibited
~ This system Iiicolpomtes Witli Dolby* Digital and Dolby Pro Logic (II) adaptive
matrix surrollnd decoder and the DTS** Digital Surround System
* Manufactured under license from Dolby Laboratories
Dolby. Pro Logic. and the dollhlerD symbol are trademarks of Dolby Labora
tories
MManufactured under license under U S Patent #s:
5,451,942:5,956,674:5,974,380:5,978,762:6,226,61616,487,535;
7,212,237 7,333,929; 7,392,195; 7,272,567 a otherU s and worldwide
patents issued & pending DTS is a registered trademark and the DTS logos,
Symbol, DTSrHD and DTSrHD Master Audio are tradelnarks ofDTS. Inc
7 [99672008 DTS, Inc All Rights Reserved
~ Tii . stem Iiicolpomtes HighsDefinitlon Miiitiinedia Interface (HDMITM) techr
noiogy
HDMI. the HDMI logo and Higthefinilion Multimedia Interface are trademarks
or registered trademarks ofI-IDMI Licensing LLC
- Java and all Javarbased trademarks and logos are trademarks or registered trade-
marks ofSun Microsystems, liic
- BD»LIVE" and BONUSVIEW are trademarks ofBlurray Disc Association
- Blurray Disc" is a trademark
- Blurray Dis DVD+RW," DVDrRV, DVD+R," DVDrR, DVD
VIDEO," and CD" logos are trademarks
- BRAVIA is a trademark ofSony Corporation
- AVCHD and the AVCHD logo are trademarks otMaIsushlta Electric Indusr
trial Co . Ltd and Sony Corporation
AIR" and its logo are trademarks orSoriy Corporation
, XMB." and xross niedla bar" are trademarks ofSony Corporation and Sony
Computer Entertainment Inc
- PLAYSTATION" is a trademark of Sony Computer Entertainment Inc
- DIVXV. DivX Certified and associated logos are registered trademarks of DivX,
Inc and are used Ilnder license (Except for U S models )
~ Music and video recognition technology and related data are provided by Grace
nole
Gracenote is the industry standard in itiiistc recognition technology and related
content delivery For more information. please vistt www gracenote cont
CD, DVD. Blurray Disc, and music and videOrrelated data from Gracenote. Inc .
copyright to 20007present Gi'acenote
Gracenote Sofiware. copyright to ZOOOrpresent Gracenoie One or more patents
owned by Gracenote apply to this product and service See the Graceiicie website
for a nonexliausiive list ot'applicable Gracenote patents Graceiioic, CDDB.
Miisich, MediaVOCS, the Gracenote logo and logotype. and the Powered by
Gracenote" logo are either registered trademarks or trademarks ofGracenote iii
the United States and or other countries

CLASSt LASER PRODUCT
LUDKAN i LASERLAITE

mass 1 LASERAPPARAT

This appliance is classified as a
CLASS 1 LASER product. This
marking is located on the rear
exterior.

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPQSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A SUR
LES DIAGRAMMES SCHEMATIQUES ET LA LISTE DES
PIECES SONT CRITIQUES POUR LA SECURITE DE FONC-
TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE
PAR DES PIECES SONY DONT LES NUMEROS SONT DON-
NES DANS CE MANUEL 0U DANS LES SUPPLEMENTS
PUBLIES PAR SONY.

2

NOTES ON CHIP COMPONENT REPLACEMENT

- Never reuse a disconnected chip component.

- Notice that the minus side ofa tantalum capacitor may be dam-
aged by heat.

FLEXIBLE CIRCUIT BOARD REPAIRING

- Keep the temperature of soldering iron around 270 °C during
repairing.

- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

- Be careful not to apply force on the conductor when soldering
or unsolderingl

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radia-
tion exposure.

SAFETY CHECK-OUT

After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:

Check the antenna terminals, metal trim, metallized knobs,
screws, and all other exposed metal parts for AC leakage.

Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for thisjob.

3. Measuring the voltage drop across a resistor by means of a

VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 VAC range are suitable. (See
Fig. A)

To Exposed Metal
Parts on Set

AC
0.15 pF :: g 1.5 ko / voltmeter
(o. 75 V)

_ Earth Ground
Fig. A. Using an AC voltmeter to checkAC leakage.
