Sony hbd e2100 e3100 e3200 e4100 e6100 ver1 7
This is the 94 pages manual for sony hbd e2100 e3100 e3200 e4100 e6100 ver1 7.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hbd e2100 e3100 e3200 e4100 e6100 ver1 7 (Ocr-read)

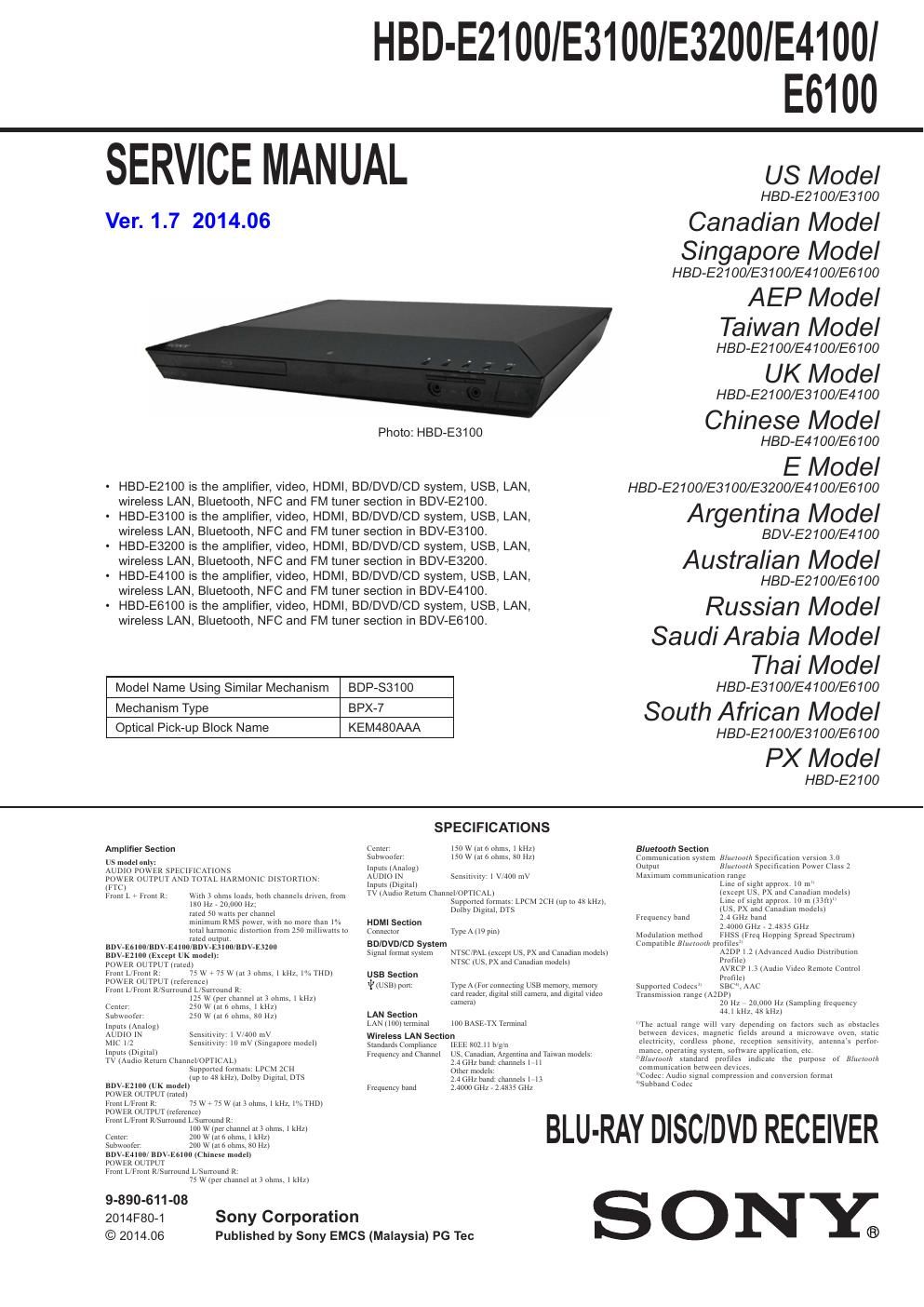

Page 1
HBD-E2100/E3100/E3200/E4100/E6100 2 SAFETY-RELATED COMPONENT WARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC- TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON- NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. FM Tuner Section System PLL quartz-locked digital synthesizer Tuning range 87.5 MHz - 108.0 MHz (50 kHz step) (except US, PX and Canadian models) 87.5 MHz - 108.0 MHz (100 kHz step) (US, PX and Canadian models) Antenna (aerial) FM wire antenna (aerial) General Power requirements US and Canadian models: 120 VAC, 60 Hz Taiwan model: 120 V AC, 50/60 Hz Latin-American, 110 – 240 V AC area in E model and PX models: 110 V – 240 V AC, 50/60 Hz Saudi Arabia model: 127 V – 240 V AC, 50/60 Hz Other models: 220 V – 240 V AC, 50/60 Hz Power consumption On: 95 W Standby: 0.3 W Dimensions (w/h/d) (approx.) 430 mm × 50.5 mm × 296 mm (17 in × 2 in × 11 ¾ in) incl. projecting parts Mass (approx.) 2.7 kg (5 lb 16 oz) Design and specifications are subject to change without notice. - Standby power consumption: 0.3 W. - Over 85% power efficiency of amplifier block is achieved with the full digital amplifier, S-Master. - This system incorporates with Dolby* Digital and Dolby Pro Logic adaptiv\ e matrix surround decoder and the DTS** Digital Surround System. * Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratorie\ s. ** Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; \ 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and w\ orldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together a\ re regis- tered trademarks of DTS, Inc. Product includes software. © DTS, Inc. \ All Rights Reserved. - This system incorporates High-De fi nition Multimedia Interface (HDMI TM) technology. The terms HDMI and HDMI High-Defi nition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United \ States and other countries. - Java is a trademark of Oracle and/or its af fi liates. - DVD logo is a trademark of DVD Format/ Logo Licensing Corporatio\ n. - Blu-ray Disc, Blu-ray, Blu-ray 3D, BD-LIVE\ , BONUSVIEW, and logos are trade- marks of the Blu-ray Disc Association. - Blu-ray Disc, DVD+RW, DVD-RW, DVD+R, DVD-R, DVD VIDEO, and CD logos are trademarks. - BRAVIA is a trademark of Sony Corporation. - AVCHD 3D/Progressive and the AVCHD 3D/Progressive logo are trademarks of Panasonic Corporation and Sony Corporation. - , XMB, and xross media bar are trademarks of Sony Corpo\ ration and Sony Computer Entertainment Inc. - Playstation is a registered trademark of Sony Computer Entertain\ ment Inc. - Sony Entertainment Network logo and Sony Entertainment Netwo\ rk are trademarks of Sony Corporation. - Music and video recognition technology and related data are provided by \ Gracenote ®. Gracenote is the industry standard in music recognition technology and r\ elated content delivery. For more information, please visit www.gracenote.com. CD, DVD, Blu-ray Disc, and music and video-related data from Gracenote, \ Inc., copyright © 2000-present Gracenote. Gracenote Software, copyright © 2000-present Gracenote. One or more p\ atents owned by Gra- cenote apply to this product and service. See the Gracenote website for \ a nonexhaustive list of applicable Gracenote patents. Gracenote, CDDB, MusicID, MediaVOCS, the G\ racenote logo and logotype, and the Powered by Gracenote logo are either regis\ tered trademarks or trade- marks of Gracenote, Inc. in the United States and/or other countries. - Wi-Fi ®, Wi-Fi Protected Access ® and Wi-Fi Alliance ® are registered marks of the Wi-Fi Alliance. - Wi-Fi CERTIFIED™, WPA™, WPA2™ and Wi-Fi Protected Setup™ are marks of the Wi-Fi Alliance. - The N Mark is a trademark or registered trademark of NFC Forum, Inc. in \ the United States and in other countries. - Android is a trademark of Google Inc. - The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, I\ nc. and any use of such marks by Sony Corporation is under license. Other tr\ ademarks and trade names are those of their respective owners. - MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and \ Thomson. - This product incorporates proprietary technology under license from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide paten\ ts issued and pending as well as copyright and trade secret protection for certain aspects of \ such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited. - Windows Media is either a registered trademark or trademark of Microsoft \ Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Mic\ rosoft Corporation. Use or distribution of such technology outside of this product is prohibited\ without a license from Microsoft or an authorized Microsoft subsidiary. Content owners use Microsoft ® PlayReady™ content access technology to protect their in- tellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may requi\ re Microsoft to revoke the devices ability to consume PlayReady-protected content. Revocation should not \ affect un- protected content or content protected by other content access technolog\ ies. Content owners may require you to upgrade PlayReady to access their content. If you decline\ an upgrade, you will not be able to access content that requires the upgrade. - DLNA™, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certi fi - cation marks of the Digital Living Network Alliance. - Opera ® Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved. - All other trademarks are trademarks of their respective owners. - Other system and product names are generally trademarks or registered tr\ ademarks of the manu- facturers. ™ and ® marks are not indicated in this document. End User License Information Gracenote ® End User License Agreement This application or device contains software from Gracenote, Inc. of Eme\ ryville, California (Gracenote). The software from Gracenote (the Gracenote Software) enables t\ his application to perform disc and/or fi le identi fi cation and obtain music-related information, including name, artist, track, and title information (Gracenote Data) from onl\ ine servers or embedded databases (collectively, Gracenote Servers) and to perform other functions. You may use Gracenote Data only by means of the intended End-User functions of this application or \ device. You agree that you will use Gracenote Data, the Gracenote Software, and G\ racenote Servers for your own personal non-commercial use only. You agree not to assign, copy, transfer or transmit the Gracenote Software or any Gracenote Data to any third party. YOU AGREE NOT TO USE OR EXPLOIT GRACENOTE DATA, THE GRACENOTE SOFTWARE, OR GRACENOTE SERVERS, EXCEPT AS EXPRESSLY PERMITTED HEREIN. You agree that your non-exclusive license to use the Gracenote Data, the \ Gracenote Software, and Gracenote Servers will terminate if you violate these restrictions. \ If your license terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote \ Software, and Gracenote Servers. Gracenote reserves all rights in Gracenote Data, the Gracenote \ Software, and the Gracenote Servers, including all ownership rights. Under no circumstances will Gra\ cenote become liable for any payment to you for any information that you provide. You agree that Gracenote, Inc. may enforce its rights under this Agreement against you directly in its own name. The Gracenote service uses a unique identi fi er to track queries for statistical purposes. The purpose of a randomly assigned numeric identi fi er is to allow the Gracenote service to count queries without knowing anything about who you are. For more information, see the web pa\ ge for the Gracenote Privacy Policy for the Gracenote service. The Gracenote Software and each item of Gracenote Data are licensed to y\ ou AS IS. Gracenote makes no representations or warranties, express or implied, regarding th\ e accuracy of any Gracenote Data from in the Gracenote Servers. Gracenote reserves the right to dele\ te data from the Gracenote Servers or to change data categories for any cause that Gracen\ ote deems suf fi cient. No warranty is made that the Gracenote Software or Gracenote Servers are\ error-free or that functioning of Gracenote Software or Gracenote Servers will be uninterru\ pted. Gracenote is not obligated to provide you with new enhanced or additional data types or c\ ategories that Gracenote may provide in the future and is free to discontinue its services at any\ time. GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. GRACENOTE DOES NOT WARRANT THE RESULTS THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES. © Gracenote, Inc. 2009 Ve r. 1 . 5 CAUTION Use of controls or adjustments or performance of procedures other than those speci fi ed herein may result in hazardous radia- tion exposure.
Page 2
HBD-E2100/E3100/ E3200/E4100/E6100 3 SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) 1.5 kΩ 0.15 μF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. Ve r. 1 . 5
