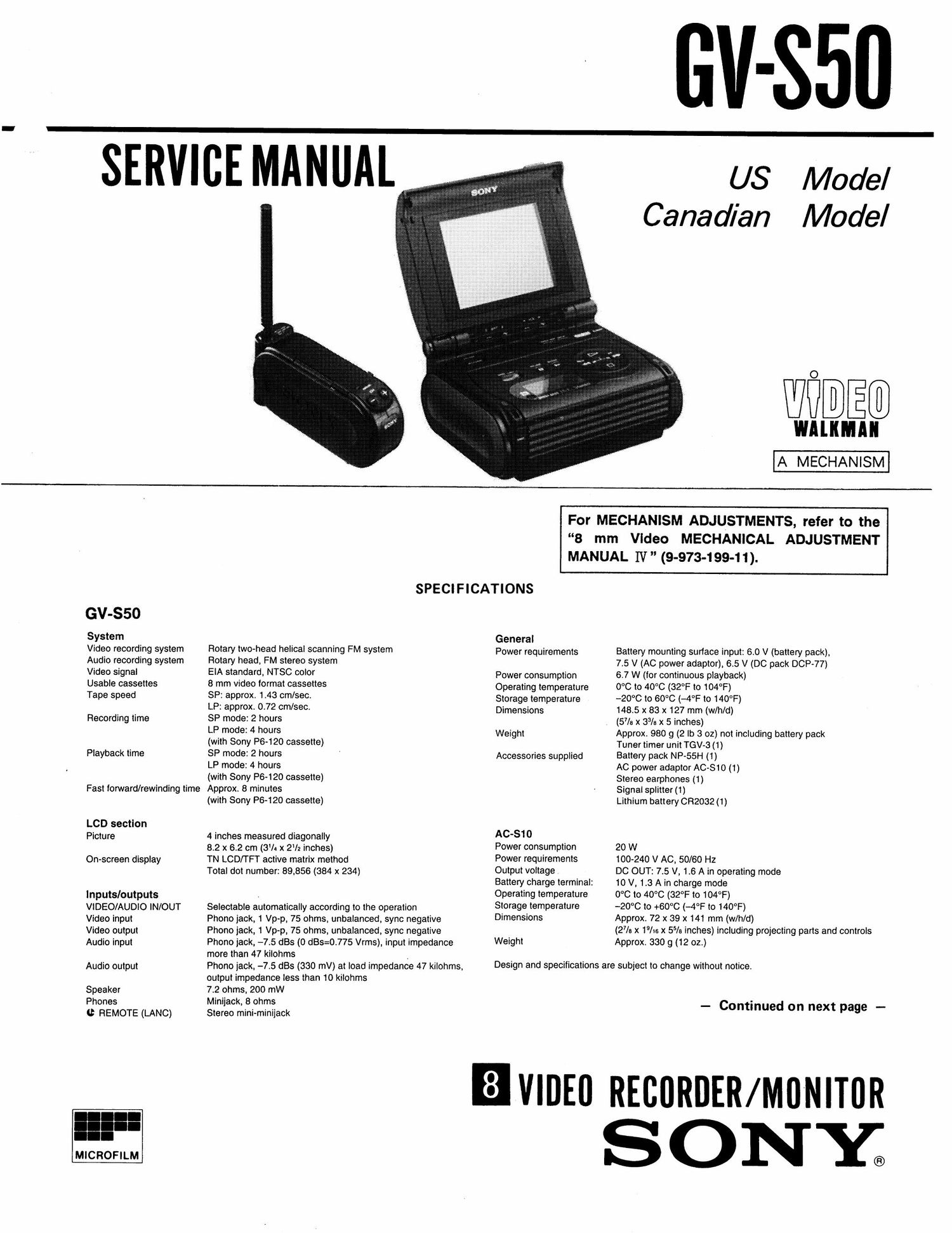

SERVICE MANUAL

(iv-850

US Model
Canadian Model

WW :6)

WAllIMAII
A MECHANISM

GV-SSO

System

Video recording system
Audio recording system
Video signal

Usable cassettes

Tape speed

Recording time

Playback time

Fast torward/rewinding time

LCD section

On-screen display

Inputs/outputs
VIDEO/AUDIO IN/OUT
Video input

Video output

Audio input

Audio output
Speaker

Phones
c REMOTE (LANC)

MICROFILM

For MECHANISM ADJUSTMENTS, refer to the
8 mm Video MECHANICAL ADJUSTMENT
MANUAL IV " (9-973-199-11).

SPECIFICATIONS

Rotary two-head helical scanning FM system
Rotary head, FM stereo system
EIA standard, NTSC color

8 mm video format cassettes
SP: approx. 1.43 cm/sec.

LP: approx. 0.72 cm/sec.

SP mode: 2 hours

LP mode: 4 hours

(with Sony P6420 cassette)
SP mode: 2 hours

LP mode: 4 hours

(with Sony P6-120 cassette)
Approx. 8 minutes

(with Sony P6-12O cassette)

4 inches measured diagonally

8.2 x 6.2 cm (3% x 2/2 inches)

TN LCD/T FT active matrix method
Total dot number: 89.856 (384 x 234)

Selectable automatically according to the operation

Phono jack, 1 Vp-p, 75 ohms, unbalanced, sync negative
Phono jack, 1 Vp-p, 75 ohms, unbalanced, sync negative
Phono jack, -7.5 st (0 st=0.775 Vrms), input impedance
more than 47 kilohms ,

Phono jack, -7.5 st (330 mV) at load impedance 47 kilohms.
output impedance less than 10 kilohms

7.2 ohms, 200 mW

Minijack, 8 ohms

Stereo mini-minijack

General
Power requirements

Power consumption
Operating temperature
Storage temperature
Dimensions

Weight

Accessories supplied

AC-S10

Power consumption
Power requirements
Output voltage ,

Battery charge terminal:
Operating temperature
Storage temperature
Dimensions

Weight

Battery mounting surtace input: 6.0 V (battery pack),
7.5 V (AC power adaptor), 6.5 V (DC pack DCP-77)
6.7 W (for continuous playback)

0°C to 40°C (32°F to 104°F)

-20°C to 60°C (-4°F to 140°F)

148.5 x 83 x 127 mm (w/h/d)

(57/3 x 33/3 x 5 inches)

Approx. 980 g (2 lb 8 02) not including battery pack

Tuner timer unit TGV-3 (1)

Battery pack NP-55H (1)

AC power adaptor AC-Sl 0 (1)

Stereo earphones (1)

Signal splitter (1)

Lithium battery CR2032 (1)

20 W

100-240 V AC, 50/60 Hz

DC OUT: 7.5 V, 1.6 A in operating mode

10 V, 1.3 A in charge mode

0°C to 40°C (32°F to 104°F)

~20°c to +60°C (-4°F to 140°F)

Approx. 72 x 39 x 141 mm (w/h/d)

(27/3 x 19/16 x 55/3 inches) including projecting parts and controls
Approx. 330 g (12 oz.)

Design and specifications are subject to change without notice.

- Continued on next page -

Evmtn RECORDER/MONITOR
SONY;

Page 2

TGV-3

ListofRecommended Accessonesggas,.y:.;;,a {My '

Tuner section

Model Name page Channel coverage VHF: 2-1 3 channels
UHF: 14-69 channels
Battery pack NP-77HD. NP77H. or NP'66H 13 Cable TV channels: (A-B-A-S), (A-2-W), (W+30-W+84)
Battery charger 30310 or 30.77 13 Antenna input 75-ohm miniiack for VHF/UHF
Car battery charger 00810 17 Timer section
DC pack DCP-77 17 Clock Crystal lock
Time indication 12-hour c cle
Connecting cord VMC-91OS/9208 (1 m/2 m) 30. 32, 34, 35, 36, 37 Timer setting Only for [:6 or di n9, 6 events / month
Cleaning cassette V8-250LH 38
General
Power requirements Power is supplied from the GV-SSO video recorder/monitor.
Power consumption 1.3 W
Operating temperature 0°C to 40°C (32°F to 104°F)
Storage temperature -20°C to 60°C (-4°F to 140°F)
Dimensions 34.5 X 64.5 X 121.5 mm (w/h/d)
(1 3/8 X 2 5/3 x 4 7/8 inches)
Mass Approx. 170 g (6 oz)

Design and specifications are subject to change without notice.

SAFETY CHECK-OUT

After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or
poorly-soldered connections. Check the entire
board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no
wires are pinched or contact high-wattage
resistors.

3. Look for unauthorized replacement parts, par-
ticularly transistors, that were installed during a
previous repair. Point them out to the customer
and recommend their replacement.

SAFETY-RELATED COMPONENT WARNING! !

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

4. Look for parts which, though functioning, show
obvious signs of deterioration. Point them out
to the customer and recommend their replace-
ment.

5. Check the B+ voltage to see it is at the values
specified.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LEs COMPOSANTS IDENTIFIES PAR UNE MAROUE A
SUR LES DIAGRAMMES SCHEMATIOUES ET LA LiSTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNES DANS CE MANUEL 0U
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
