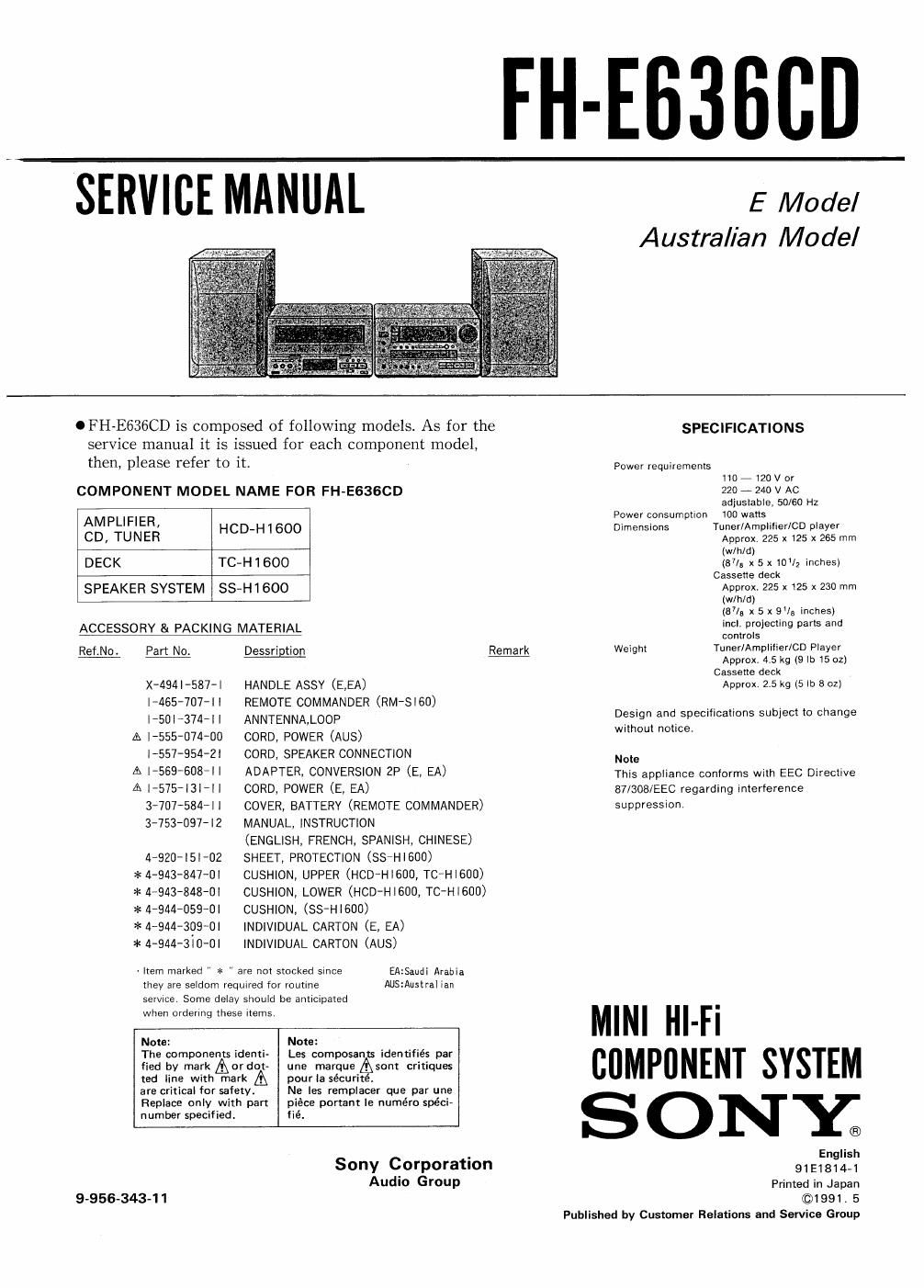

Page 1

FH-EBBBBD

SERVICE MANUAL

E Model
Australian Model

OFH-E636CD is composed of following models. As for the

service manual it is issued for each component model,
then, please refer to it.

COMPONENT MODEL NAME FOR FH-E6360D

AMPLIFIER,
CD, TUNER

HCD-H1600

DECK TC-H 1 600

SPEAKER SYSTEM SS-H1600

ACCESSORY & PACKING MATERIAL

Ref,NO . Part No.

X-494 I -587- I
I-465-707-Il
I-50l-374-I |
A I-555-074-00
I'557-954-2l
A I-569T608Tl |
A IT575-I31-II
3407-5844 |
3-753-097-I2

4-920- | 5 l -02
* 4-943-847-0I
* 4»943-348-OI
>r 4-944-059-DI
* 4-944~309-OI
* 4-944-3I0-0I

. Item marked " * " are not stocked since

Dessrigtion Remark

HANDLE ASSY (E,EA)

REMOTE COMMANDER (RM-Sleo)
ANNTENNA,LOOP

CORD, POWER (AUS)

CORD, SPEAKER CONNECTION

ADAPTER. CONVERSION 2P (E, EA)
CORD, POWER (E, EA)

COVER, BATTERY (REMOTE COMMANDER)
MANUAL, INSTRUCTION

(ENGLISH, FRENCH, SPANISH, CHINESE)
SHEET, PROTECTION (SSTH I 600)
CUSHION, UPPER (HCD-HIBOO, TCAHIOOO)
CUSHION, LOWER (HCD-Hleno, TC-HI6DO)
CUSHION, (SS-HIBOO)

INDIVIDUAL CARTON (E, EA)

INDIVIDUAL CARTON (AUS)

EA:Saudi Arabia

they are seldom required for routine AUS:Austral ian
service. Some delay should be anticipated
when ordenng these Items.

Note: Note:
The components identi- Les composants identifiés par
fied by mark or dot- une marque sont critiques

ted line with mark
are critical for safety. Ne les remplacer que par une
Replace only with part piéce portant le numéro spéci-
number specified.

pour la sécurit .

fié.

9-956-343-11

Sony Corporation
Audio Group

SPECIFICATIONS

Power requirements
110 7 120 V or
220 7 240 V AC
adjustable, 50/60 Hz
Power Consumption 100 watts
Dimensions Tuner/Amplilier/CD player
Approx. 225 x 125 x 255 mm
(wlh/d)
(87/, x 5 x10; inches)
Cassette deck
Approx. 225 x I25 x 230 mm
(w/h/d)
(87/3 x 5 x 9V, inches)
incl. projecting parts and
controls
Weight Tuner/AmplifierlCD Player
Approx. 4.5 kg (9 lb 15 oz)
Cassette deck
Approx. 2.5 kg (5 lb 3 all

Design and specifications subject to Change
without notice.

Note

This appliance conforms with EEC Directive
87/308/EEC regarding interference
suppression.

MINI HI-Fi
CflMPflNENT SYSTEM

ONY.

English

91 E1814-1
Printed in Japan
@1991. 5

Published by Customer Relations and Service Group
