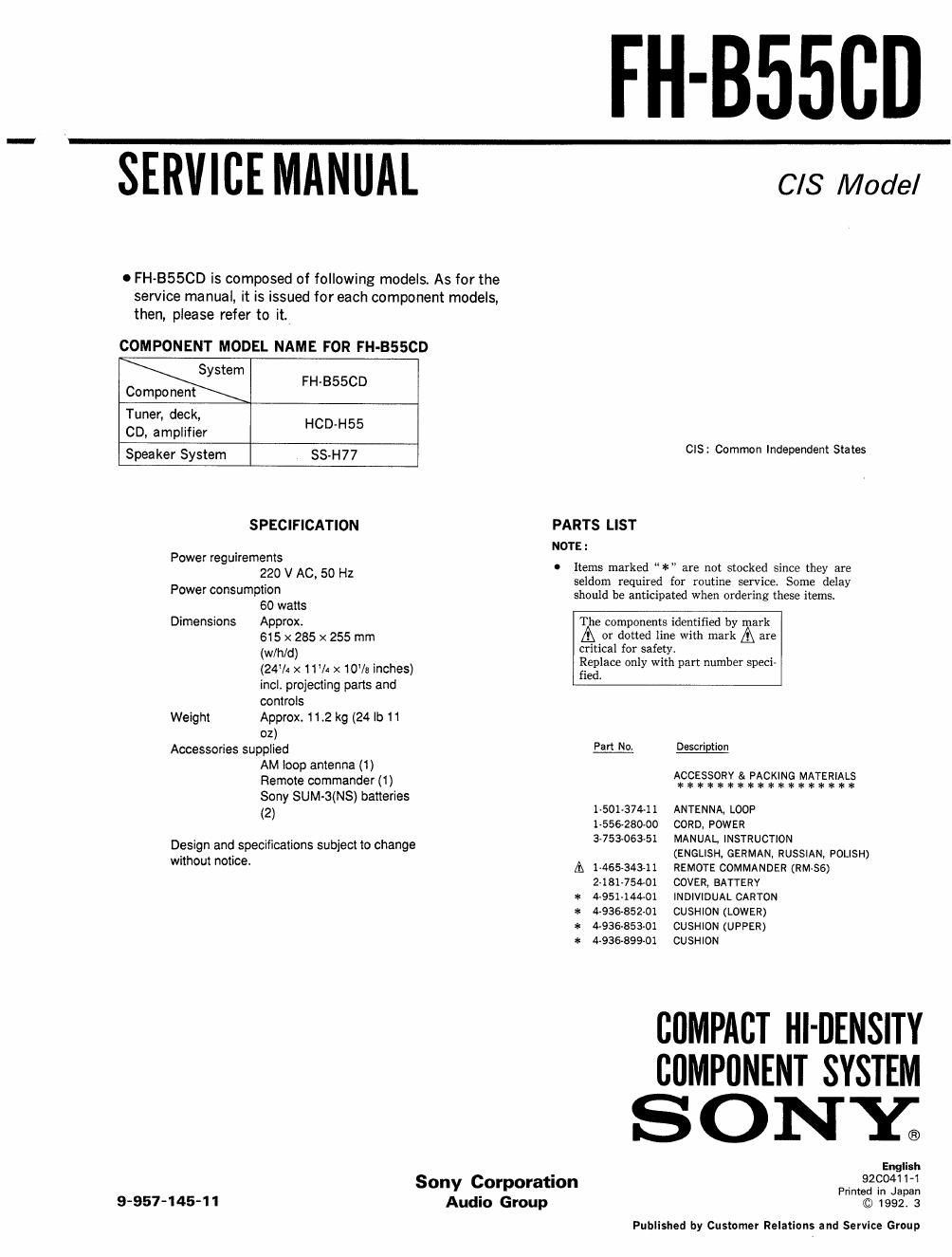

SERVICE MANUAL

0 FH-855CD is composed of following models. As for the
service manual, it is issued for each component models,
then, please refer to it.

COMPONENT MODEL NAME FOR FH-BSSCD

System
FHABSSCD
Component
Tuner, deck,
CD, amplifier HCD-H55
Speaker System SS-H77
SPECIFICATION

Power reguiremems
220 V AC, 50 Hz
Power consumption
60 watts
Approx,
815 x 285 x 255 mm
(w/h/d)
(24v. >< 111/4 x 10% inches)
incl. projecting parts and
controls
Approx. 11.2 kg (24 lb 11
02)
Accessories supplied
AM loop antenna (1)
Remote commander (1)
Sony SUM-3(NS) batteries
(2)

Dimensions

Weight

Design and specifications subject to change
without notice.

FH-B55CD

PARTS LIST
NOTE:

C/S Model

CIS: Common Independent States

0 Items marked * are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items

The components identified by ark
or dotted line with mark are

critical for safety.

Replace only with part number speci-

tied.
Part No, Description
ACCESSORY & PACKING MATERIALS
*****************
1-501-374-11 ANTENNA, LOOP
1656-28000 CORD, POWER
3753406351 MANUAL, INSTRUCTION
(ENGLISH, GERMAN, RUSSIAN, POLISH)
A 1465-34311 REMOTE COMMANDER (RM-$6)
2481-75401 COVER, BATTERY
* 485144401 INDIVIDUAL CARTON
at: 493685201 CUSHION (LOWER)
* 4-936853-01 CUSHION (UPPER)
* 433639901. CUSHION
