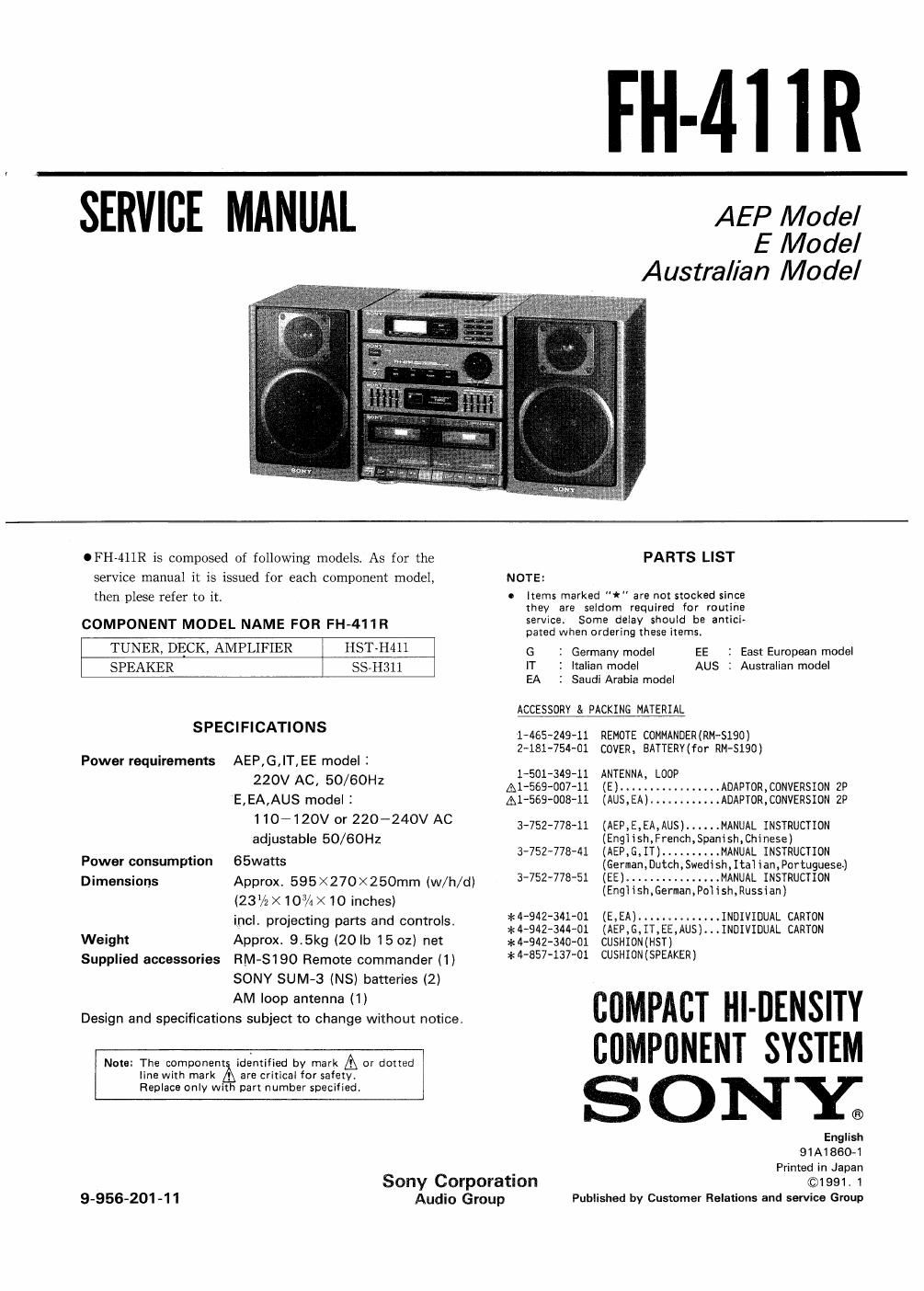

Page 1

FH-4I IR

SERVICE MANUAL

AEP Model
E Model
Australian Model

OFH-411R is composed of following models. As for the
service manual it is issued for each component model,
then plese refer to it.

COMPONENT MODEL NAME FOR FH-411R

TUNER, DECK, AMPLIFIER HST-H411
SPEAKER SS-H311

SPECIFICATIONS

Power requirements AEP,G,IT,EE model I
220V AC, 50/60Hz
E,EA,AUS model I
110*12OV or 220-240V AC
adjustable 50/60Hz

Power consumption 65watts

Dimensions Approx. 595x270><250mm (w/h/d)
(231/2 X103/4 ><10 inches)
incl. projecting parts and controls.
Weight Approx. 9.5kg (20lb 1502) net

Supplied accessories RM-S190 Remote commander (1)
SONY SUM-3 (NS) batteries (2)
AM loop antenna (1)

Design and specifications subject to change without notice.

Note: The component identified by mark & or dotted
line with mark A are critical for safety.
Replace only with part number specified.

Sony Corporation
Audio Group

9-956-201-11

PARTS LIST
NOTE:

0 Items marked "it" are not stocked since
they are seldom required for routine
service. Some delay should be antici»
paced when ordering these items.

6 3 Germany model EE I East European model
IT 1 Italian model AUS 2 Australian model
EA 3 Saudi Arabia model

ACCESSORV & PACKING MATERIAL

1-465-249-11 REMOTE COMMANDER(RM-Sl30)
2181-7534-01 COVER, BATTERHfor RM-SlSO)

1-501-349-11 ANTENNA , LOOP

Al-569-007-11 (E) ................. ADAPTOR,CONVERSION 2P
Al-SGfi-OOE-Il (AUS,EA) ............ ADAPTOR,CONVERSION 2P
3-752-778-11 (AEP,E,EA,AUS) ...... MANUAL INSTRUCTION

(English,French Spanish,Chinese)
3-752-778-41 (AEP,G,IT) ..... ...MANUAL INSTRUCTION

(German,Dutch,S dish,Italian,Portu9uese~)
3-752-778-51 (EE) ................ MANUAL INSTRUCTION

(English,German,Polish,Russian)

>1: A-SAZ-SAl-Ol (E, EA) .............. INDIVIDUAL CARTON
alc 4-942-344-01 (AEP, G, IT , EE, AUS) . . . INDIVIDUAL CARTON
* 4-942-340-01 CUSHION (HST)

>l< 4-857'137-01 CUSHION (SPEAKER)

CIIMPACT Hl-DENSITY
CIIMPIINENT SYSTEM

SONY;

English

91A1860-1

Printed in Japan

©1991. 1

Published by Customer Relations and service Group
