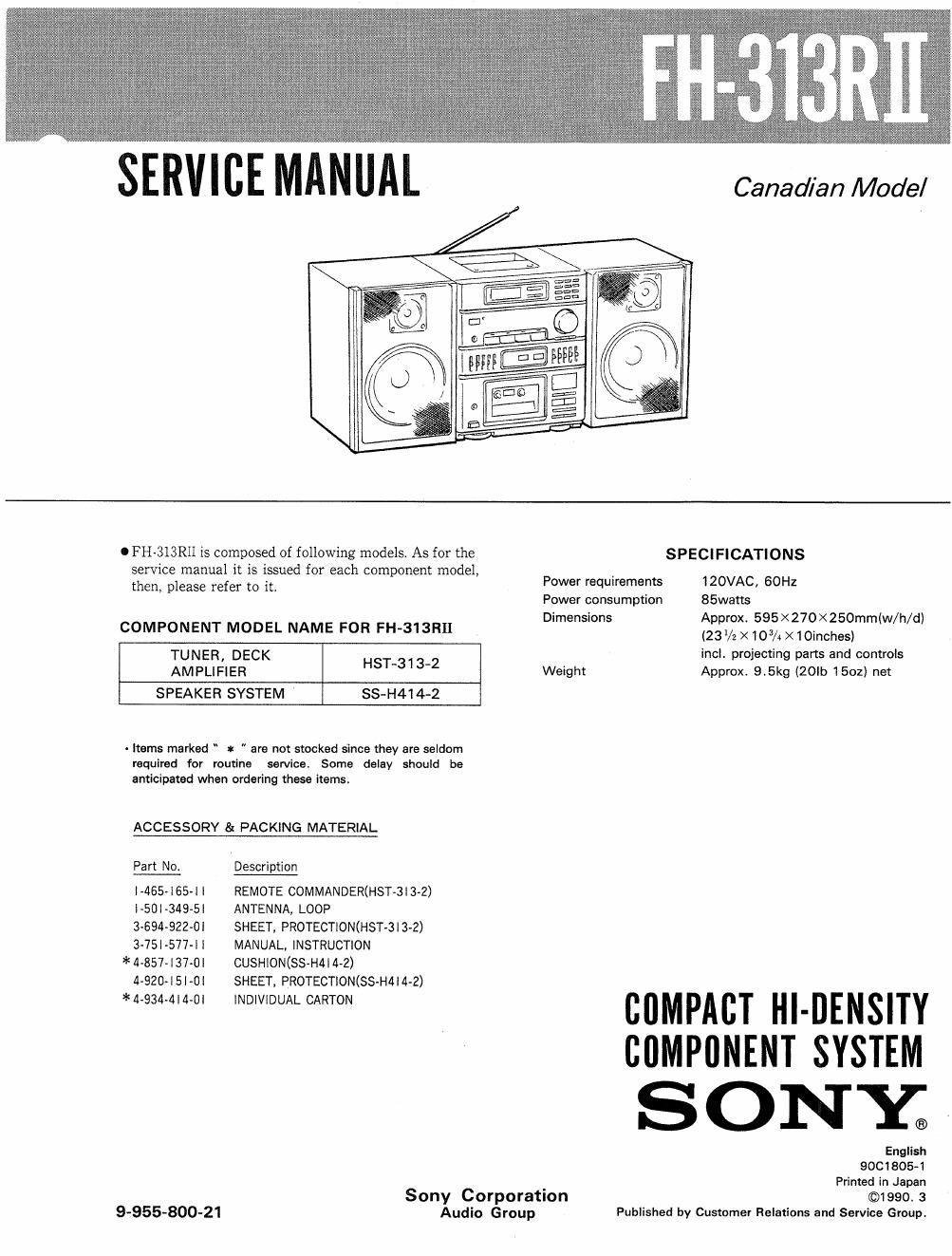

SERVICE MANUAL

Canadian Model

O FH»313RH is composed of following models. As for the

service manual it is issued for each component model,

then, please refer to it.

COMPONENT MODEL NAME FOR FH-313RH

TUNER, DECK _ _
AMPLIFIER ST 313 2
SPEAKER SYSTEM SS-H414-2

- Items marked " at " are not stocked since they are seldom
required for routine service. Some delay should be
anticipated when ordering these items.

ACCESSORY & PACKING MATERIAL

Part No.
I-465-l65-ll
l-50l-349-5I
3-694-922-0I
3-75lv577-ll
* 4-857-137-0I
4-920-I5l-0l
*4-934-4l4-0I

9-955-800-21

Description

REMOTE COMMANDER(HST-3|3-2)
ANTENNA, LOOP

SHEET, PROTECTIONiHST-3I3-2)
MANUAL, INSTRUCTION
CUSHION(SS-H4l4-2)

SHEET, PROTECTION(SS-H4I4-2)
INDIVIDUAL CARTON

Power requirements
Power consumption
Dimensions

Weight

SPECIFICATIONS

120VAC, 60H2

85watts

Approx. 595 X270>< 250mm(w/h/d)
(231/2 X103/4 X10inches)

incl. projecting parts and controls
Approx. 9.5kg (20lb 1501) net

CflMPACT Hl-DENSITY
CflMPflNENT SYSTEM

SONY®

Sony Corporation

Audio Group

English
90018054
Printed in Japan
@1990 3

Published by Customer Relations and Service Group.
