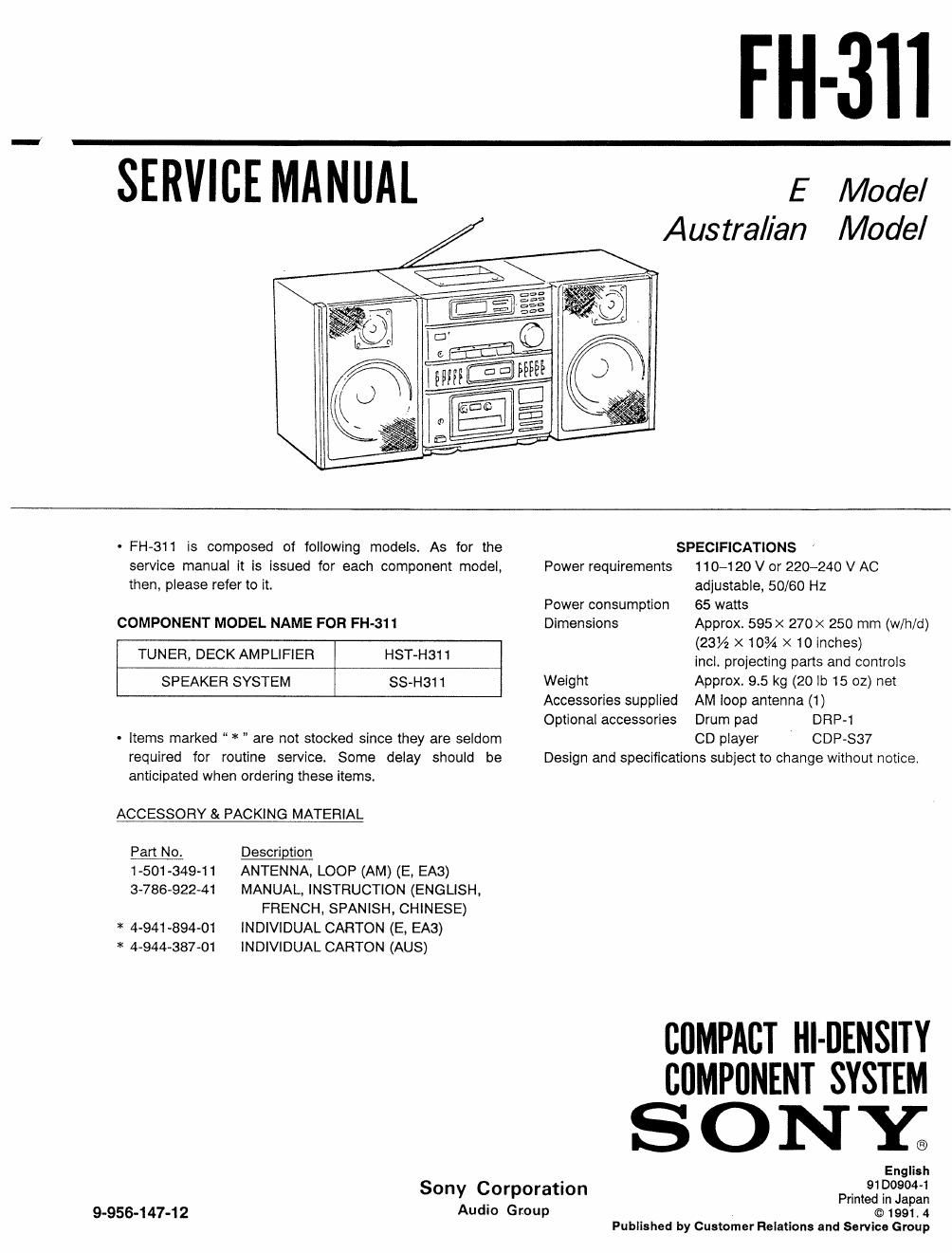

SERVICE MANUAL

FH-3II

E Model

Aus tra/I'an Model

. FH-311 is composed of following models. As for the

service manual it is issued for each component model, Power requirements
then, please refer to it.

Power consumption

COMPONENT MODEL NAME FOR FH-311 Dimensions
TUNER, DECK AMPLIFIER HST-H311
SPEAKER SYSTEM SS-H311 Weight

Accessories supplied
Optional accessories

- items marked * are not stocked since they are seldom

required for routine service. Some delay should be

anticipated when ordering these items.

ACCESSORY & PACKING MATERIAL

Part No.
1-501~349-1 1
3-786-922-41

* 4-941-89401
* 4-944-387-01

9-956-147-12

Description
ANTENNA, LOOP (AM) (E. EAa)

MANUAL, INSTRUCTION (ENGLISH,
FRENCH, SPANISH, CHINESE)

INDIVIDUAL CARTON (E, EAS)

INDIVIDUAL CARTON (AUS)

SPECIFICATIONS

110-120 V or 220-240 V AC
adjustable, 50/60 Hz

65 watts

Approx. 595 x 270 X 250 mm (w/h/d)
(231/2 X 10% X 10 inches)

incl. projecting parts and controls
Approx 9.5 kg (20 lb 15 02) net

AM loop antenna (1)

Drum pad DRP-1

CD player ' GDP-s37

Design and specifications subject to change without notice.

COMPACT HI-OENSITY
COMPONENT SYSTEM

SONY;

Sony Corporation
Audio Group

English
91D0904-1
Printed in Japan
