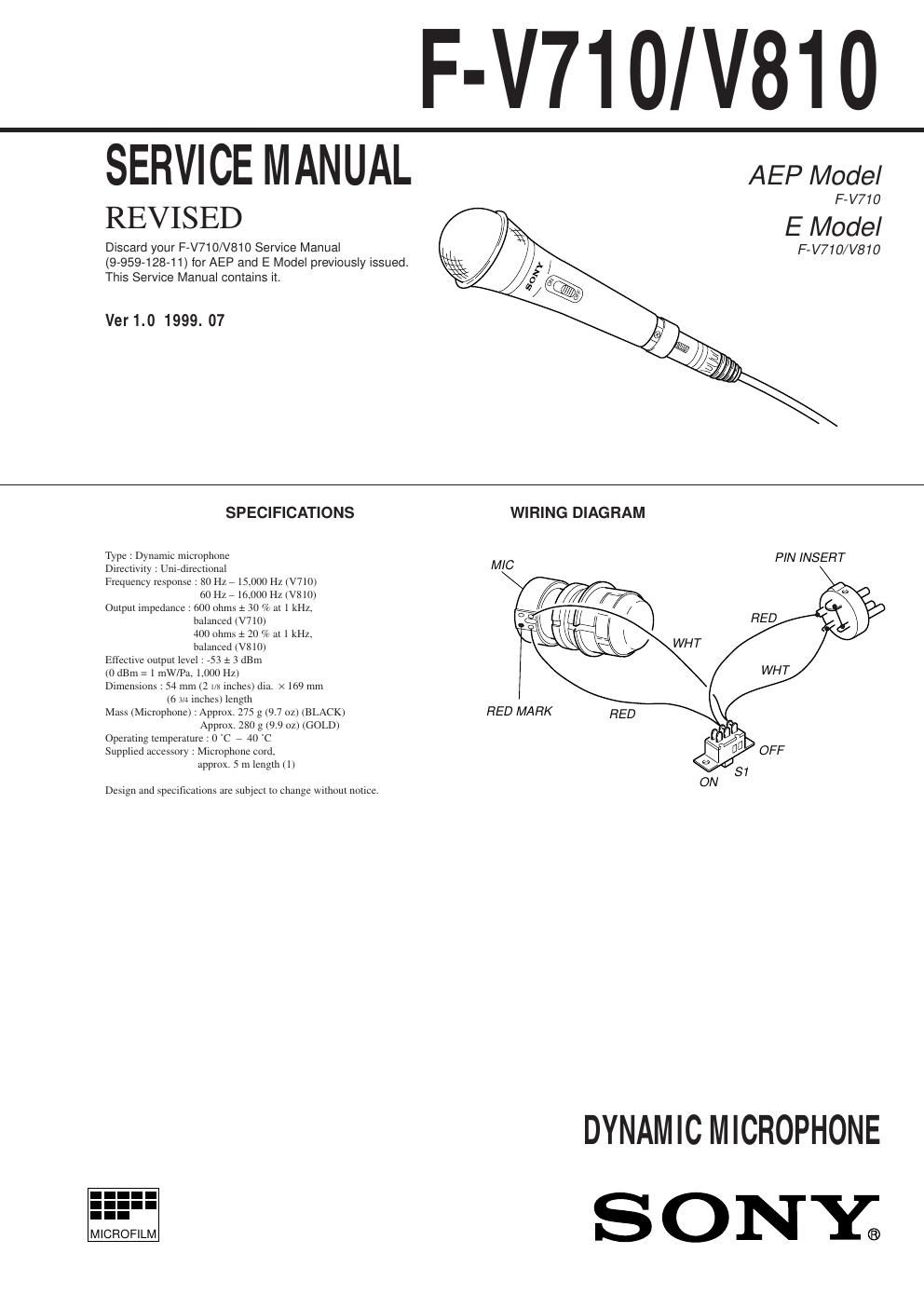

Sony f v 710 service manual

Page 1

Ð 2 Ð Sony Corporation Personal Audio Company 9-959-128-12 99G0461-1 Printed in Japan C1999. 7 Published by General Engineering Dept. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied. ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.¥ Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color CabinetÕs Color NN 1 X-2542-097-1 CAGE ASSY (V710:BLACK) 1 X-2542-098-1 CAGE ASSY (V710:GOLD) 1 X-2542-099-1 CAGE ASSY (V810:BLACK) 1 X-2542-100-1 CAGE ASSY (V810:GOLD) 2 2-543-957-01 SCREEN, INNER 3 2-540-330-01 KNOB (SWITCH) (BLACK) 3 2-540-330-11 KNOB (SWITCH) (GOLD) 4 2-540-331-01 LABEL, SWITCH (BLACK) 4 2-540-331-11 LABEL, SWITCH (GOLD) 5 7-627-553-48 SCREW, PRECISION +P 2X4 6 2-543-958-01 GRIP (BLACK) 6 2-543-958-11 GRIP (V710:GOLD) 6 2-543-958-21 GRIP (V810:GOLD)7 2-543-959-01 LABEL, MODEL NUMBER (V710:BLACK) 7 2-543-959-11 LABEL, MODEL NUMBER (V710:GOLD) 7 2-543-968-01 LABEL, MODEL NUMBER (V810:BLACK) 7 2-543-968-11 LABEL, MODEL NUMBER (V810:GOLD) *8 1-563-175-51 CANNON XLR-3-14 PIN INSERT (BLACK) *8 1-563-175-71 CANNON XLR-3-14 PIN INSERT (GOLD) 9 1-690-522-11 CORD, MICROPHONE (DIA. 6) (1 CORE) (V710) 10 1-590-411-11 CORD, MICROPHONE (2 CORE) (V810) *11 1-506-410-21 PLUG, STANDARD MIC A-4540-211-A DM UNIT ASSY (DU-273-01) (V810) MIC A-4540-217-A DM UNIT ASSY (DU-271-01) (V710) S1 1-571-751-11 SWITCH, SLIDE EXPLODED VIEW 12 MICS1 3 4 5 6 7 119 10 8 (including )
