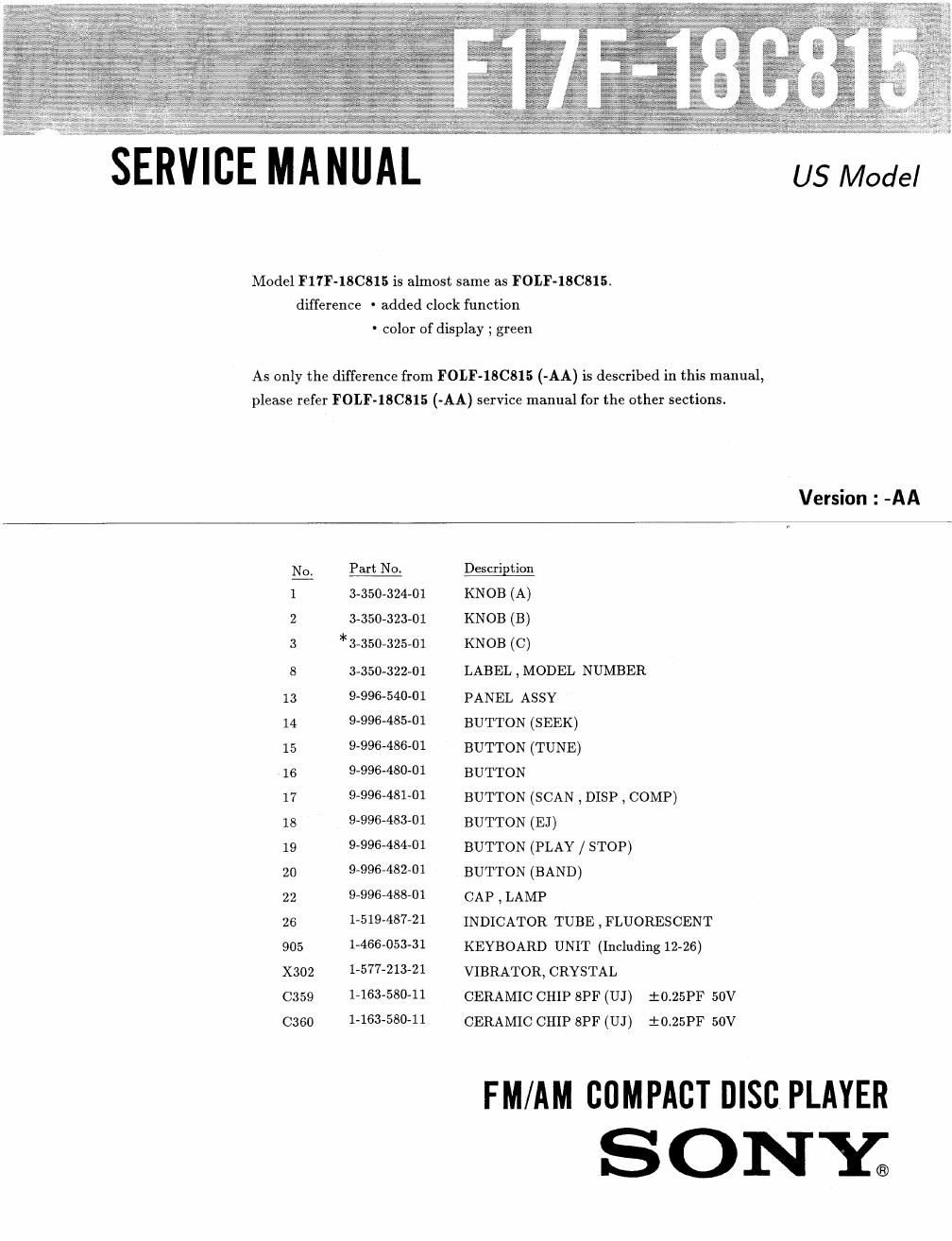

Page 1

SERVICE MAiiUAL

U5 Model

Model F17F-18C815 is almost same as FOLF-18C815.

difference - added clock function

- color of display ; green

As only the difference from FOLF-18C815 (-AA) is described in this manual,
please refer FOLF-18C815 (-AA) service manual for the other sections.

Version : -AA

22
26
905
X302
C359
C360

Part No.
3-350-324-01
3-350-323-01
* 3-350-325-01
3-350-322-01
9-996-540-01
9-996-485-01
9-996-486-01
9-996-480-01
9.996.481-01
eggs-483.01
9996-48401
9-996-482-01
94996-48801
1-519-487-21
1-466-053-31
1-577-213-21
1-163-580-11
1463-58041

DescriEtion

KNOB (A)

KNOB (B)

KNOB (C)

LABEL , MODEL NUMBER

PANEL ASSY

BUTTON (SEEK)

BUTTON (TUNE)

BUTTON

BUTTON (SCAN , DISP , COMP)
BUTTON (EJ)

BUTTON (PLAY / STOP)

BUTTON (BAND)

CAP , LAMP

INDICATOR TUBE , FLUORESCENT
KEYBOARD UNIT (Including 12-26)
VIBRATOR, CRYSTAL

CERAMIC CHIP SPF (UJ) i0.25PF 50V
CERAMIC CHIP SPF (UJ) $0.25PF 50V

FM/AM COMPACT DISC, PLAYER

SONY;

Page 2

Clock Function

The box will have a switch ($501) inside the housing that will be accessible through the cover.
This switch will control whether the unit does or does not display the clock.

0 Display (Disp) button function when clock switch is activated : (F17F-18C815)

' Pushing button while in the CD mode, the display switch from Track Number to Elapsed
Time to Clock. Only clock numerals will display in clock mode.
The time will be displayed until the button is pushed again.
However, if the CD track selection is changed while the unit is in Clock Mode the new Track
Number will display for 2 seconds and then revert back to Clock.

' Pushing button in the Radio Mode, the display switch from Radio Frequency to Clock. The
time will be displayed until the button is pushed again. However, if the radio is retuned while
the unit is in clock Mode the new radio frequency will display for 2 seconds and then revert
back to clock.

' Pushing button while Ignition Key is Off, clock will display for approximately 5 seconds.

0 Display button function when clock switch is deactivated : (FOLF-18C815)
' Pushing button while in the CD mode, the display switch from Track Number to Elapsed
Time.

' The display button has no effect in the Radio Mode.

To set clock, turn Radio/ CD power OFF, push display button and hold in simultaneously with the
rocker Tune button (« to set hours and » to set minutes) until the proper time is reached.
When the radio power switch is off, time will be displayed.

The Precision of the Clock Checking

'The pulse for the clock oscillated by IC103 goes through C2322 and Q32l to the
microcomputer IC 101.

IC103 output pulses go high at intervals of four seconds, and its width is approximately

93.75 msec. approx.
" l 93.75 nisec

k-y [sec ->i
' The precision of the clock is based on the precision of the four seconds intervals.

Procedure : Universal
counter

Q322 :1 ' MODE: (Pulse) Frequency
LPF : ON
Collector o-___o . .
(Main board) l , GATE TIME . 10 s
4 sec (250 mHz)

Refference Data : Less than 1 sec/day
(249.9972

- The oscillating circuit is made up of X302, C359 and C360.
It cannot be adjusted. When there is malfunction, X302 needs to be replaced with new one.

250.0028 mHz)

_ English

Sony Corporation 5024

995559941 Mobile Electronics Group Printed in Java--
@1931]!

_2 _ Published by Customer Relations and Service Glnup
