Sony exs 613 service manual

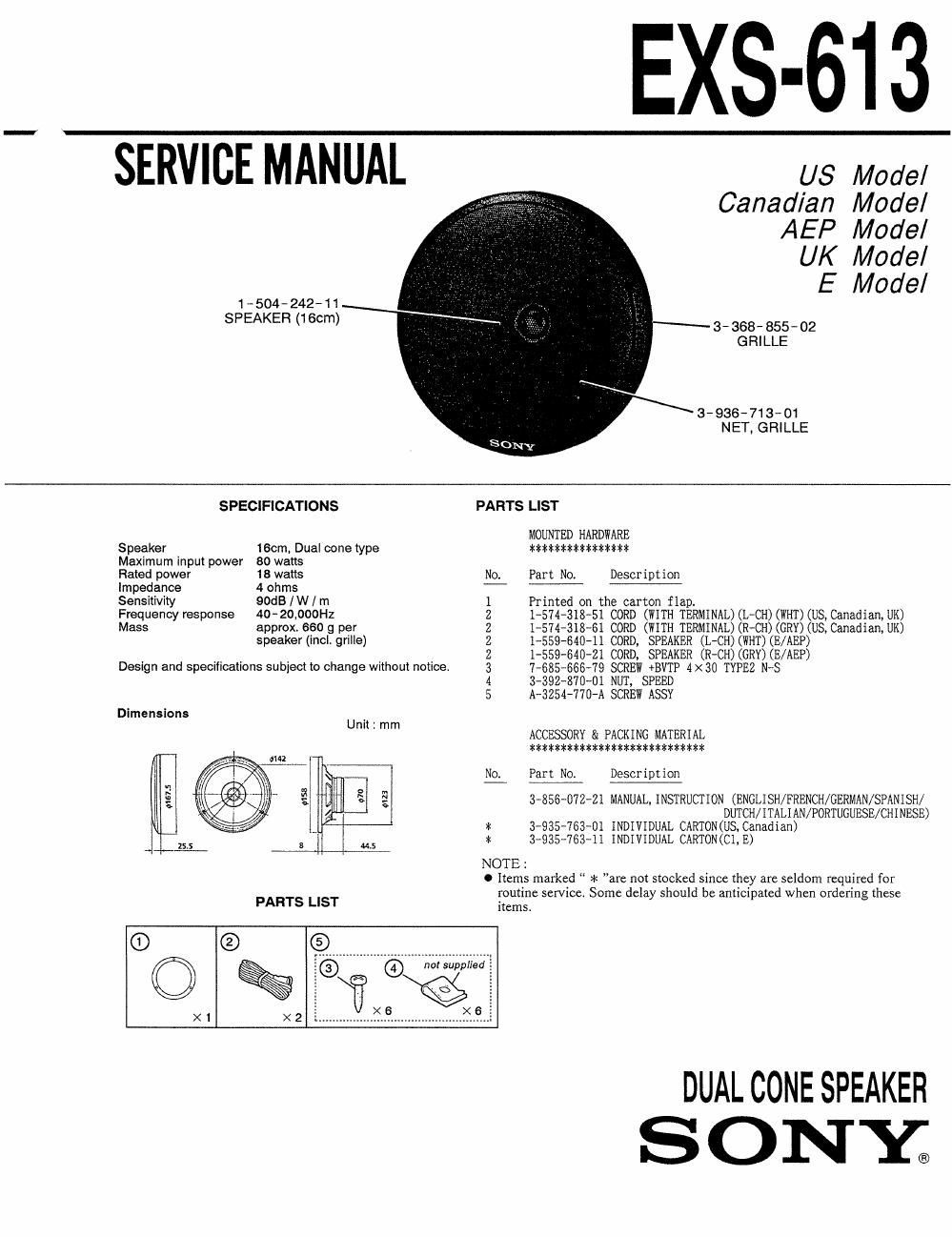

Page 1

EXS-613

SERVICE MANUAL

1- 504- 242-11
SPEAKER (16cm)

US Model
Canadian Model
AEP Model

UK Model

E Model

3- 368- 855- 02
GRILLE

3-936-713~01
NET, GRILLE

SPECIFICATIONS

Speaker 16cm. Dual cone type
Maximum Input power 80 watts

Rated power 18 wans
Impedance 4 ohms
Sensitivity 90dB [W I m
Frequency response 40-2090on
Mass approx. 660 g per

speaker (incl. grille)

Design and specificaiions subject to change without notice.

Dimensions _
Unit: mm

$70
0123

15.5 a I 44.5

PARTS LIST

MOUNTED HARDWARE
******it*¥#*****
N Part No. Description

1 Printed on the carton flap.

2 1-574-318-51 CORD (WITH TERMINAL) (L~CH) (WHT) (US, Canadian. UK)
2 I<574-318-61 CORD (WITH TERMINAL) (R-CH) (GRY) (US. Canadian. UK)
Z 1-559-640-11 CORD, SPEAKER (L-CH)(WIIT)(E/AEP)

Z 1659-64041 CORD, SPEAKER (R-CH)(GRY)(E/AEP)

3 7685-666-79 SCREW +BVTP 4X30 TYPEZ N-S

4 3-392-870-01 NUT, SPEED

5 A43254-770-A SCREW ASSY

ACCESSORY & PACKING MATERIAL
x*x********x********z*****t*
No. Part No. Description

3-856-072-21 MANUAL, INSTRUCTION (ENGLISH/FRENCH/GERMAN/SPANISH/
DUTCH/ ITALI AN/ PORTUGUESE/ CHI NESE)

1K 3-935-763-01 INDIVIDUAL CARTOMUS, Canadian)
* 3-935-763'11 INDIVIDUAL CARTOMCI, E)
NOTE:

0 Items marked * are not stocked since they are seldom required for
routine service Some delay should be anticipated when ordering these
items.

DUAL CONE SPEAKER
S 0 NY;

Page 2

Mounting .

Connections

Gray com black swiped

Len sneaker

Fllghl speaker

wane cord black sxnpea

0 O 0

H H

Power amplifier elc.

flame me glue nel.

suck smiled cold

Bray or while oovd

Gulls

Dom panel

Push me edges ol me grille well.

EW- Grille rm

:6?

Mow lo remove Ibo grille net.

9-923-513-1 1

Sony Corporation
Moblle Electronics Company

*2-

English

9600204391 D

Printed in Japan

©1996.3

Published by Home A&V Products DIV.
Qualiiy Englneerlng Dept.
