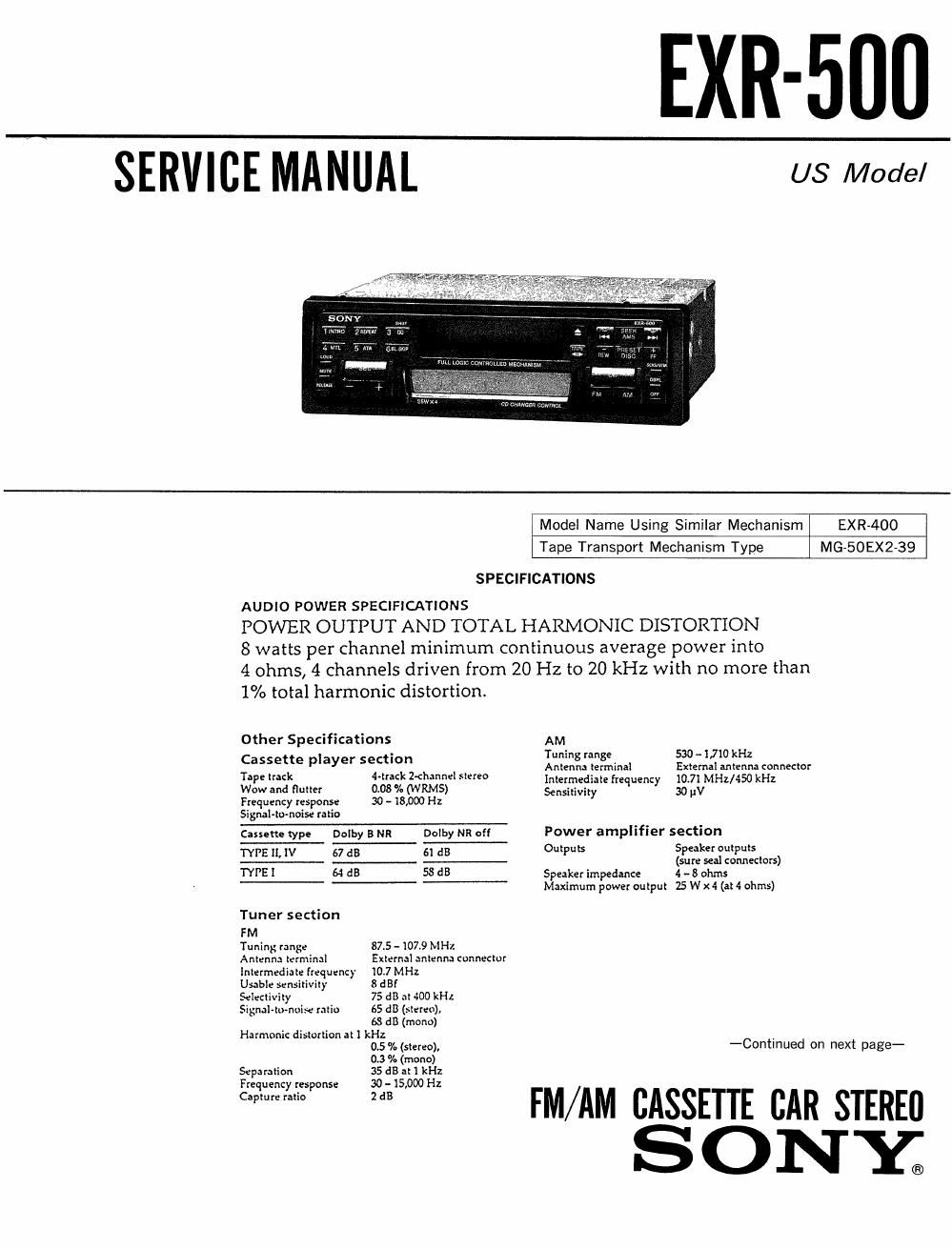

Page 1
EXR-5IJU
SERVICE MANUAL
US Model
Model Name Using Similar Mechanism EXR-400
Tape Transport Mechanism Type MG-50EX2-39
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
8 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than
1% total harmonic distortion.
other Specifications
Cassette player section
Tape track 4-track Z-channel stereo
Wow and flutter 0.08 % (WKMS)
Frequency response 30 - 13,000 Hz
Signal-tu-noise ratio
Cassette type Dolby 5 NR Dolby NR off
TYPE II, N 67 dB 61 dB
TYPE I 64 dB 58 dB
Tuner section
FM
Tuning range 87.5 - 1079 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 8 am
Selectivity 75 dB at 400 kHz
Signalvtn-noise ratio 65 dB (stereo)r
63 dB (mono)
Harmonic distortion at I kHz
0.5 % (stereo),
0.3% (mono)
Separation 35 dB at I kHz
Frequency response 30 - 15,000 Hz
Capture ratio 2 dB
AM
Tuning range 530- 1710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.71 MHz/450 kHz
Sensitivity 30 pV
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 - 8 ohms
Maximum power output 25 W x4 (at 4 ohms)
-Continued on next page-
FM/AM CASSETTE BAR STEREO
S ON Yr
