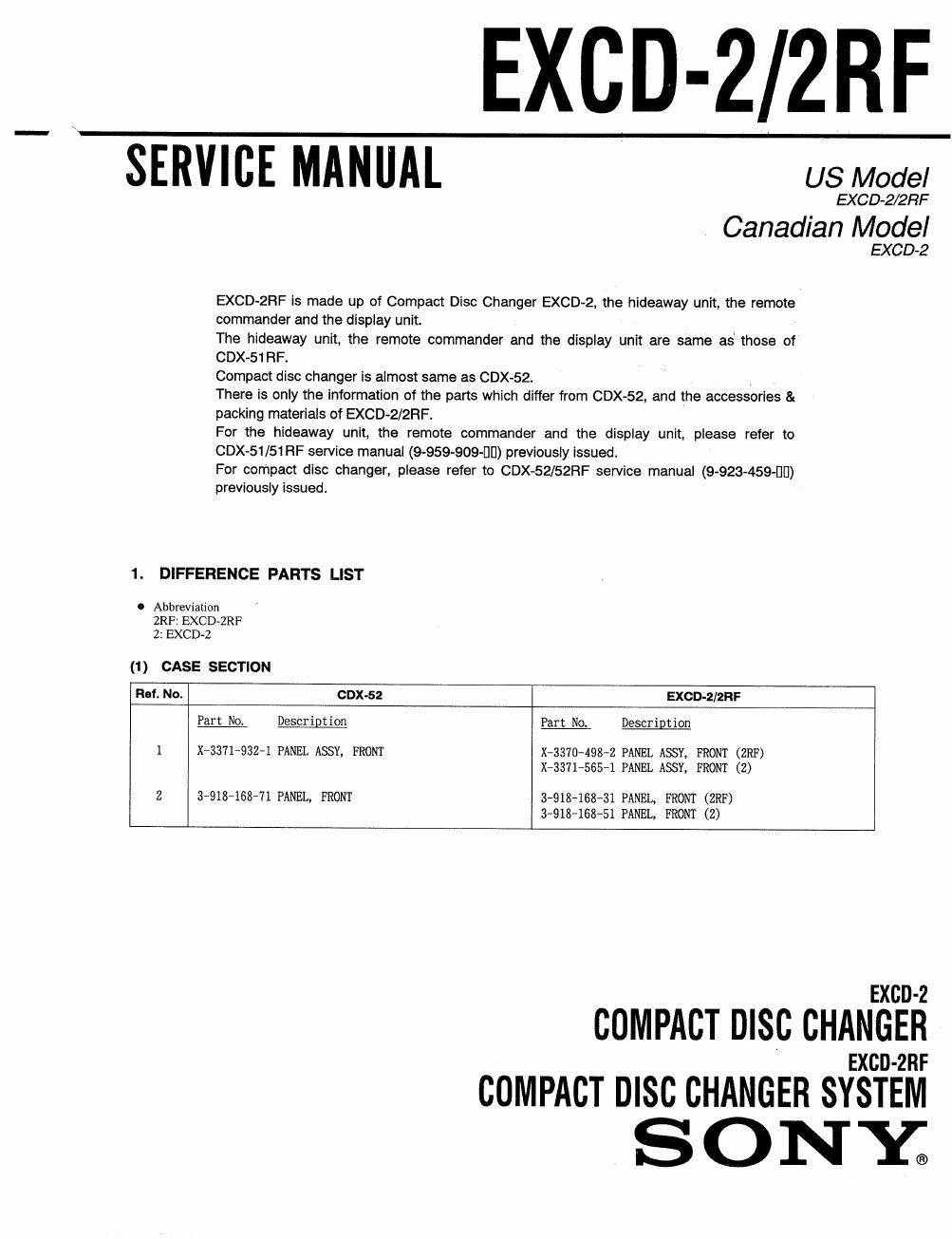

Page 1

EXCD-2/2RF

SERVICE MANUAL

US Model

EXCD-2/2FiF
Canadian Model
EXCD-2
EXCD-2RF is made up of Compact Disc Changer EXCD-2. the hideaway unit, the remote
commander and the display unit.
The hideaway unit, the remote commander and the display unit are same as those of
CDX-51FlF.
Compact disc changer is almost same as CDX-52.
There is only the information of the parts which differ from CDX-52, and the accessories &
packing materials of EXCD-2/2RF.
For the hideaway unit, the remote commander and the display unit, please refer to
CDX-51/51RF service manual (9-959-909-DIJ) previously issued.
For compact disc changer, please refer to CDX~52152RF service manual (9-923-459-UD)
previously issued
1. DIFFERENCE PARTS LIST
I Abbreviation
ZRF: EXCD-ZRF
2: EXCD-Z
(1) CASE SECTION
Flat. Nor COX-52 EXCD-Z/zRF
Part No. Description Part No. Description
1 X73371-93Z-1 PANEL ASSY, FRONT X-3370-498-2 PANEL ASSY, FRONT (ZRF)
X-3371-565~1 PANEL A$Y, FRONT (Z)
Z 3-918v168-71 PANEL, FRONT 3-918-168-31 PANEL, FRONT (2RF)
3913-168-51 PANEL. FRONT (Z)

COMPACT DISC CHANGER SYSTEM

SONY;

Page 2

2. ACCESSORIES & PACKING MATERIALS

0 Abbreviation
ZRF: EXCD-ZRF
2: EXCD~2

Ref. No. Part No. Descrigtion

1473-11241 REMOTE COMMANDER (ZRF)

1-590-519-21 OORD (WITH CONNECTOR) (SONY BUS)

1-690~743-11 CORD, CONNECTION (PIN PLUG)

3-800-001-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH) (ZRF)
3'800700211 MANUAL, INSTRUCTION, INSTALL (ENGLISH FRENCH) (ZRF)

3-810-521-11MANUAL, INSTRUCTION (ENGLISH, FRENCH) (2)
4-875~574~00 SHEET, PROTECTION
X33684306-2 MAGAZINE (450) ASSY

Sony Corporatlon
9-923470-1 1 Moblle Electronlcs Company

__2._

English
96A050413-1D
Printed in Japan
© 1996 1

Published by Home A&V Products DIV.
Quality Engineering Dept.
