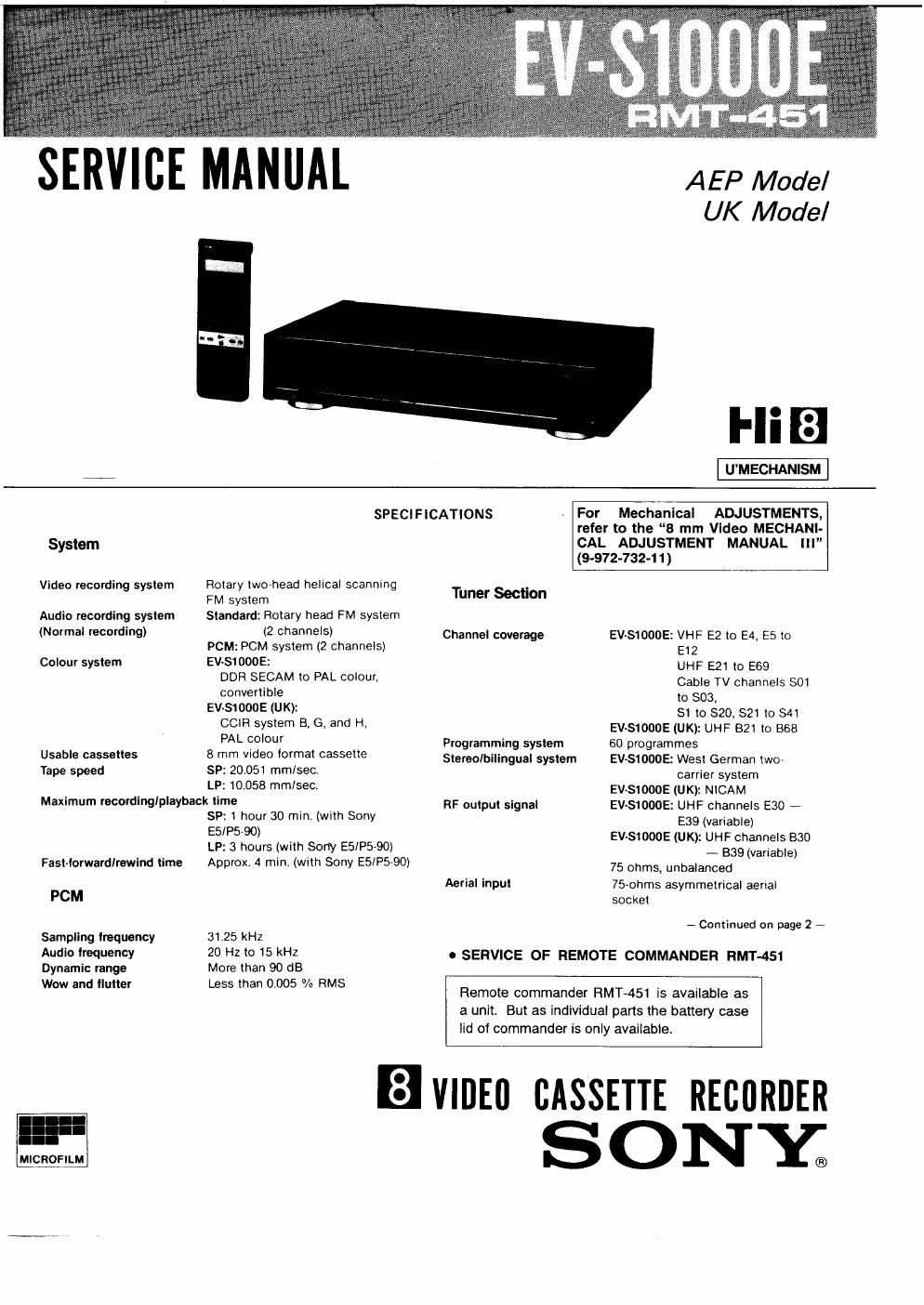

Page 1
System
Video recording system
Audio recording system
(Normal recording)
Colour system
Usable cassettes
Tape speed
SPECIFICATIONS
Rotary two-head helical scanning
FM system
Standard: Rotary head FM system
(2 channels)
PCM: PCM system (2 channels)
EV-S1000E:
DDR SECAM to PAL colour,
convertible
EV~S1000E (U K):
CCIR system B, G, and H,
PAL colour
8 mm video format cassette
SP: 20.051 mmlsec.
LP: 10.058 mmlseo.
Maximum recording/playback time
Fast-lorwardlrewind time
PCM
Sampling trequency
Audio trequency
Dynamic range
Wow and tlutier
SP: 1 hour 30 min. (with Sony
E5/P5-90)
LP: 3 hours (with Sony E5/P5-90)
Approx. 4 min (with Sony E5/P5790)
31.25 kHz
20 Hz to 15 kHz
More than 90 dB
Less than 0.005 % RMS
A EP Model
UK Model
l-liE]
UMECHANISM
For
refer to the 8 mm Video MECHANl-
CAL ADJUSTMENT MANUAL Ill
(9-972-732-1 1 )
Mechanical ADJUSTMENTS,
Tuner Section
Channel coverage
Programming system
Stereolbilingual system
RF output signal
Aerial input
EV-S1000E: VHF E2 to E4, E5 to
E12
UHF E21 to E69
Cable TV channels 801
to $03,
51 to $20, 821 to 841
EV-S1000E (UK): UHF 821 to 868
60 programmes
EV-St 000E: West German two-
carrier system
EV-StOOOE (UK): NICAM
EV-S1000E: UHF channels E30 -
E39 (variable)
EV-81000E(UK): UHF channels 830
- 339 (variable)
75 ohms, unbalanced
75-ohms asymmetrical aerial
socket
- Continued on page 2 -
O SERVICE OF REMOTE COMMANDER RMT-451
Remote commander EMT-451 is available as
a unit. But as individual parts the battery case
lid of commander is only available.
Evmro CASSETTE RECORDER
MICROEILM
SONY;
