Sony ecm z 60 service manual
This is the 4 pages manual for sony ecm z 60 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

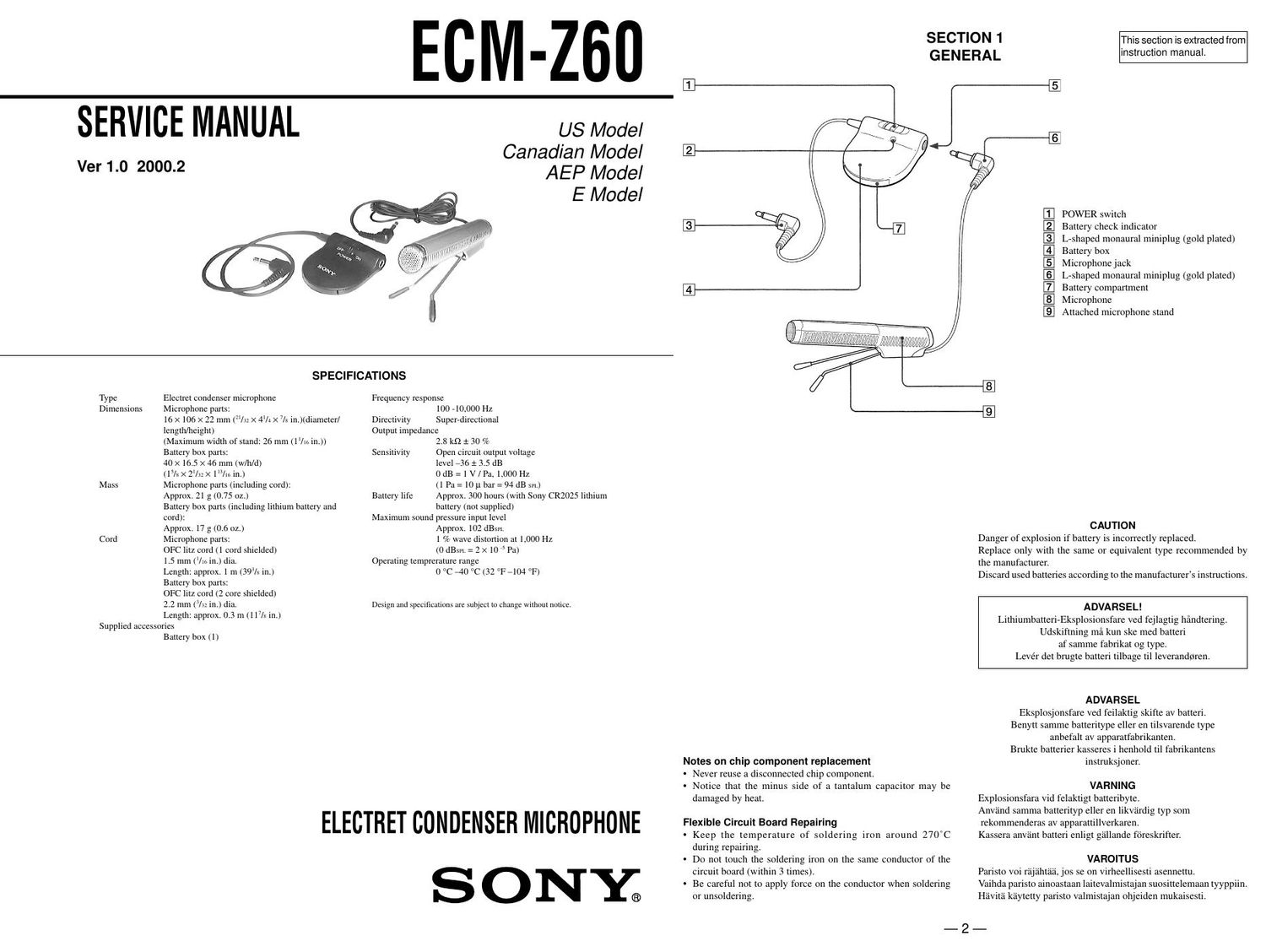

Extracted text from sony ecm z 60 service manual (Ocr-read)
Page 1
ECM-Z60 SECTION 2 DIAGRAMS 2-1. SCHEMATIC DIAGRAM - 3 - 4 - Note on Schematic Diagram: - All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. - All resistors are in Ω and 1/4 W or less unless otherwise specified. - % : indicates tolerance. -C: panel designation. - Signal path. F: MIC TOTAL CURRENT : 0.21mA LITHIUM BATTERY UDZ4.7B 2-2. PRINTED WIRING BOARD AMP BOARD (SIDE B) UNIT BOARD(SIDE B) UNIT BOARD (SIDE A) AMP BOARD (SIDE A) 1-671-999-11 (11) 1-671-999- 11 (11) 1-672-000-11 (11) 1-672-000-11 (11) J1 MIC IN SW1 POWER D10 D3 R13 JC1 D1 C14 C1 C2 R1 D2 R3 ON OFF SW1 (MIC OUT)MINI PLUG (MIC OUT)MIC1 MINI PLUG LITHIUM BATTERY CR-2025 3V MIC UNIT BATTERY CHECK LAMP 16 12 A B C D E F G H34567 Note on Printed Wiring Board: -X: parts extracted from the component side. - a : Through hole. -b: Pattern from the side which enables seeing. Caution: Pattern face side: Parts on the pattern face side seen from (Conductor B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component A) the parts face are indicated. Ref. No. Location D1 F-2 D2 F-2 D3 D-2 D10 B-4 - Semiconductor Location
Page 2
- 5 - 6 - SECTION 3 EXPLODED VIEWS NOTE: --XX, -X mean standardized parts, so they may have some differences from the original one. -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.-The mechanical parts with no reference number in the exploded views are not supplied. -Aaccessories and packing materials are given in the last of this parts list. 3-1. BATTERY BOX SECTION3-2. MICROPHONE SECTION 51 MIC1 not suppliednot supplied 53 58 54 5952 55 56 57 #1 58 60 126 7 8 9 10 11 12 45 #1 not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 1-790-104-11 CORD,MICROPHONE (1 CORE) 2 2-545-592-01 BUSHING 4 X-2542-165-1 CASE(UPPER) ASSY, BATTERY 5 2-545-588-01 KNOB,SWITCH *6 A-4542-610-A AMP BOARD, COMPLETE 7 2-545-589-01 TERMINAL, PLUS8 2-545-590-01 TERMINAL, MINUS 9 2-545-599-01 SHEET, BLIND 10 2-545-586-01 CASE(LOWER), BATTERY 11 2-545-587-01 HOLDER, BATTERY 12 2-545-953-01 LABEL, MODEL NUMBER #1 7-685-103-19 SCREW +P 2X5 TYPE2 NON-SLIT 51 X-2542-196-1 CAPASSY, FRONT 52 2-545-947-01 CAP,REAR 53 2-545-944-01 CASE(R) 54 2-545-943-01 CASE(L) 55 2-545-951-01 FOOT, RUBBER 56 1-791-753-11 CORD, MICROPHONE57 2-545-948-01 HOLDER, STAND 58 2-545-952-01 SCREEN, CASE 59 X-2542-197-1 STAND ASSY *60 1-671-999-11 UNIT BOARD MIC1 1-418-258-11 MICROPHONE UNIT #1 7-685-103-19 SCREW +P 2X5 TYPE2 NON-SLIT
