Extracted text from sony ecm 737 c service manual (Ocr-read)

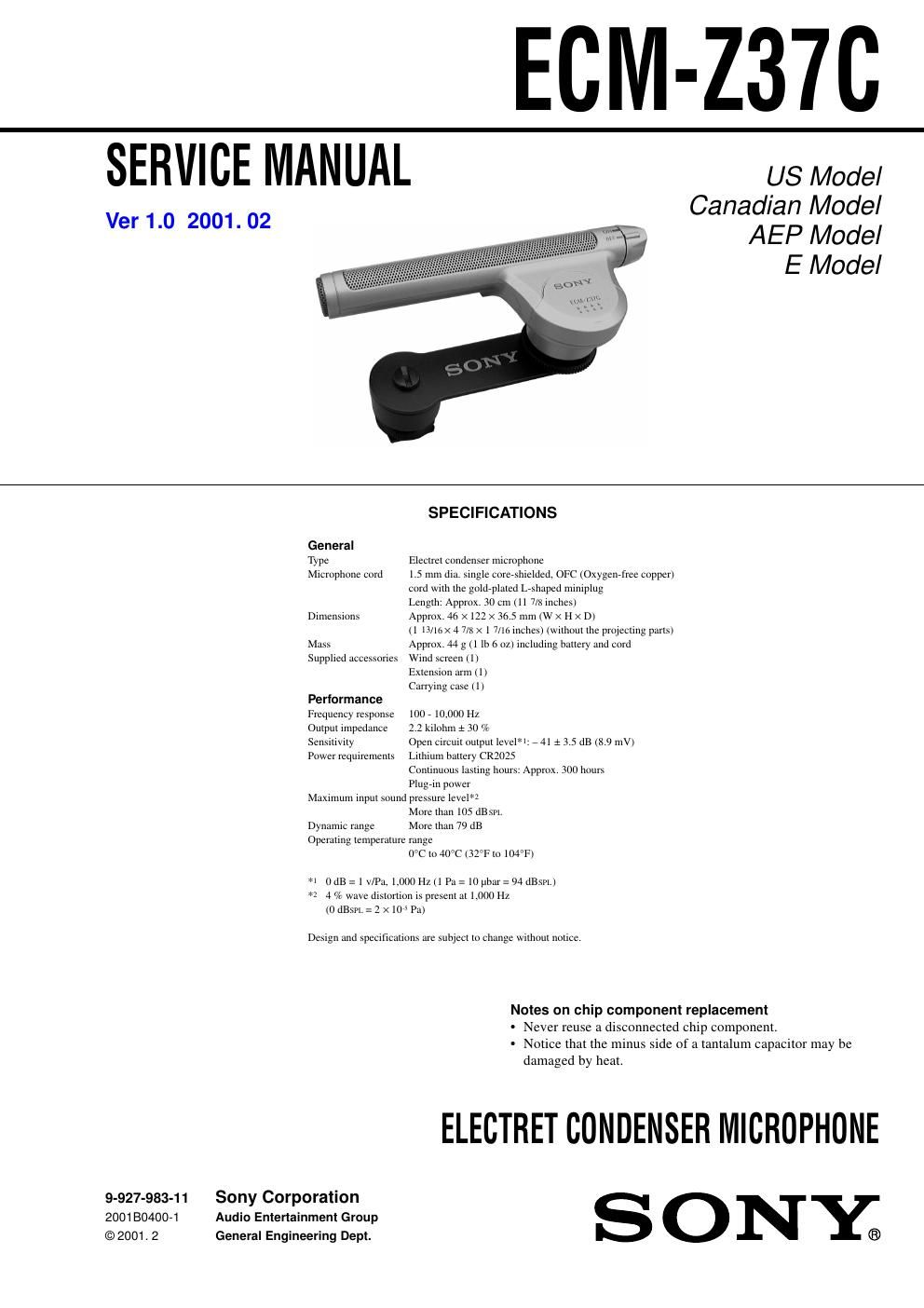

Page 1
2 ECM-Z37C SECTION 1 GENERAL This section is extracted from instruction manual.
Page 2
3 ECM-Z37C SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 2-1. CASE, UPPER ONOFF 6 grille assy, front 0 case, lower 8 B 1.7 x 7 4 P 1.4 x 2.5 7 lid battery case 9 case, upper 2 PTPWH 2 x 4 1 cap, switch 3 knob, switch 5 cap, rearclaws claws knob, switch cap, switchSection view Note for installing the cap, switch : Fit the claws. claws claws Push and remove. Section view Spread and remove. lid battery case Note for installing the knob, switch : Position the switch knob with the AMP board switch (SW1) as shown below. 2-2. MICROPHONE UNIT, AMP BOARD LED 1 microphone unitNote for installing the microphone unit: Arrange the lead wires not to be put on the LED on the AMP board. microphone unit switch (SW1) Note for installing the AMP board: Push the AMP board switch (SW1) down to position the board with the switch knob. 3 P 1.4 x 2.5 4 AMP board2 Unsolder the lead wires. 5 Unsolder the lead wires. Note: Pay attention to drop of the compression spring and stainless hall when removing the AMP board.
