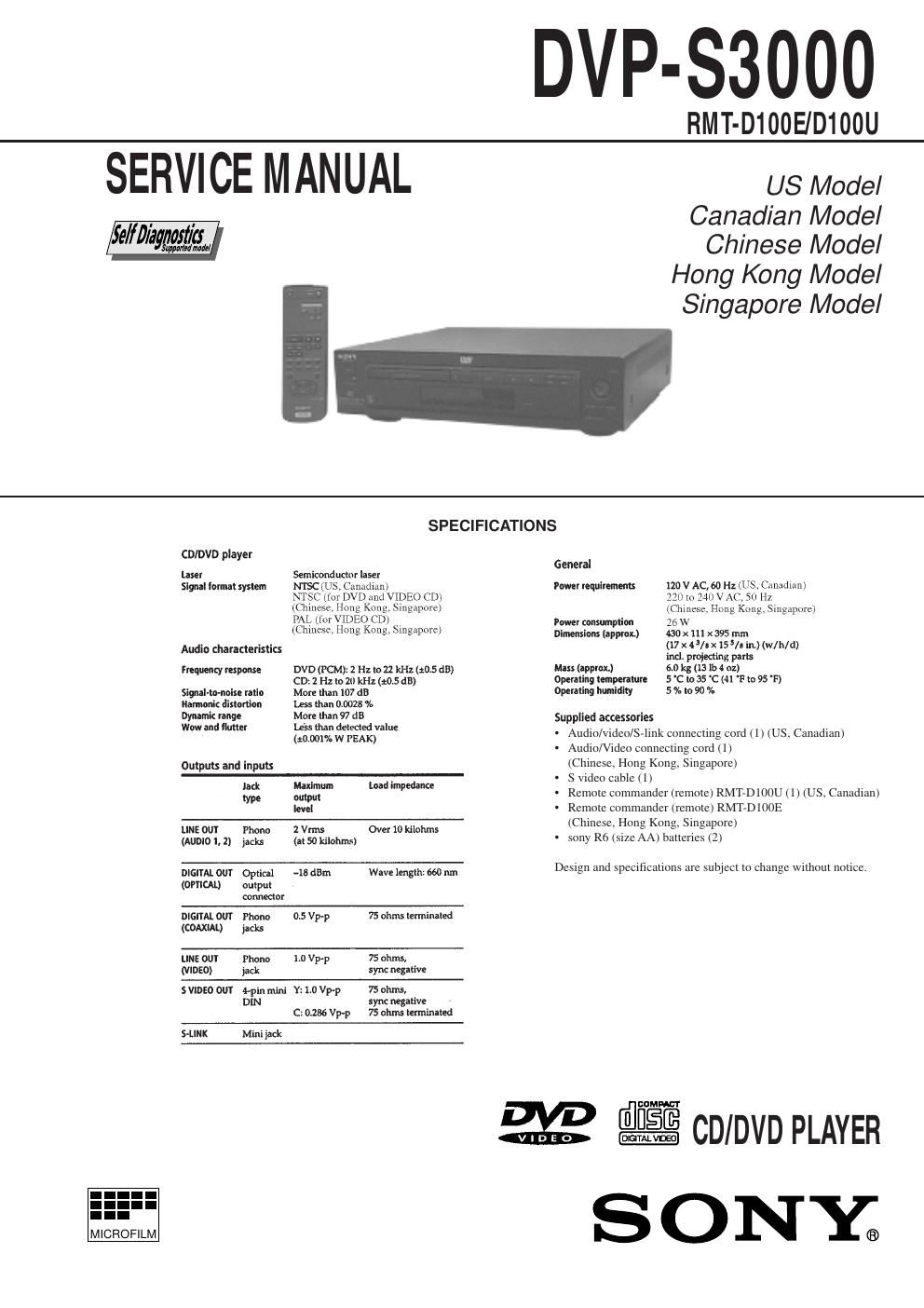

Sony dvps 3000 service manual
This is the 81 pages manual for sony dvps 3000 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony dvps 3000 service manual (Ocr-read)
Page 1
Ð 2 Ð SAFETY CHECK-OUT LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers' instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indica- tion is 0.75V, so analog meters must have an accurate low- voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex- amples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suit- able. (See Fig. A) 1. Check the area of your repair for unsoldered or poorly-sol- dered connections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are ÒpinchedÓ or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transis- tors, that were installed during a previous repair. Point them out to the customer and recommend their replacement. 4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recom- mend their replacement. 5. Check the line cord for cracks and abrasion. Recommend the replacement of any such line cord to the customer. 6. Check the B+ voltage to see it is at the values specified. 7. Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. Fig. A Using AC voltmeter to check AC leakage After correcting the original service problem, perform the following safety checks before releasing the set to the customer: 1.5 k W 0.15 µF AC Voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY. WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJEC- TIVE LENS ON THE OPTICAL PICK-UP BLOCK. CAUTION: The use of optical instrument with this product will increase eye hazard. CAUTION Use of controls or adjustments or performance procedures other than those specified herein may result in hazardous radiation exposure.
Page 2
Ð 3 Ð Section Title Page TABLE OF CONTENTS Service Note ............................................................................. 4 1. GENERAL This Player Can Play the Following Discs ....................... 1-1 Getting Started ............................................................... 1-1 Basic Operations ............................................................ 1-2 Playing Discs in Various Modes ...................................... 1-8 Setting and Adjustments ................................................. 1-10 Additional Information ..................................................... 1-12 2. DISASSEMBLY 2-1. Top Case Removal .......................................................... 2-1 2-2. Front Panel Removal ...................................................... 2-1 2-3. AU-201, 203 Board Removal .......................................... 2-1 2-4. MB-80 Board Removal .................................................... 2-1 2-5. MD Block AssÕy Removal ................................................ 2-2 2-6. Try Removal .................................................................... 2-2 2-7. Optical Pick-up Removal ................................................. 2-2 2-8. TT-40 Board Removal ..................................................... 2-2 2-9. Internal Views ................................................................. 2-3 2-10. Circuit Boards ................................................................. 2-4 3. BLOCK DIAGRAMS 3-1. Overall Block Diagram 1 (RF, Servo, Audio Power) ........ 3-1 3-2. Overall Block Diagram 2 (Signal Process) ...................... 3-6 3-3. RF/Servo Block Diagram ................................................ 3-11 3-4. Data Process Block Diagram .......................................... 3-14 3-5. Video Block Diagram ...................................................... 3-16 3-6. System Control Block Diagram ....................................... 3-21 3-7. Audio Block Diagram ...................................................... 3-24 3-8. Mode Control Block Diagram .......................................... 3-27 3-9. Power Supply Block Diagram .......................................... 3-30 4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1. Frame Schematic Diagram ............................................. 4-1 4-2. Printed Wiring Boards and Schematic Diagrams ............ 4-5 TT-40, LM-56 Printed Wiring Boards ............................... 4-5 TT-40, LM-56 Schematic Diagram .................................. 4-7 MB-80 Printed Wiring Board ........................................... 4-12 MB-80 (Interface) Schematic Diagram ............................ 4-17 MB-80 (CPU) Schematic Diagram .................................. 4-21 MB-80 (Drive Control) Schematic Diagram ..................... 4-25 MB-80 (DVD Data Process) Schematic Diagram ............ 4-28 MB-80 (CD ROM Decode) Schematic Diagram .............. 4-31 MB-80 (MPEG Video Decode) Schematic Diagram ........ 4-35 MB-80 (Video EQ, Letter Box, Sub Picture) Schematic Diagram ........................................................ 4-39 MB-80 (Audio Decode) Schematic Diagram ................... 4-42 MB-80 (Video) Schematic Diagram ................................ 4-45 MB-80 (Digital Servo) Schematic Diagram ..................... 4-51 MB-80 (RF Block) Schematic Diagram ........................... 4-55 MB-80 (Drive) Schematic Diagram ................................. 4-59 FP-611/619, PW-116/117 Printed Wiring Boards ............ 4-63 FP-611/619, PW-116/117 Schematic Diagram ................ 4-65 AU-201/203, PS-408/413 Schematic Diagram ............... 4-67 AU-201/203, PS-408/413 Printed Wiring Boards ............ 4-71 SR-740, SUB Printed Wiring Boards and Schematic Diagram ......................................................... 4-74 SR-745, SUB Printed Wiring Boards and Schematic Diagram ......................................................... 4-77 Section Title Page 5. IC PIN FUNCTION DESCRIPTION 5-1. Interface Control Pin Function (MB-75 Board IC021) ..... 5-1 5-2. Drive Control Pin Function (MB-75 Board IC136) ........... 5-2 5-3. Extended Output Port 0 (MB-75 Board IC147) ............... 5-3 5-4. Extended Output Port 1 (MB-75 Board IC148) ............... 5-3 5-5. Extended Output Port 2 (MB-75 Board IC149) ............... 5-3 5-6. Extended Output Port 3 (MB-75 Board IC150) ............... 5-3 5-7 D/A Converter (MB-75 Board IC722) .............................. 5-3 5-8 System Control Pin Function (MB-75 Board IC090) ....... 5-4 6. TEST MODE 6-1. Starting up Test Mode ..................................................... 6-1 6-2. Syscon Diagnosis ........................................................... 6-1 6-3. Drive Auto Adjustment .................................................... 6-10 6-4. Drive Manual Operation .................................................. 6-13 6-4-1. Drive Manual Operation wnu creen ........................... 6-13 6-4-2. Disc Type ................................................................... 6-13 6-4-3. Manual Control 1 ....................................................... 6-13 6-4-4. Manual Control 2 ....................................................... 6-14 6-4-5. Manual Control 3 ....................................................... 6-14 6-4-6. Manual Adjust 1 ......................................................... 6-15 6-4-7. Manual Adjust 2 ......................................................... 6-15 6-4-8. Auto Adjust ................................................................ 6-15 6-4-9. Check ......................................................................... 6-16 6-5. Emergency History ......................................................... 6-18 6-6. Other Checks .................................................................. 6-18 7. ELECTRICAL ADJUSTMENT 7-1. Power Supply Check ....................................................... 7-1 1. PS-408/413 Board .......................................................... 7-1 2. MB-80 Board ................................................................... 7-1 7-2. +5.2 V Adjustment ........................................................... 7-1 7-3. Adjustment of System Control ........................................ 7-2 1. 27 MHz Free Run ............................................................ 7-2 2. 22 MHz Adjustment ........................................................ 7-2 3. 33 MHz Check ................................................................ 7-2 4. 33 MHz Lock Check ........................................................ 7-2 5. 24 MHz Adjustment ........................................................ 7-3 6. 36 MHz Check ................................................................ 7-3 7. 36 MHz Lock Check ........................................................ 7-3 8. 16 MHz Check ................................................................ 7-3 7-4. Adjustment of Video System 1. Video Level Adjustment .................................................. 7-4 2. S-Terminal Output Check ................................................ 7-4 3. Checking Composite Video Output B-Y .......................... 7-4 4. Checking Composite Video Output R-Y .......................... 7-5 5. Checking Composite Video Output Y .............................. 7-5 6. Checking S Video Output S-C ........................................ 7-5 7. Checking S Video Output DC Level ................................ 7-5 7-5. Adjustment Related Parts Arrangement ......................... 7-6 8. REPAIR PARTS LIST 8-1. Exploded Views .............................................................. 8-1 8-1-1. Case Assembly .......................................................... 8-1 8-1-2. Front Panel Assembly ................................................ 8-2 8-1-3. Chassis Assembly ..................................................... 8-3 8-1-4. DVD Mechanism Chassis Assembly (1) .................... 8-4 8-1-5. DVD Mechanism Chassis Assembly (2) .................... 8-5 8-2. Electrical Parts List ......................................................... 8-6
