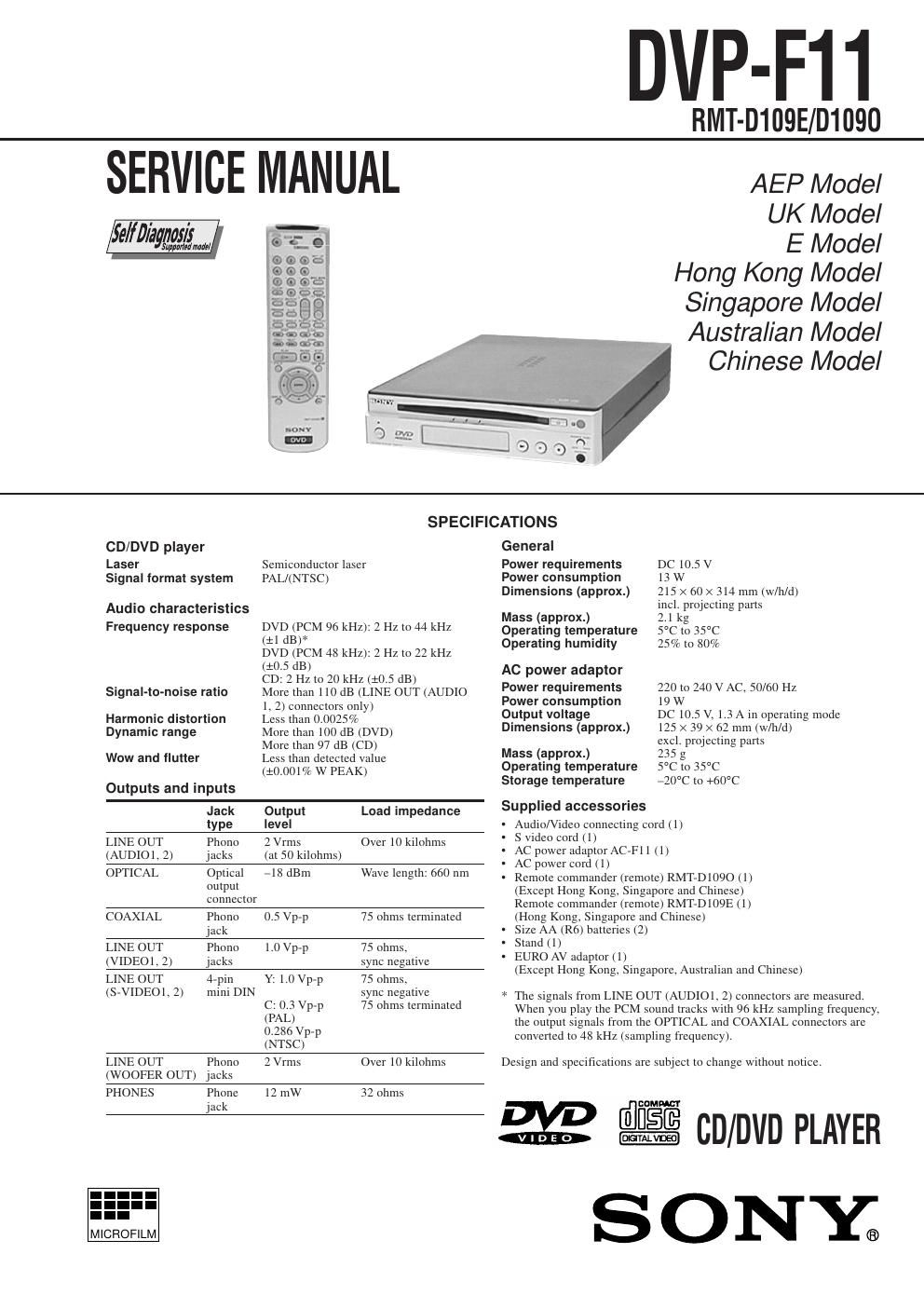

DVP-F11

RMT-D109E/D1090

SERVICE MANUAL

lei/fl/igmm

61:4: 96):):

flag

AEP Model

UK Model

E Model

Hong Kong Model
Singapore Model
Australian Model
Chinese Model

CD/DVD player

Laser
Signal format system

Audio characteristics
Frequency response

Signal-to-noise ratio

Harmonic distortion
Dynamic range

Wow and flutter

Outputs and inputs

SPECIFICATIONS

Semiconductor laser
PAL/(NTSC)

DVD (PCM 96 kHz): 2 Hz to 44 kHz
(:1 dB)*

DVD (PCM 48 kHz): 2 Hz to 22 kHz
(10.5 dB)

CD: 2 Hz to 20 kHz (20.5 dB)

More than 110 dB (LINE OUT (AUDIO
1, 2) connectors only)

Less than 0002570

More than 100 dB (DVD)

More than 97 dB (CD)

Less than detected value

($000192 W PEAK)

General

Power requirements
Power consumption
Dimensions (approx.)

Mass (approx.)
Operating temperature
Operating humidity

AC power adaptor
Power requirements
Power consumption
Output voltage
Dimensions (approx.)

Mass (approx.)
Operating temperature
Storage temperature

DC 10.5 V

13 W

215 X 60 X 314 mm (wlhld)
incl. projecting parts

2.1 kg

5°C to 35°C

25% to 80%

220 to 240 V AC, 50/60 Hz

19 W

DC 10.5 V. 1.3 A in operating mode
125 X 39 X 62 mm (wlhld)

excl. projecting parts

235 g

5°C to 35°C

-20°C to +60°C

Jack Output Load impedance
type level
LINE OUT Phono 2 Vrms Over 10 kilohms
(AUDIOl, 2) jacks (at 50 kilohms)
OPTICAL Optical -18 dBm Wave length: 660 nm
output
connector
COAXIAL Phono 0.5 Vp-p 75 ohms terminated
jack
LINE OUT Phono 1.0 Vp-p 75 ohms,
(VIDEOI, 2) jacks sync negative
LINE OUT 4-piri Y: 1.0 Vp-p 75 ohms,
(S-VIDEOl, 2) mini DIN sync negative
C: 0.3 Vp-p 75 ohms terminated
(PAL)
0.286 Vp-p
(NTSC)
LINE OUT Phono 2 Vrms Over 10 kilohms
(WOOFER OUT) jacks
PHONES Phone 12 mW 32 ohms
jack

.-
MICROFILM

Supplied accessories

Audio/Video connecting cord (1)

S Video cord (1)

AC power adaptor AC-Fll (1)

AC power cord (1)

Remote commander (remote) RMT-DIOQO (1)
(Except l-Iong Kong. Singapore and Chinese)
Remote commander (remote) RMT-DIOQE (1)
(Hong Kong, Singapore and Chinese)

I Size AA (R6) batteries (2)

I Stand (1)

I EURO AV adaptor (1)

(Except l-Iong Kong, Singapore, Australian and Chinese)

* The signals from LINE OUT (AUDIOI, 2) connectors are measured.
When you play the PCM sound tracks with 96 kHz sampling frequency,
the output signals from the OPTICAL and COAXIAL connectors are
converted to 48 kHz (sampling frequency).

Design and specifications are subject to change without notice.

% CD/DVD PLAYER
S 0 NE

Page 2

WARNINGII

WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION,
BE SURE TO OBSERVE FROM A DISTANCE OF
MORE THAN 25 cm FROM THE SURFACE OF THE
OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.

CAUTION:
The use of optical instrument with this product will increase eye
hazard.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous rae
diation exposure.

ADVAFISEL : smut) no u vma wrnsmwm VED Ammo.
wool UDSEI'TELEE ion 5 m

VORSICHT :sme we £1496me wsmm
ween mam DEOFFNET. "an um um AUSSETIEN

VAROl : Mmu u umnou AVATIAEBSA om umm

usznstrsitmz. Au ursc smaszw

VA RN ING: smua ocn osvmioo masasmmu NM DENNA
DEL An DPVNAD. MIR ARV

ADVARSEL: stuo co um Luau-mum n»: ma
AWL: mm swam ma smALEN

umrmm
ovum A xozvm LEZZAS

Mew
WEL-
LUOKAN 1 LASERLAITE
KLASS1 LASERAPPARAT

CLASS 33 LASER

LUOKAN 3B LASER
LASERKLASS 3B

SAFETY CHECK-OUT

After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorlyAsole
dered connections. Check the entire board surface for solder
splashes and bridges.

2. Check the interbuard wiring to ensure that no wires are
pinched" or contact high-wattage resistors.

3. Look for unauthorized replacement parts, particularly transise

tors, that were installed during a previous repair. Point them
out to the customer and recommend their replacement.

Look for parts which, though functioning, show obvious signs
of deterioration. Point them out to the customer and recom-
mend their replacement.

Check the B+ voltage to see it is at the values specified.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

-2-
