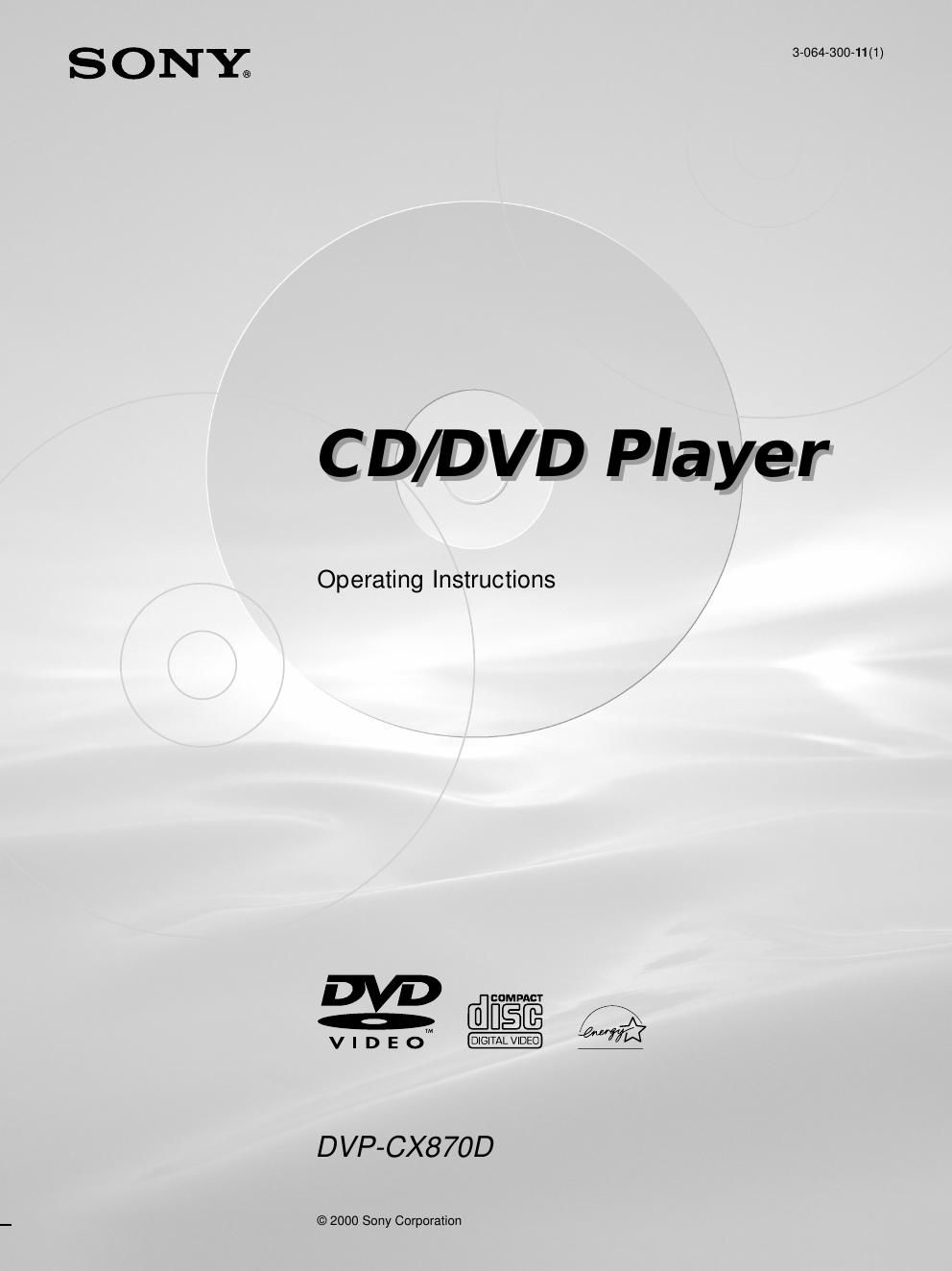

Sony dvpcx 870 d owners manual
This is the 96 pages manual for sony dvpcx 870 d owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony dvpcx 870 d owners manual (Ocr-read)
Page 1
2 Welcome! Thank you for purchasing this Sony CD/ DVD Player. Before operating the unit, please read this manual thoroughly and retain it for future reference. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. This label is located on the Laser protective housing inside the enclosure. This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. For customers in the U.S.A Owners Record The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. DVP-CX870D Serial No.______________ CAUTION You are cautioned that any change or modifications not expressly approved in this manual could void your authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.
Page 2
3 T ABLE OF CONTENTS About This Manual 4 This Player Can Play the Following Discs 4 Precautions 6 Notes About the Discs 6 Getting Started 7 Unpacking 7 TV Hookups 8 Receiver (Amplifier) Hookups 10 5.1 Channel Surround Hookups 12 Selecting the Language for the On-Screen Display 14 Operation Sound Effects (Sound Feedback) 15 Inserting Discs 16 Playing Discs 19 Playing Discs 19 Playing Side B (FLIP) 21 Playing at Various Speeds/Frame by Frame 22 Resuming Playback from the Point Where You Stopped the Disc (Resume Play) 23 Using the DVDs Menu 24 Playing VIDEO CDs with PBC Functions (PBC Playback) 25 Using the Front Panel Display 26 Displaying the Disc Information (Disc Explorer) 28 Filing Discs in the Folder (Disc Explorer - File Mode) 30 Labeling Discs and Folders (Disc Explorer - Edit Mode) 32 Sorting Discs (Disc Explorer - Sort Mode) 35 Using Various Functions with the Control Menu 37 Using the Control Menu Display 37 Control Menu Item List 39 Searching for a Disc/Title/Chapter/Track/Index/ Scene 40 Checking the Playing Time and Remaining Time 41 Selecting a Starting Point Using the Time Code 42 Viewing the Disc Information 43 Changing the Sound 43Displaying the Subtitles 45 Changing the Angles 46 Digital Cinema Sound Settings 47 Checking the Play Information 50 Locking Discs (Custom Parental Control) 51 Selecting the Disc Mode (1 Disc or All Discs) 53 Creating Your Own Program (Program Play) 53 Playing in Random Order (Shuffle Play) 56 Playing Repeatedly (Repeat Play) 57 Repeating a Specific Portion (A–B Repeat) 58 Adjusting the Playback Picture (Video Equalizer) 59 Enhancing the Playback Picture (Digital Video Enhancer) 60 Using the Quick Reference Screen (VIEWER) 61 Settings and Adjustments 63 Using the Setup Display 63 Setup Display Item List 65 Setting the Display Language or Sound Track (LANGUAGE SETUP) 66 Settings for the Display (SCREEN SETUP) 67 Custom Settings (CUSTOM SETUP) 68 Settings for the Sound (AUDIO SETUP) 73 Settings for the Speakers (SPEAKER SETUP) 75 Controlling Your TV or AV Receiver (Amplifier) with the Supplied Remote 78 Controlling the CD Changer (Mega Control) 80 Additional Information 82 Troubleshooting 82 Self-diagnosis function 85 Specifications 86 Glossary 87 Language Code List 89 Index to Parts and Controls 90 Index 94
