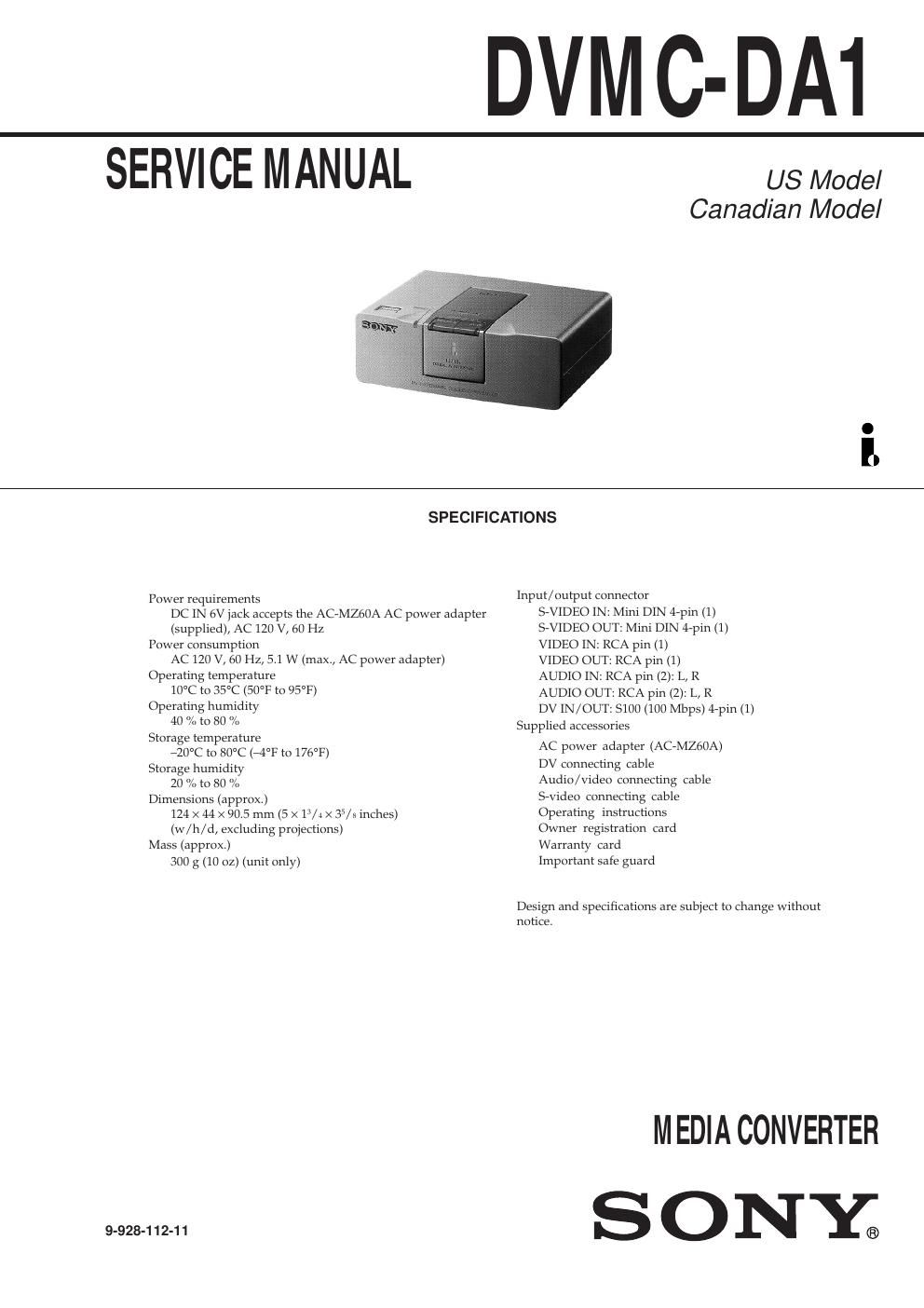

Sony dvmcda 1 service manual
This is the 43 pages manual for sony dvmcda 1 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony dvmcda 1 service manual (Ocr-read)
Page 1
Ñ 2 Ñ SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéSES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPƒMENTS PUBLIƒS PAR SONY. 1. GENERALááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááá 1-1 2. BLOCK DIAGRAMS 2-1. OVERALL BLOCK DIAGRAM áááááááááááááááááááááááááááááááááááá 2-1 2-2. POWER BLOCK DIAGRAM áááááááááááááááááááááááááááááááááááááááá 2-3 3. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS · SWX-22 (SWITCH) SCHEMATIC DIAGRAM ááááááááá 3-2 · SWX-22 (SWITCH) PRINTED WIRING BOARD áááá 3-3 · IFX-52 (MAIN : SIDE A) PRINTED WIRING BOARD áááááááááááááááááááááááááááááááááááááá 3-5 · IFX-52 (MAIN : SIDE B) PRINTED WIRING BOARD áááááááááááááááááááááááááááááááááááááá 3-7 · IFX-52 (J CORE) SCHEMATIC DIAGRAM áááááááááááááá 3-9 · IFX-52 (VFD) SCHEMATIC DIAGRAM ááááááááááááááááá 3-11 · IFX-52 (MECH CON) SCHEMATIC DIAGRAM áááá 3-13 · IFX-52 (HI) SCHEMATIC DIAGRAM ááááááááááááááááááááá 3-15 · IFX-52 (DC CON) SCHEMATIC DIAGRAM áááááááááá 3-17 · IFX-52 (AMP) SCHEMATIC DIAGRAM áááááááááááááááá 3-19 · IFX-52 (AGC) SCHEMATIC DIAGRAM áááááááááááááááá 3-21 · IFX-52 (AUDIO) SCHEMATIC DIAGRAM áááááááááááá 3-23 · IFX-52 (JACK) SCHEMATIC DIAGRAM ááááááááááááááá 3-25 · IFX-52 (CN) SCHEMATIC DIAGRAM ááááááááááááááááááá 3-26 4. ELECTRICAL ADJUSTMENTáááááááááááááááááááááááááá 4-1 5. REPAIR PARTS LIST 5-1. EXPLODED VIEWS ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááá 5-1 5-2. ELECTRICAL PARTS LIST áááááááááááááááááááááááááááááááááááááááááá 5-2 TABLE OF CONTENTS
Page 2
1-1 DVMC-DA1 SECTION 1 GENERAL This section is extracted from instruction manual (3-864-717-11). 3-US Table of contents Overview 1-2 Checking the supplied parts and accessories 1-3 Duplicating analog video to digital video 1-3 Connecting an analog video unit and a DV unit via the media converter 1-3 Duplicating analog video to digital video 1-4 Duplicating digital video to analog video 1-4 Viewing digital video on your TV 1-5 Connecting a DV unit and a TV via the media converter 1-5 Viewing digital video on your TV 1-5 Playing back the audio while changing the mixing rate 1-5 Capturing images from an analog video unit using a PC 1-6 Connecting a PC and an analog video unit via the media converter 1-6 Capturing images from an analog video unit using a PC 1-6 Recording analog video from a PC 1-6 Precautions 1-7 Technical information 1-8 Signal flows 1-8 Output/input of analog video signals 1-8 Copyright precautions 1-8 DV recording format 1-9 12-bit/16-bit audio modes 1-9 Locating the parts and controls 1-1 23-US Locating the parts and controls Front 1 POWER button Turns on/off the media converter. 2 PROTECT indicator Lights when the input picture includes a copy protection signal. You cannot record the signal when this indicator is lit. 3 ANALOG IN key and indicator Select the signal input from the AUDIO/VIDEO/S-VIDEO IN as the input signal to the media converter. 4 DV IN key and indicator Select the signal input from the DV IN/ OUT as the input signal to the media converter. Rear 1 AUDIO/VIDEO/S-VIDEO IN connectors Connect to the analog video unit. When you connect both the S-VIDEO IN and VIDEO IN connectors, the S- video signal is automatically selected. When connecting to VIDEO IN connectors only, no signals are output from the S-VIDEO OUT connector. 2 AUDIO/VIDEO/S-VIDEO OUT connectors Connect to the analog video unit or TV. 3 DV IN/OUT connector Connect to the DV unit. 4 DC IN 6V connector Connect to the supplied AC power adapter.
