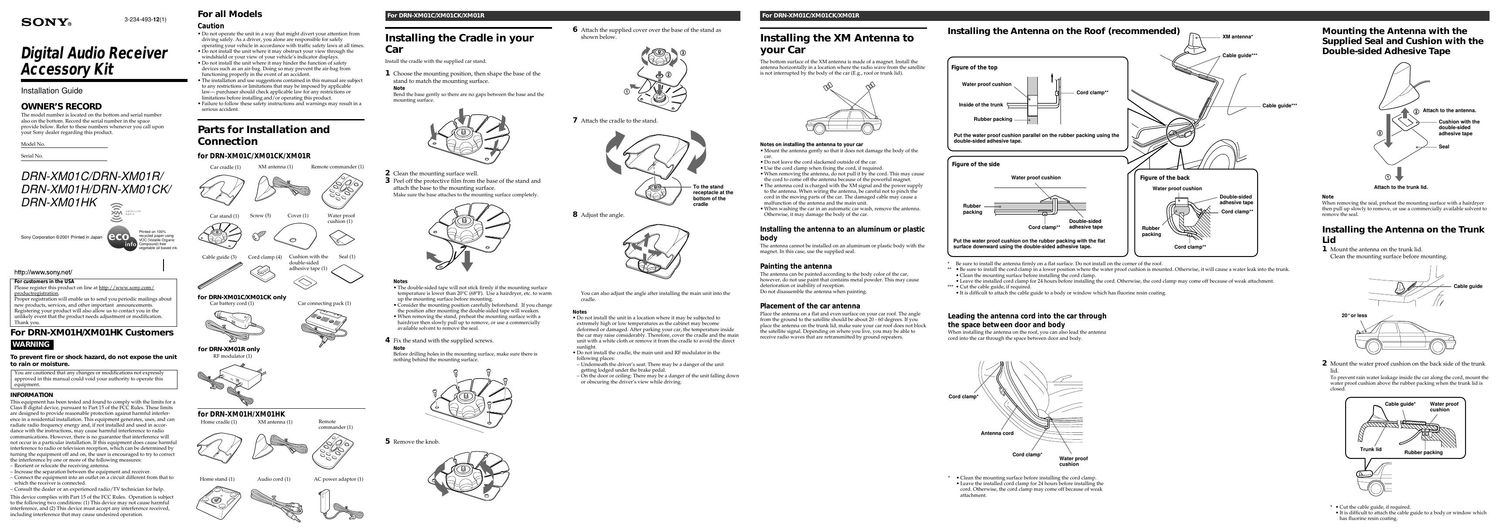

POWER ANT DC OUT AUDIO For DRN-XM01C/XM01CK Connecting the Unit to the Cigarette Lighter Socket When the electric power is supplied to the car battery cord, the power lamp lights up. Notes - Route the cords so that they will not interfere with your driving. - Take care not to accidentally insert a portion of the car connecting pack cord into the cassette insertion slot. This may cause the cord to break or damage the car cassette deck. - To disconnect the cord from your audio equipment, pull it out by grasping the plug. Never pull it by the cord. - If the inside of the cigarette lighter socket is dirty with cigarette ash, the cigarette lighter plug may be heated due to abnormal contact. Be sure to clean the inside of the cigarette lighter socket before inserting the plug. - After using the receiver, eject the car connecting pack from the car cassette deck and disconnect the car battery cord from the receiver and the cigarette lighter socket. - Do not use the receiver when the cars engine is not running. Using the Car Connecting Pack 1 Turn down the volume of the car cassette deck. 2 Set the tape selector to the normal (TYPE I) position, and the DOLBY NR, REPEAT, or BLANK SKIP switch to the OFF position if such are equipped. 3 Insert the car connecting pack into the cassette deck. 4 Start playback on the car cassette deck. 5 Adjust the volume. If no sound is heard or the car connecting pack is removed, change the playback direction on the car cassette deck. To Remove the Car Connecting PackPress the Z (eject) button of the car cassette deck. Note You cannot use this car connecting pack with certain car cassette decks. Fuse Replacement 1 Pull the cigarette lighter plug out of the cigarette lighter socket. 2 Detach the end of the plug by turning it counterclockwise. 3 Replace the fuse with a new one. 4 Reattach the end of the plug by turning it clockwise firmly. Notes - When replacing the fuse, be sure to use one with the correct amperage, as stated on the fuse case. (1 A, 125 V, 20 mm) - Do not use a piece of wire instead of a fuse. - If the replaced fuse opens again, consult your dealer. For DRN-XM01R Using the Unit on House Current Use the AC power adaptor and the audio cord supplied with DRN-XM01H/XM01HK. Attaching the Home Stand Connecting the Unit Note on the DC plug of the AC power adaptor This AC power adaptor uses a unified polarity type plug (JEITA standard). Damage will occur if it is connected to a DC power input jack without the ! polarity symbol or with another symbol. If the jack of your audio equipment does not match the AC power adaptor, consult your dealer. Symbol of unified polarity type jack Placement of the Home Antenna The satellite is located in the south sky. Place the antenna as follows for proper reception: – Outside the house – Place the antenna in an area where there are no obstacles within 20 - 60 degrees facing the southern sky. – On a flat surface so that it is parallel to the ground. When you place it indoors, or if there is a building or tree in the direction of the satellite, the antenna may not be able to receive the radio wave. Depending on where you live, you may be able to receive radio waves that are retransmitted by ground repeaters. Connecting the Unit to your Car with a RF Modulator Connect it as follows when a diversity antenna is used for the car audio. TOYOTA Connect to the bigger antenna connector. NISSAN The optional antenna converter cord XA-82 is required. The shape of the antenna terminal is different depending on the model of the car. Others The optional antenna converter cord may be required. Check with the retailer. Fuse Replacement If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. WarningUse a fuse with the specified amperage rating. Use of a higher amperage fuse may cause serious damage. Setting the POWER SELECT Switch This RF modulator supplies power to the receiver and detects the on/off state by monitoring the load of the power. When the receiver is turned on, the RF modulator automatically cuts off the antenna line and directly outputs the sound of the receiver to the car audio with the selected FM frequency. This prevents the sound from disturbing the FM broadcast signal. When the receiver is turned off, the antenna line is connected to the car audio. Besides, you can set the RF modulator to always cut off the antenna line and output the XM radio sound to the car audio, in this case, you cannot hear the normal FM broadcast. POWER SEL ON 2 1 1 : Normal use (detecting more than 100 mA load) 2 : Not used (detecting more than 50 mA load) ON : Not used (cutting off the antenna line) Changing the Transmitting Frequency This unit changes the signal of the XM satellite radio broadcast into an FM frequency and outputs the sound through an FM tuner. There may be interference noise while playing the receiver, when the frequency selected for the receiver is used for transmitting the actual FM broadcast. In such a case, change the transmitting frequency on the unit. The factory-set is 87.9 MHz. F.SEL 1234 87.7 MHz 1234 88.1 MHz 1234 88.3 MHz 1234 88.5 MHz 1234 88.7 MHz 1234 88.9 MHz 1234 (Default) 87.9 MHz Note When you change the frequency on the unit, be sure to tune your FM tuner to the newly selected one. For DRN-XM01H/XM01HK Car cassette deck to a cassette insertion slot Car connecting pack to a cigarette lighter socket Power lamp Car battery cord to the DC IN 6V jack to the LINE OUT jack Fuse (1 A) Cigarette lighter plug End of the plug to tighten to remove Speaker system to a metal point on the car to the car antenna Car audio Black Antenna connecter to the +12 V power terminal which is powered when the ignition key switch is in the accessory position Be sure to connect the black earth lead to it first. RF Modulator Power connecting cord(Supplied) Fuse (1 A) Red POWER SEL (select) switch Frequency select switch For the DRN-XM01C/XM01CK/XM01R When the Installation and Connections Have Been Made Securing the Cord After installing and connecting the unit, run cord so as not to interfere with the operation of the vehicle. Run and fix the cord on the passenger side of the center console with the supplied cord clamp. * - Clean the mounting surface before installing the cord clamp. - Leave the installed cord clamp for 24 hours before installing the cord. Otherwise, the cord clamp may come off because of weak attachment. Note Make sure the cord does not get caught in the sliding rails under the front seats or the front doorsills as this may cause the cord to be severed. Cord clamp* to an AC outlet to the DC IN 6V jack Cradle to the DC IN 6V jack to the LINE OUT jack Cradle to the input jacks of the audio equipment Audio cord to the LINE OUT jack AC power adaptor Precautions - Do not install the unit where: – the ambient temperature exceeds 55°C (131°F). – it will be exposed to direct sunlight or hot air from a heater. – it will be exposed to rain, water, or high humidity. – it will be exposed to a lot of dust. – it will be subject to excessive vibration. – hinder normal driving activities. – jeopardize the passengers. - Be sure to turn off the power of each component before making the connections. For DRN-XM01C/XM01CK CustomersBe sure to check that the voltage of the equipment connected to this unit is correct. Incorrect voltage may cause the equipment to malfunction. - This unit is designed for negative ground 12 or 24 V DC operation only. - Avoid high temperatures, such as direct sunlight or hot air from the heater. - You cannot use this unit with some car cassette deck. - Used with some car cassette decks, the car connecting pack may rattle. This is not a malfunction of the car connecting pack. Note on the DC plug of the car battery cord This car battery cord uses a unified polarity type plug (JEITA standard). Damage will occur if it is connected to a DC power input jack without the ! polarity symbol or with another symbol. For DRN-XM01R Customers- This unit is designed for negative ground 12 V DC operation only. - Before making connections, disconnect the earth terminal of the car battery to avoid short circuits. - Connect the red power input leads only after all other leads have been connected. -Be sure to connect the red power input lead to the positive 12 V power terminal which is powered when the ignition switch is in the accessory position. -Run all earth wires to a common earth point. For DRN-XM01H/XM01HK Customers On installing the AC power adaptorDo not place the AC power adaptor in a location where it is subject to: – extreme high temperature (E.g., in a car with its windows closed) – direct sunlight or near a heat source – mechanical vibration or shock – a magnetic field (E.g., near a magnet, speaker, or TV) – excessive dust. On operating the AC power adaptor- Make sure the current and voltage of the equipment matches that of the outlet. - For safety, if the input current is too high, the unit will automatically shut down. - Do not use the unit near a TV set. If you place equipment too close to the unit while they are being used, you may experience some interference. - To prevent damage, be careful not to drop or otherwise cause a mechanical shock to the unit. - After using, disconnect the unit from the wall outlet and the equipment. - Disconnect the unit from the AC outlet by pulling on the plug. Do not pull on the cord. - To avoid short-circuiting, do not allow the terminals of the unit or connector to touch any metal object. - Use only the recommended AC power adaptor. For all Customers On cleaning- Clean the unit with a soft, dry cloth. If the unit is very dirty, wipe it off with a soft cloth lightly moistened with a mild detergent solution, and then wipe with a soft dry cloth. - Do not use any type of solvent such as alcohol, thinner, or benzine as it may damage the finish of the cabinet. - If you use any chemical cleaner, observe the instructions provided with the product. - If the cabinet of the unit is splashed with any type of solvent such as insecticide, or remains in contact for a long time with rubber or vinyl, the finish or the cabinet may be damaged. XM antenna to the ANT SAT jack to the ANT TER jack SAT TER SAT to the ANT SAT jack TER to the ANT TER jack Tighten the screw at the bottom of the home stand to secure the cradle. To the stand receptacle at the bottom of the cradle XM antenna XM antenna SAT TER to the ANT SAT jack to the ANT TER jack Replacing the Lithium Battery into the Remote Commander Replace the battery when the buttons on the remote commander do not work. Remove the old battery and insert a new one. 1 2 3 1 Insert a long and thin object into the hole, then pull out the lithium battery holder. 2 Place the lithium battery with the positive (+) side facing up. 3 Insert the battery holder into the remote commander until it clicks. Battery life (Approx.) Sony lithium battery CR2025 1 year Notes on lithium battery - Keep the lithium battery out of reach of children. Should the battery be swallowed, immediately consult a doctor. - Wipe the battery with a dry cloth to assure good contact. - Be sure to install the battery in the correct polarity position. - Do not hold the battery with metallic tweezers, as doing so may cause a short-circuit. - Do not break up the battery or throw it into a fire, which might cause it to explode. Carefully dispose of the used battery. Note When the unit is not to be used for a long period of time, remove the battery to avoid damage from battery leakage and corrosion. Specifications Accessories supplied XM antenna (1) Remote commander (1) For DRN-XM01C/XM01CK/XM01R: Car cradle (1) Car stand (1) Screw (5) Cover (1) Water proof cushion (1) Cable guide (3) Cord clamp (4) Cushion with the double-sided adhesive tape (1) Seal (1) For DRN-XM01C/XM01CK only: Car battery cord (1) Car connecting pack (1) For DRN-XM01R only: RF modulator (1) For DRN-XM01H/XM01HK: Home cradle (1) Home stand (1) Audio cord (1) AC power adaptor (1) Optional accessories AC power adaptor AC-E60A Car battery cord DCC-E260 Car connecting pack CPA-9C
