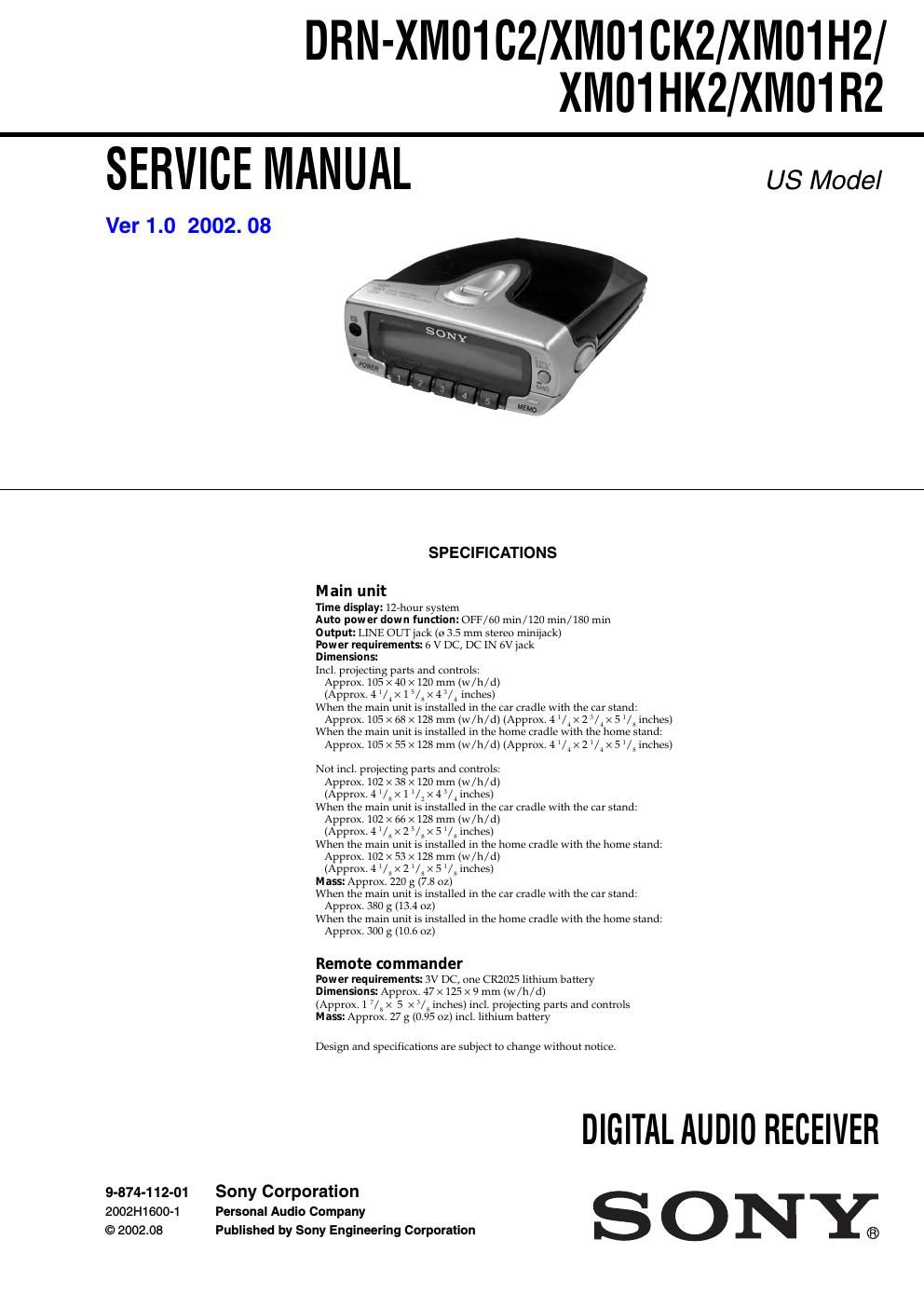

Sony drn xm 01 hk 2 service manual

Page 2

3 DRN-XM01C2/XM01CK2/XM01H2/ XM01HK2/XM01R2 SECTION 1 SERVICING NOTES What to do when memory or the BB board or the unit is replaced? The DRN-XM01 Service Tool is simply referred to as the dedicated software in this document. - When IC504 (flash memory) is replaced Connect the DRN-XM01 to a PC with the USB cable and enter the serial number in the dedicated software. Then write the newest program in the flash memory. (Contents of the user setup are automatically cleared.) - When IC509 (EEPROM) is replaced Connect the DRN-XM01 to a PC with the USB cable and enter the serial number in the dedicated software. Then write the newest program in the flash memory. (Contents of the user setup are automatically cleared.) - When failed in writing the flash memory Connect again the DRN-XM01 to the PC with the USB cable and enter the serial number in the dedicated software. Then write the newest program in the flash memory. (Contents of the user setup are automatically cleared.) - When IC102 (STA450) is replaced Replace IC103 (ST19AF08) at the same time. Then perform the CAP-binding (see Note 1) using the dedicated equipment (see Note 2). Write the radio ID that is displayed on the binding computer, into the label. Connect again the DRN-XM01 to the PC with the USB cable and enter the serial number in the dedicated software. Then write the newest program in the flash memory. (Contents of the user setup are automatically cleared.) Turn on the power of the DRN-XM01. Confirm that the radio ID that is displayed on the CH0 matches the number on the label. Then attach the label to the DRN-XM01. After that, update the contract with the XM Radio Inc. Ltd., accordingly. - When IC103 (ST19AF08) is replaced Perform the CAP-binding using the dedicated equipment. Confirm that the radio ID that is displayed on the binding computer matches the indication on the label of the DRN-XM01. Connect the DRN-XM01 to a PC with the USB cable and enter the newest program in the flash memory using the dedicated software. (Contents of the user setup are automatically cleared.) Turn on the power of the DRN-XM01. Confirm that the radio ID that is displayed on the CH0 matches the number on the label. After that, update the contract with the XM Radio Inc. Ltd., accordingly. - When the BB board is replaced Perform the CAP-binding using the dedicated equipment. Write the radio ID that is displayed on the binding computer, into the label. Connect the DRN-XM01 to a PC with the USB cable and write the newest program in the flash memory using the dedicated software. (Contents of the user setup are automatically cleared.) Turn on the power of the DRN-XM01. Confirm that the radio ID that is displayed on the CH0 matches the number on the label. After that, update the contract with the XM Radio Inc. Ltd., accordingly. - When the CPU board is replaced Connect the DRN-XM01 to a PC with the USB cable and write the newest program in the flash memory using the dedicated software. (Contents of the user setup are automatically cleared.) - When the DRN-XM01 is replaced Perform the activate work (see Note 3). Update the contract with the XM Radio Inc. Ltd., accordingly. Note 1 : CAP : IC103 ST19AF08 (Conditional Access Processor) Note 2 : Dedicated equipment : It means the dedicated pin-jig that connects the BB board to a binding PC that is used for the CAP-binding i.e., the procedure of writing the radio ID (XM Radio Hardware ID) to support the pay services. Note 3 : activate work: The procedure of visiting the XM Radio Inc., Ltd., Web site or contacting the XM Radio Inc., Ltd., over telephone to tell them the credit card number and radio ID (XM Radio Hardware ID) to enable reception of pay radio.
