Sony drn xm 01 ck 2 owners manual

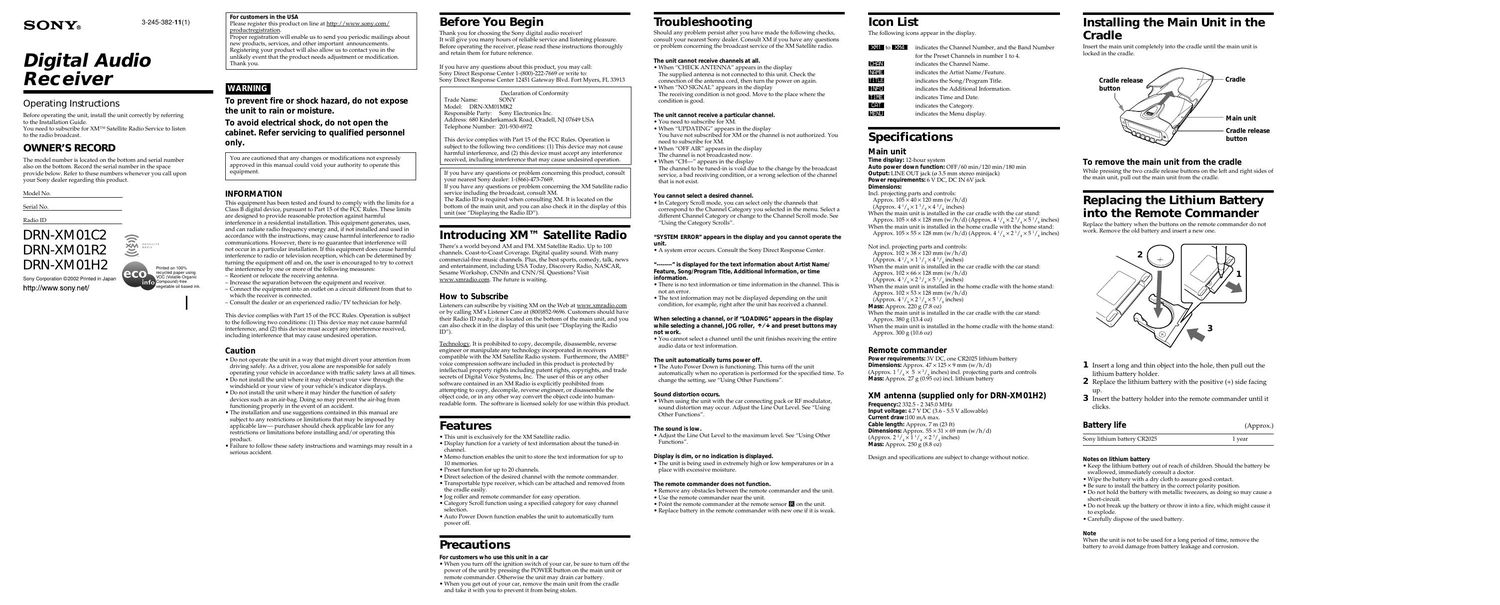

Page 1

Remote commander Parts and Identifications Main unit Display window DSPL/BACK/BAND* 2 MEMO JOG roller (MENU/ENTER) Preset buttons (1-5)* 1 Cradle release button Using the JOG Roller (MENU/ENTER) Turn up or down to select channels, select the menu items and settings, or scroll the stored text information in the menu operation. Press to display the menu display, or execute the items or settings in the menu operation. Displaying the Radio ID The receiver has its own ID, and an ID number is required when registering in XM. 1 Press POWER to turn on the main unit. 2 Turn JOG roller (or press X ⁄ x on the remote) to select XM1 CH0 RADIO ID. The radio ID appears. CHO RADIO ID XXXXXXXXXM1 Note The Radio ID can be displayed only in Channel Scroll mode. See Playing the Receiver. Adjusting the Time Difference This unit displays the current time by correcting the time difference between the local time and UTC (coordinated universal time) data being transmitted. Set the hour of your local time in the menu display. The factory-set is the eastern standard time. If the current UTC data is not received, – – : – – appears in the display. 1 Press POWER to turn on the main unit. 2 Press JOG roller (or MENU on the remote) to show the menu display. The first menu item appears. SCROLL MODE MENU 3 Turn JOG roller (or press X ⁄ x on the remote) to select TIME ADJUST and press JOG roller (or ENTER on the remote). The hour flashes. TIME ADJUST 11:12AM MENU 12:00 AM = midnight 12:00 PM = noon 4 Turn JOG roller (or press X ⁄ x on the remote) to adjust the hour and press JOG roller (or ENTER on the remote). The display returns to the tuned channel display. Note This unit does not have the Daylight Saving Time (summer time) function. To check the current time while listening to a broadcast Press DSPL/BACK/BAND (or DSPL on the remote) until the INFO and TIME display appears. See Checking the Tuned Channel Information. To cancel a selection Press DSPL/BACK/BAND (or BACK on the remote) to return to the previous display during menu operation. Press MENU on the remote commander to exit the menu display. The display returns to the tuned channel display. Playing the Receiver Notes - Turn down the volume of the component connected to the unit before playing the unit. - Adjust the volume of the component connected to the unit. - If sound distortion occurs when playing the unit with the car connecting pack or RF modulator, adjust the Line Out Level. See Using Other Functions. Manual Tuning 1 Make settings on your car audio or amplifier, etc. so that you can listen to the sound from this unit. 2 Press POWER to turn on the main unit.The channel that you last tuned in to is displayed. CH13 TOP 20XM1CHAN 3 Turn JOG roller (or press X ⁄ x on the remote) to select desired channel. - Holding down X ⁄ x makes the channel readout to rapidly increase or decrease respectively. - This unit has two scroll modes: Channel Scroll and Category Scroll. See Using the Category Scrolls. Channel Scroll:searches for a channel by scrolling every single channel among authorized channels. Category Scroll: searches for a channel using the Channel Category you selected in the menu display. To turn off the receiver Press POWER. Direct TuningYou can tune in to the desired channel by directly pressing the numeric buttons (1-0) on the remote commander. 1 Press the desired channel number with the numeric buttons on the remote. The display shows the specified channel number. CH 123 XM1 2 Press SELECT on the remote.Even if you do not press SELECT, the channel is tuned in after a few seconds. Using the Category Scrolls In Category Scroll mode, you can search for a channel among authorized channels that have the corresponding Channel Category you selected in the menu display. 1 Press JOG roller (or MENU on the remote) to show the menu display. SCROLL MODE appears in the display. 2 Press JOG roller (or ENTER on the remote).The current scroll mode appears in the display. SCROLL MODE CHANNEL SCROLLMENU 3 Turn JOG roller (or press X ⁄ x on the remote) to select CATEGORY SCROLL and press JOG roller (or ENTER on the remote). The selected Channel Category appears in the display. CATEGORY SCROLL NEWSMENU 4 Turn JOG roller (or press X ⁄ x on the remote) to select the desired Channel Category and press JOG roller (or ENTER on the remote). The unit searches for a channel that has the selected Channel Category from the Channel Number next to the current channel. The CATEGORY indicator appears in the upper left corner of the display. To cancel a selection Press DSPL/BACK/BAND (or BACK on the remote) to return to the previous display during menu operation. Press MENU on the remote commander to exit the menu display. The display returns to the tuned channel display. Tips - When you tune in to a channel in Category Scroll mode, the Channel Category appears for about 2 seconds in the display. CH50 NewsXM1 - When there is no channel that has the specified Channel Category, CH--- is displayed. Note When the Category list cannot be received depending on the receiving condition, -------- is displayed in step 3 above, and you cannot select the Channel Category. Presetting your Favorite Channels Preset TuningYou can preset up to 20 channels onto the preset buttons (1–5) in each band (XM1-XM4). To access the preset channels, simply press the corresponding preset buttons (1–5). All the preset buttons are preset to Channel Number 1 at the factory. Presetting a channel 1 Follow steps 1 to 2 in Manual Tuning. 2 Hold down DSPL/BACK/BAND for more than 2 seconds, or press BAND on the remote to show the display for selecting a band. Channel Name Channel Number 3 Press DSPL/BACK/BAND (or BAND on the remote) to select the desired band. The band changes in the following order:t XM1 t XM2 t XM3 t XM4 4 Turn JOG roller (or press X ⁄ x on the remote) to select desired channel you wish to preset. 5 Hold down the desired preset button for more than 2 seconds.The preset number appears. CH50 PRESET1 Financial NewsXM1CHAN The previous preset channel is deleted and the unit presets the channel being received. Note You cannot preset channels using the remote. Tuning in to a preset channel 1 Press POWER to turn on the main unit. 2 Hold down DSPL/BACK/BAND for more than 2 seconds, or press BAND on the remote to show the display for selecting a band. 3 Press DSPL/BACK/BAND (or BAND on the remote) to select the desired band. The band changes in the following order:t XM1 t XM2 t XM3 t XM4 4 Press the desired preset button (1–5). Checking the Tuned Channel Information This unit has three display modes in the tuned channel display. 1 Press DSPL/BACK/BAND (or DSPL on the remote).The display mode changes as follows: CH13 TOP 20 Maria Christmas Song Concert starts 11:00AM 12/24/02XM1CHAN NAMETITLE INFOTIME Tips -When the Additional Information text has more than 16 characters, text will be scrolled every 2 seconds. After all Additional Information is displayed, --- + --- + --- + --- + appears for about 2 seconds and then repeats displaying from the beginning. -As the unit memorizes the display mode when the power is turned off, the display appears in the last display mode when you turn on the unit. Note If the channel has no text information, -------- will appear in the display. Storing the Information You can store the text information contained in the tuned-in channel. This unit can store ten sets of the following information: –Channel Number –Channel Name –Artist Name or Feature –Song or Program Title –Additional Information and Time/Date Note When you store the eleventh set of information, the oldest one will be deleted. 1 Press MEMO when the channel you wish to store the information is received. MEMORIZED appears for about 2 seconds and the information is stored in MEMO 1. The memory numbers of already stored information increases by one. MEMORIZED Viewing the stored information 1 Press JOG roller (or MENU on the remote) to show the menu display. 2 Turn JOG roller (or press X ⁄ x on the remote) to select MEMO and press JOG roller (or ENTER on the remote). MEMO MEMO 1MENU Ifsnosinformationsissstored/sNO MEMO will appear. 3 Turn JOG roller (or press X ⁄ x on the remote) to select the desired memory number and press JOG roller (or ENTER on the remote). 4 Turn JOG roller (or press X ⁄ x on the remote) to scroll the stored text information. The information appears in the following order: Artist Name/Feature t Song/Program Title t Additional Information t Channel Number t Channel Name t Time and date. To return to the display for selecting the memory number Press DSPL/BACK/BAND (or BACK on the remote). To exit the menu display Press MENU on the remote commander. The display returns to the tuned channel display. Using other Functions You can also use the following functions in the menu display. Menu SeeScroll modeUsing the Category ScrollMemoStoring the InformationBack Light belowBeep belowTime AdjustAdjusting the Time DifferenceContrast belowAuto Power Down belowLine Out Level belowReception Status below To cancel a selection Press DSPL/BACK/BAND (or BACK on the remote) to return to the previous display. Press MENU on the remote commander to exit the menu display. Note When no operation is performed for about 1 minute in the menu display except for the Reception Status, the unit cancels a selection and the display returns to the tuned channel display. Back LightYou can select the lighting level of the display window. The factory-set is BRIGHT. 1 Press JOG roller (or MENU on the remote) to show the menu display. 2 Turn JOG roller (or press X ⁄ x on the remote) to select BACK LIGHT and press JOG roller (or ENTER on the remote). The current setting appears in the display. BACK LIGHT BRIGHTMENU 3 Turn JOG roller (or press X ⁄ x on the remote) to select the desired setting and press JOG roller (or ENTER on the remote). BRIGHT: makes the display window bright. DIM: makes the display window dim. OFF: turns off the lighting of the display window. BeepYou can turn the beep on or off. The factory-set is ON. 1 Press JOG roller (or MENU on the remote) to show the menu display. 2 Turn JOG roller (or press X ⁄ x on the remote) to select BEEP and press JOG roller (or ENTER on the remote). The current setting appears in the display. BEEP ONMENU 3 Turn JOG roller (or press X ⁄ x on the remote) to select ON or OFF and press JOG roller (or ENTER on the remote). ContrastYou can adjust the contrast of the display window in 8 levels. The factory- set is level 4. 1 Press JOG roller (or MENU on the remote) to show the menu display. 2 Turn JOG roller (or press X ⁄ x on the remote) to select CONTRAST and press JOG roller (or ENTER on the remote). The current setting appears in the display. CONTRAST L HMENU 3 Turn JOG roller (or press X ⁄ x on the remote) to adjust contrast while checking the display and press JOG roller (or ENTER on the remote). Auto Power DownAuto Power Down function automatically turns off the unit when the specified time passes from the last button operation. The factory-set is 60 min. 1 Press JOG roller (or MENU on the remote) to show the menu display. 2 Turn JOG roller (or press X ⁄ x on the remote) to select AUTO POWER DOWN and press JOG roller (or ENTER on the remote). The current setting appears in the display. AUTO POWER DOWN 60minMENU 3 Turn JOG roller (or press X ⁄ x on the remote) to select setting and press JOG roller (or ENTER on the remote). The setting changes as follows: OFF 60 min 120 min 180 min When you select a setting other than OFF, the Auto Power Down indicator appears in the lower left corner of the display. To disable the Auto Power Down function, select OFF. When the specified time passes, the following messages appear in the display. POWERING DOWN NO POWER DOWN? PRESS ANY KEY Whensnosbuttonsisspressed/sthesunitsturnssoffsthespowerBsIfsyouspress anysbutton/sthestimersdurationswillsbeginsfromsthesstartB 1 2 3BAND MEMO DSPL 4 5 6 1 7 8 9 2 0SELECT 3 MENU 4 BACK ENTER 5 CH PRESET POWER Menu icon Menu item Channel Category Preset Number Channel NumberChannel Name Artist Name/FeatureSong/Program Title Additional InformationCurrent Time and Date Memory number 2 seconds Line Out LevelYou can adjust the output level of the signal from the LINE OUT jack in 8 levels. The factory-set is level 8 (Maximum.). Standard level adjustment -When the car connecting pack or RF modulator is connected to the LINE OUT jack of the unit and using it in a car, turn down the Line Out Level to avoid sound distortion. -When the car connecting pack or RF modulator is not connected to the LINE OUT jack, set the Line Out Level to the maximum level. 1 Press JOG roller (or MENU on the remote) to show the menu display. 2 Turn JOG roller (or press X ⁄ x on the remote) to select LINE OUT LEVEL and press JOG roller (or ENTER on the remote). The current setting appears in the display. LINE OUT LEVELMENU 3 Turn JOG roller (or press X ⁄ x on the remote) to adjust the Line Out Level while listening to the radio and press JOG roller (or ENTER on the remote). Reception StatusWhen you install the XM antenna for home use, you can check the reception status in 4 levels. 1 Press JOG roller (or MENU on the remote) to show the menu display. 2 Turn JOG roller (or press X ⁄ x on the remote) to select RECEPTION STATUS and press JOG roller (or ENTER on the remote). The current reception status appears in the display. RECEPTION STATUS L HMENU When a reception is poor and you receive interrupted sound, etc. The following indicators appear. In this case, adjust the XM antenna so that two or more indicators light up. See Placement of the Home Antenna in the Digital Audio Receiver Accessory Kit Installation Guide. LH LH When you obtain a good reception The following indicators appear. LH LH Remote sensor Cradle release button DSPLPOWER* 1 MEMO Numeric buttons SELECT MENU BACK X/xPOWER BAND* 2 PRESET ENTER Band Number Radio ID * 1The POWER and preset button No. 3 on the main unit have a tactile dot. *2To show the display for selecting a band, hold down DSPL/BACK/ BAND for more than 2 seconds, or press BAND on the remote. To select a band, press DSPL/BACK/BAND (or BAND on the remote). No indicator or only one indicator lights up. Two or more indicators light up.
