Sony dmx r 100 service manual 1
This is the 260 pages manual for sony dmx r 100 service manual 1.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony dmx r 100 service manual 1 (Ocr-read)

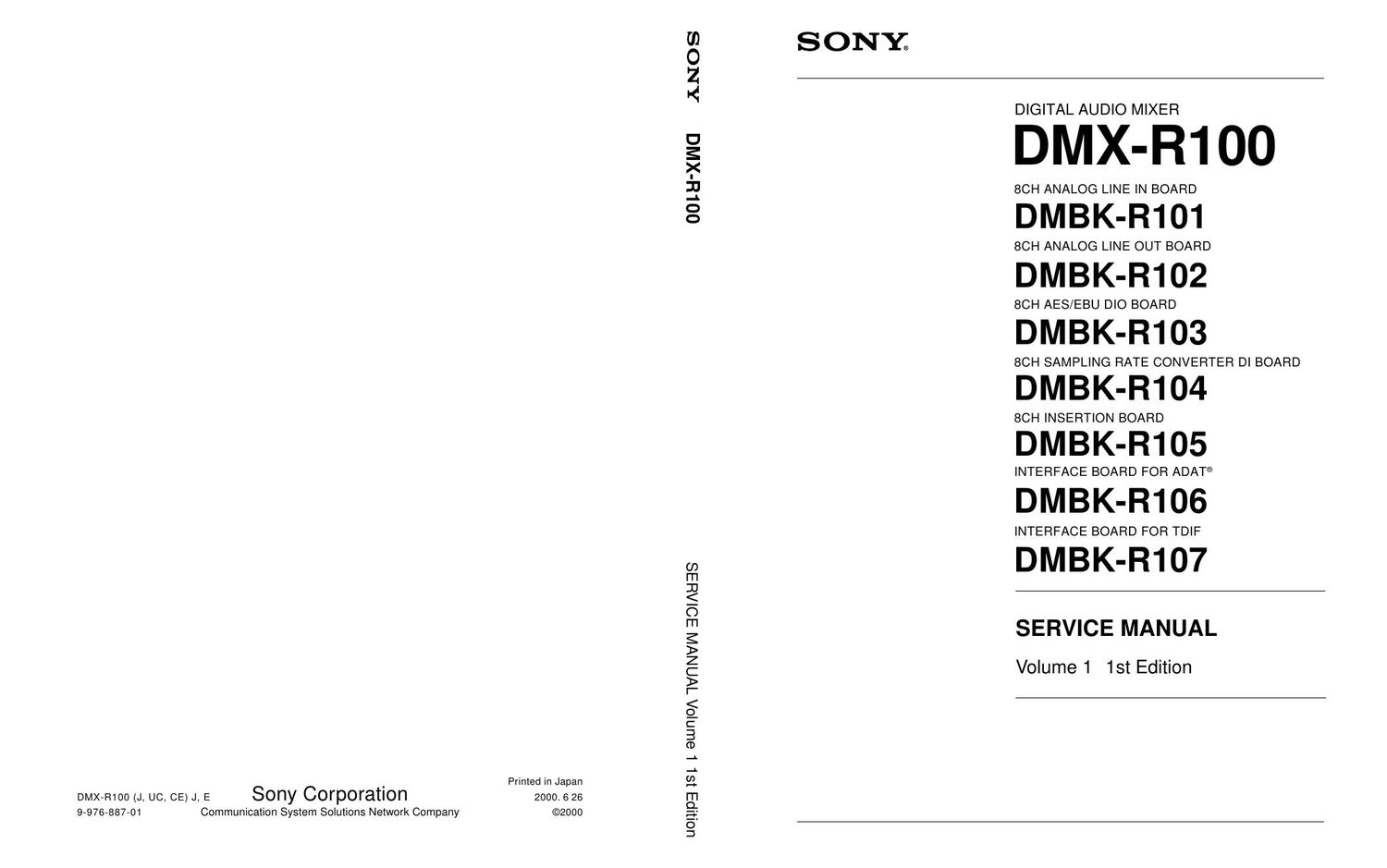

Page 1
DMX-R100/V1 DMX-R100/V1 ! WARNING This manual is intended for qualified service personnel only. To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified service personnel. ! WARNUNG Die Anleitung ist nur fŸr qualifiziertes Fachpersonal bestimmt. Alle Wartungsarbeiten dŸrfen nur von qualifiziertem Fachpersonal ausgefŸhrt werden. Um die Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben Wartungsarbeiten dŸrfen nur von Personen ausgefŸhrt werden, die eine spezielle BefŠhigung dazu besitzen. ! AVERTISSEMENT Ce manual est destinŽ uniquement aux personnes compŽtentes en charge de lÕentretien. Afin de rŽduire les risques de dŽcharge Žlectrique, dÕincendie ou de blessure nÕeffectuer que les rŽparations indiquŽes dans le mode dÕemploi ˆ moins dÕtre qualifiŽ pour en effectuer dÕautres. Pour toute rŽparation faire appel ˆ une personne compŽtente uniquement.SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer : Check the metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA. Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75 V, so analog meters must have an accurate low- voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) To Exposed Metal Parts on Set Fig A. Using an AC voltmeter to check AC leakage. AC voltmeter (0.75V) Earth Ground 0.15 mF 1.5 k Z
Page 2
1 (E) DMX-R100/V1 Table of Contents Manual Structure Purpose of this manual ........................................................................................ 5 (E) Contents ............................................................................................................... 5 (E) Related manuals ................................................................................................... 6 (E) Trademarks .......................................................................................................... 6 (E) 1. Operating Instructions 2. Service Overview 2-1. Installation ............................................................................................. 2-1 (E) 2-1-1. Operating Environment ........................................................ 2-1 (E) 2-1-2. Power Supply ....................................................................... 2-1 (E) 2-1-3. Installation Space ................................................................. 2-2 (E) 2-1-4. Connectors and Cables for Connection ................................ 2-3 (E) 2-1-5. Input/Output Signals of Connectors ..................................... 2-5 (E) 2-1-6. Switch/jumper/short-pin settings and LED functions ...................................................................... 2-8 (E) 2-1-7. Installation of Optional Board ............................................ 2-14 (E) 2-2. Location of the boards ......................................................................... 2-15 (E) 2-3. Opening/Closing of Control /Connector Panel ................................... 2-16 (E) 2-3-1. Opening/Closing of Control Panel ..................................... 2-16 (E) 2-3-2. Opening/Closing of Connector Panel ................................. 2-17 (E) 2-4. Replacement of Main Parts ................................................................. 2-17 (E) 2-4-1. Replacement of fader assembly ......................................... 2-17 (E) 2-4-2. Replacement of LCD and Back Light ................................ 2-18 (E) 2-4-3. Touch Panel ........................................................................ 2-20 (E) 2-4-4. Switching Regulator ........................................................... 2-23 (E) 2-4-5. Power Transformer ............................................................. 2-24 (E) 2-4-6. Power Fuse ......................................................................... 2-25 (E) 2-4-7. FDD (Floppy Disk Drive) .................................................. 2-26 (E) 2-4-8. For Memory Check ............................................................ 2-27 (E) 2-4-9. Replacement of Lithium Battery ........................................ 2-30 (E) 2-4-10. Notes Replacement of the CPU-284 Board ....................... 2-31 (E) 2-5. Using the Extension Board EX-729 .................................................... 2-32 (E) 2-6. Self Diagnosis ..................................................................................... 2-32 (E)
