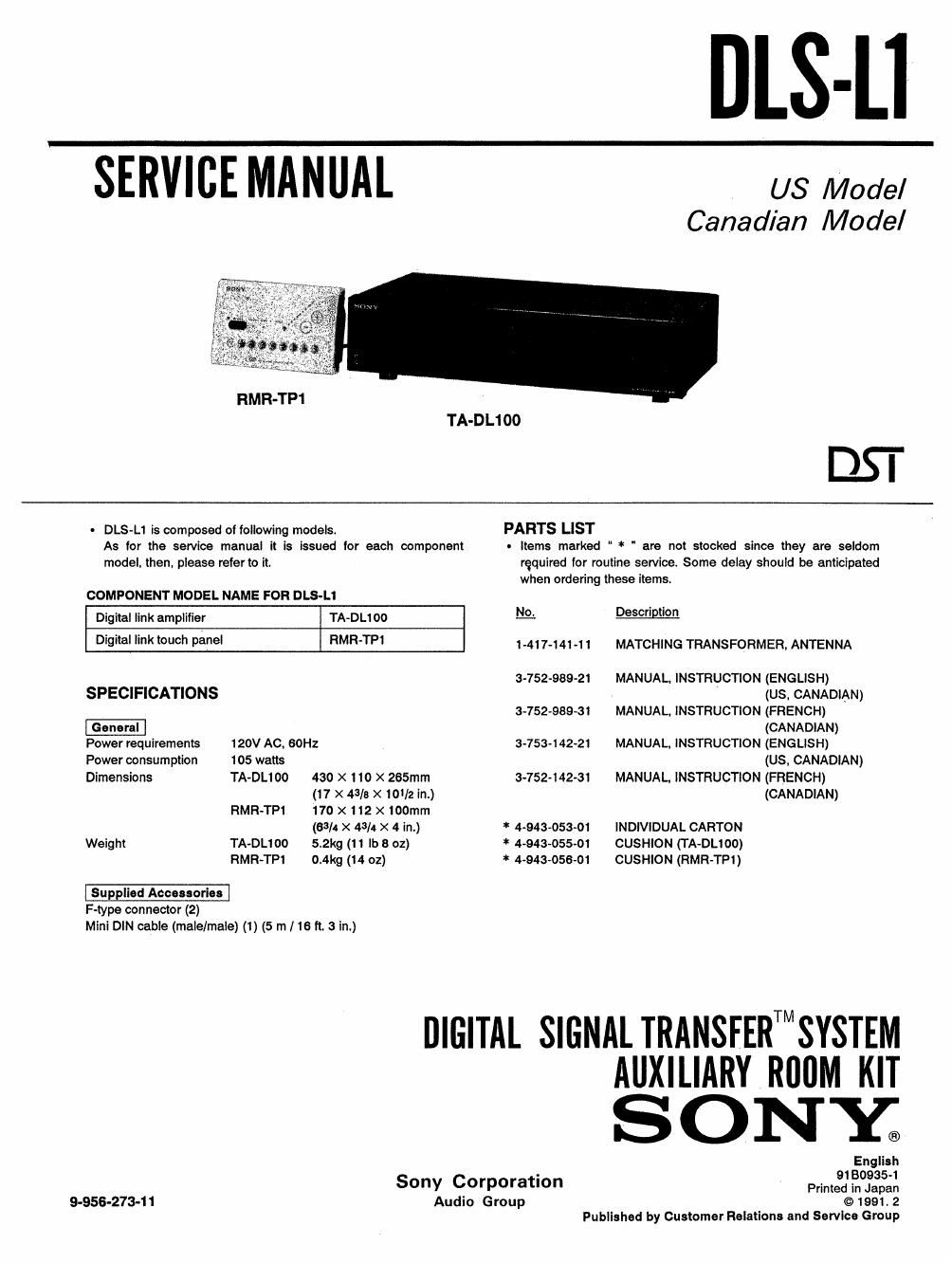

Page 1
DLS-Ll
SERVICE MANUAL
US Model
Canadian Model
RMR-TPI
TA-DL100
- DLS-LI is composed of following models. PARTS LIST
As for the service manual It is issued for each component - Items marked * are not stocked since they are seldom
model. then. please refer to it.
COMPONENT MODEL NAME FOFI DLS-Ll
required for routine service. Some delay should be anticipated
when ordering these items.
Digital link amplifier TA~DL100
14$ 913211911011
Digital link touch panel RMR-TPI
1-417-141-11 MATCHING TRANSFORMER, ANTENNA
SPECIFICATIONS
Power requirements 120V AC. 60Hz
Power consumption 105 waits
Dimensions TA-DLIOO 430 X IIO X 265mm
(17 X 43/8 X Iolle in.)
RMR-TPI 170 X 112 X 100mm
(63/4 x 43/4 X 4 in.)
Weight TA-DLIOO 5.2kg (11 lb 8 oz)
RMR-TPI 0.4kg (14 oz)
Su . -lied Accessories
F-type connector (2)
Mini DIN cable (male/male) (I) (5 m / 16 it 3 in.)
3-752~939-21 MANUAL. INSTRUCTION (ENGLISH)
(US, CANADIAN)
3.752-939-31 MANUAL, INSTRUCTION (FRENCH)
(CANADIAN)
3-753-142-21 MANUAL, INSTRUCTION (ENGLISH)
(us. CANADIAN)
3-752-142-31 MANUAL, INSTRUCTION (FRENCH)
(CANADIAN)
* 4-943~053-01 INDIVIDUAL CARTON
* 44243415501 CUSHION (TA~DLIOO)
* 4~943~056-01 CUSHION (RMRTPI)
DIGITAL SIGNAL TRANSFERTMSYSTEM
AUXILIARY RflflM KIT
SONYE
English
- 9130935-1
Sony Corporatlon Primed Japan
9-956-273-11 Audio Group ©1991.2
Published by Customer Relations and Service Group
