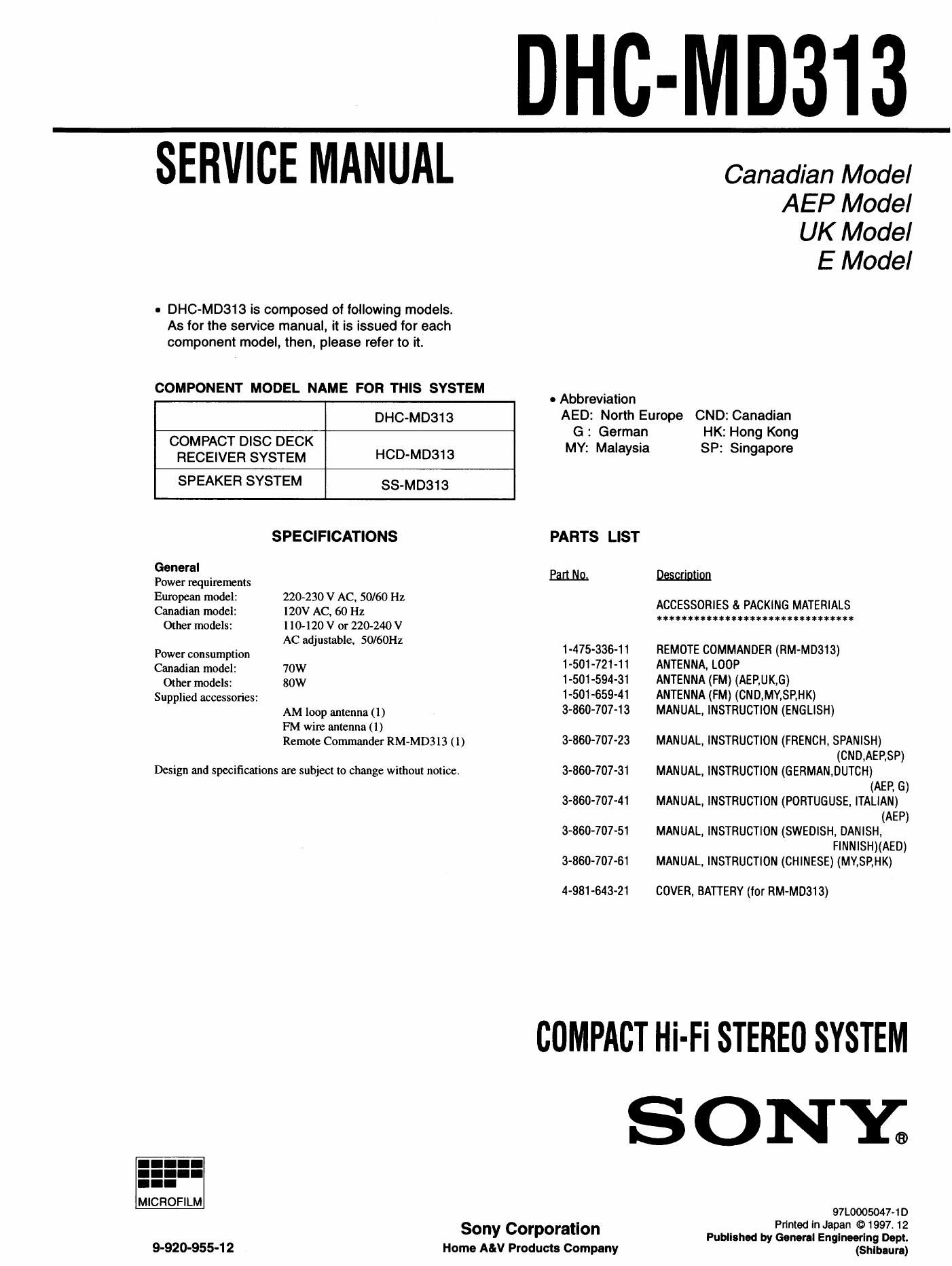

SERVICE MANUAL

- DHC-MD313 is composed of following models.
As for the service manual, it is issued for each
component model, then, please refer to it.

COMPONENT MODEL NAME FOR THIS SYSTEM

DHC-MD31 3
COMPACT DISC DECK
RECEIVER SYSTEM HOD-M0313
SPEAKER SYSTEM SS-MD313
SPECIFICATIONS
General
Power requirements
European model: 220-230 V AC, 50/60 Hz
Canadian model: 120V AC, 60 Hz
Other models: 110-120 V or 220-240 V

Power consumption

Canadian model:
Other models:

Supplied accessories:

AC adjustable, 50/60Hz

70W
80W

AM loop antenna (1)
FM wire antenna (1)
Remote Commander RM-MD313 (1)

Design and specifications are subject to change without notice.

MICROFILM

9-920-955-12

DHC-MD313

o Abbreviation

Canadian Model
AEP Model

UK Model

E Model

AED: North Europe CND: Canadian
HK: Hong Kong
SP: Singapore

G : German
MY: Malaysia

PARTS LIST

2am

1-475-336-11
1-501-721-11
1-501-594-31
1-501-659-41
3-860-707-13
3-860-707-23
3-860-707-31
3-860-707-41
3-860-707-51
3-860-707-61

4-981-643-21

DH

ACCESSORIES & PACKING MATERIALS

*******************X************

REMOTE COMMANDER (RM-M0313)
ANTENNA, LOOP

ANTENNA (FM) (AEP,III<,G)
ANTENNA (FM) (CND,MY,SP,HK)
MANUAL, INSTRUCTION (ENGLISH)

MANUAL, INSTRUCTION (FRENCH, SPANISH)

(CND,AEP,SP)

MANUAL, INSTRUCTION (GERMAN.DUTCH)

(AEP, G)

MANUAL, INSTRUCTION (PORTUGUSE, ITALIAN)

(AEP)

MANUAL, INSTRUCTION (SWEDISH, DANISH,

FINNISH)(AED)

MANUAL, INSTRUCTION (CHINESE) (MY,SP,HK)

COVER, BATTERY (for RM-M0313)

COMPACT Hi-Fi STEIIEo SYSTEM
S O NYE

Sony Corporation
Home A&V Products Company

97L0005047»1 D
Printed in Japan @1997. 12

Published by General Engineering Dept.

(Shibeura)
