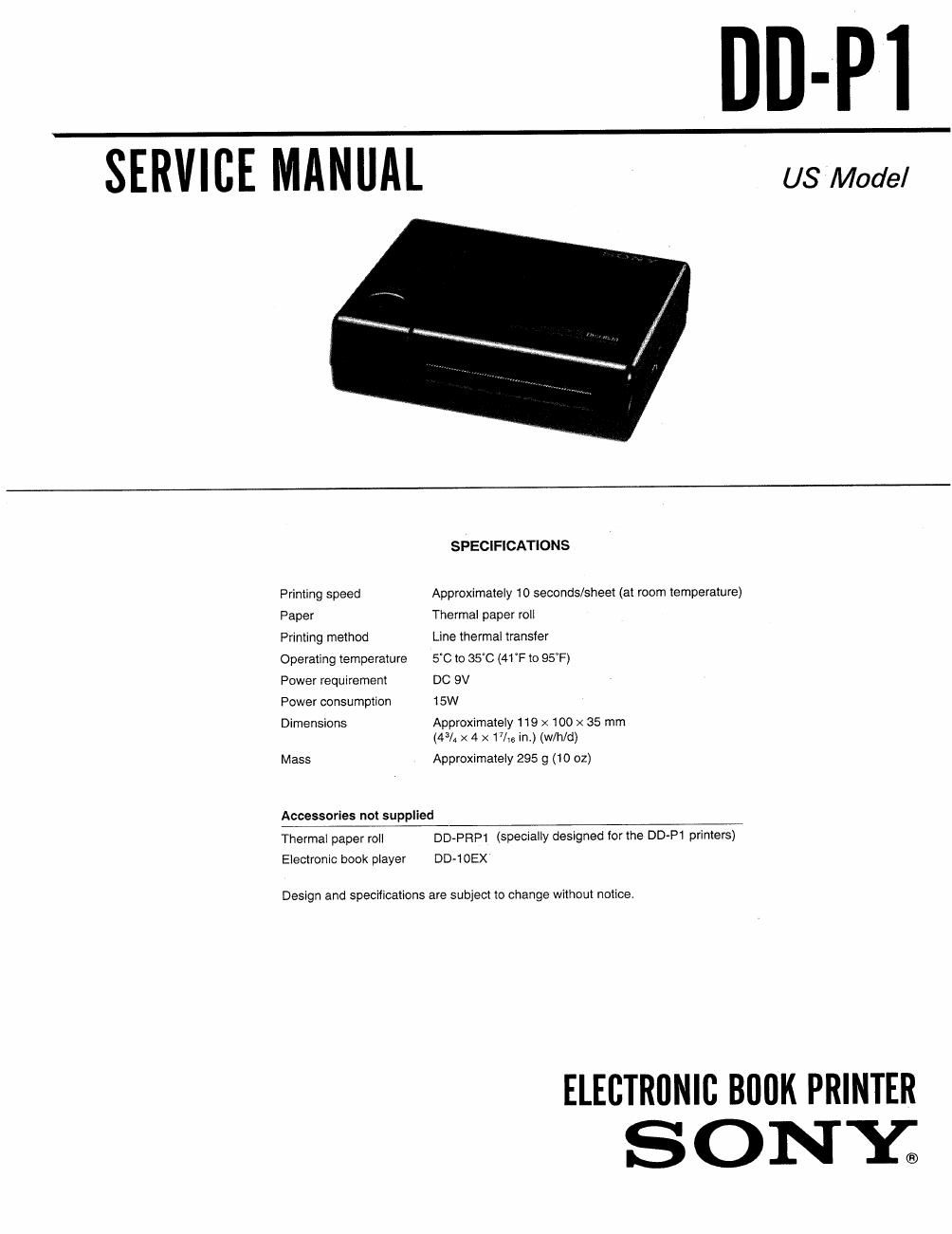

DD-PI

SERVICE MANUAL US Model

SPECIFICATIONS
Printing speed Approximately 10 seconds/sheet (at room temperature)
Paper Thermal paper roll
Printing method Line thermal transfer
Operating temperature SC to 350 (41'F to QSF)
Power requirement DC 9V
Power consumption 15W
Dimensions Approximatety 119 X 100 x 35 mm

(43/5 x 4 X 17/,6 in.) (w/h/d)

Mass Approximately 295 g (10 02)
Accessories not supplied
Thermal paper roll DD-PRP1 (specially designed for the DOM printers)

Electronic book player 00-1 OEX

Design and specifications are subject to change without notice,

ELECTRUNIC 800K PRINTER
SONY®
