Sony dav s 500 dav s 800

This is the 111 pages manual for sony dav s 500 dav s 800.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

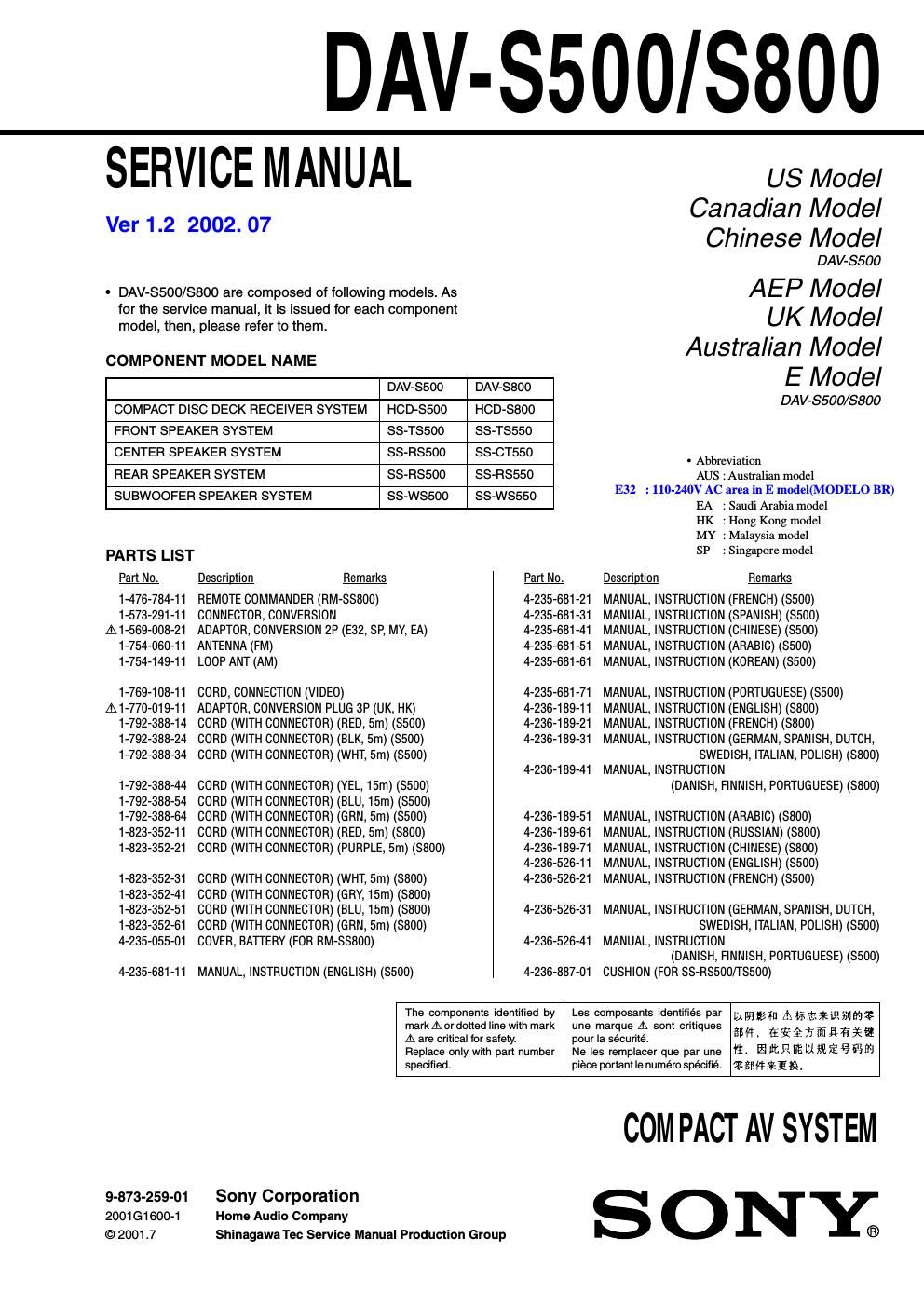

Page: 1 / 111
sony dav s 500 dav s 800

Extracted text from sony dav s 500 dav s 800 (Ocr-read)

Page 1

HCD-S500/S800 US Model Canadian Model HCD-S500 AEP Model UK Model E Model A ustr alian Model HCD-S500/S800 SERVICE MANUAL COMPACT AV SYSTEM Sony Corporation Home Audio Company Published by Sony Engineering Corporation 9-873-291-03 2002E1600-1 © 2002.05 HCD-S500/S800 are the amplifier, DVD/CD and tuner section in DAV-S500/S800. SPECIFICATIONS Ver 1.2 2002. 07 A UDIO POWER SPECIFICATIONSPOWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 6 ohm loads, both channels driven, from 120 – 10,000 Hz; rated 40 watts per channel minimum RMS power, with no more than 10 % total harmonic distortion from 250 milliwatts to rated output. Amplifier section S500 MODEL Stereo mode 40 W + 40 W (6 ohms at 1 kHz, THD 10 %) Surround mode Front: 40 W + 40 W Center*: 40 W Rear*: 40 W + 40 W (6 ohms at 1 kHz, THD 10 %) Subwoofer*: 80 W (3 ohms at 100 Hz, THD 10 %) S800 MODELStereo mode 50 W + 50 W (6 ohms at 1 kHz, THD 10 %) Surround mode Front: 50 W + 50 WCenter*: 50 W Rear*: 50 W + 50 W (6 ohms at 1 kHz, THD 10 %) Subwoofer*: 100 W (3 ohms at 100 Hz, THD 10 %) * Depending on the sound field settings and the source, there may be no sound output. Inputs (Analog) VIDEO 1, 2: Sensitivity: 150 mV Impedance: 50 kilohms Inputs (Digital) VIDEO 2 (optical): Sensitivity: – Outputs (Analog) VIDEO 1 (AUDIO OUT): Voltage: 2 V Impedance: 1 kilohms PHONES: Accepts low- and high-impedance headphones Outputs (Digital) DIGITAL OUT (CD) Sensitivity: – SACD/DVD systemLaser Semiconductor laser Signal format system NTSC or NTSC/PAL Frequency response (at 2 CH STEREO mode) DVD (PCM): 2 Hz to 22 kHz (±1.0 dB) CD: 2 Hz to 20 kHz ( ±1.0 dB) Signal-to-noise ratio More than 80 dB (VIDEO 1 (AUDIO) connectors only) Harmonic distortion Less than 0.03 % FM tuner sectionSystem PLL quartz-locked digital synthesizer system Tuming range: US, Canadian mode\ ls: Tuming range: 87.5 – 108.0 MHz (50 kHz step) Antenna FM wire antenna Antenna terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz AM tuner sectionSystem Tuner section: PLL quartz-locked digital synthesizer system T uning range US, Canadian models: – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) AEP, UK, Saudi Arabia models: 531 – 1,602 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna Loop antenna Video sectionInputs Video: 1 Vp-p 75 ohms Outputs Video: 1 Vp-p 75 ohms S-video:Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms GeneralPower requirements US, Canadian models: 120 V AC, 60 Hz AEP, UK models: 220 – 240 V AC, 50/60 Hz Australian and E models: 220 – 240 V AC, 50/60 Hz Mexican model: 120 V AC, 60 Hz Other models: 110 – 240 V/220 – 240 V AC, 50/60 Hz Power consumption 98 W (120 V AC) 98 W (230 V AC) Dimensions (approx.) 355 × 70 × 378 mm (14 × 2 7/8 × 15 inches) (w/h/d) incl. projecting parts Mass (approx.) 4.0 kg (9 lb 8 oz) Operating temperature 5 ˚C to 35 ˚C (41 ˚F to 95 ˚F) Operating humidity 5 % to 90 % Supplied accessories Design and specifications are subject to change without notice. Check that you have the following items: Speakers (5) - -Subwoofer (1)-AM loop antenna (1)-FM wire antenna (1)-Speaker cords (5m × 4, 15m × 2) (16ft. × 4, 49ft. × 2)-Video cord (1)-Remote commander (remote) RM-SS800 (1)-R6 (size AA) batteries (2)-Foot pads (15)-Speakers-connection and Installation (card) (1)-Quick reference for Remote commander (card) (1) Tuming range: 87.5 Tuming range: Other 108.0 MHz (100 kHz step)– 530 Model Name Using Similar Mechanism NEW Mechanism Type CDM-55D-DVBU8 Base Unit Name DVBU8 Optical Pick-up Name KHM-240AAA Photo : HCD-S500

Page 2

2 HCD-S500/S800 SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 0.15µFTo Exposed Metal Parts on Set 1.5kΩAC voltmeter (0.75V) Earth Ground CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing -Keep the temperature of soldering iron around 270˚C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. This caution label is located inside the unit. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
