Sony das r 1 a service manual
This is the 23 pages manual for sony das r 1 a service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony das r 1 a service manual (Ocr-read)

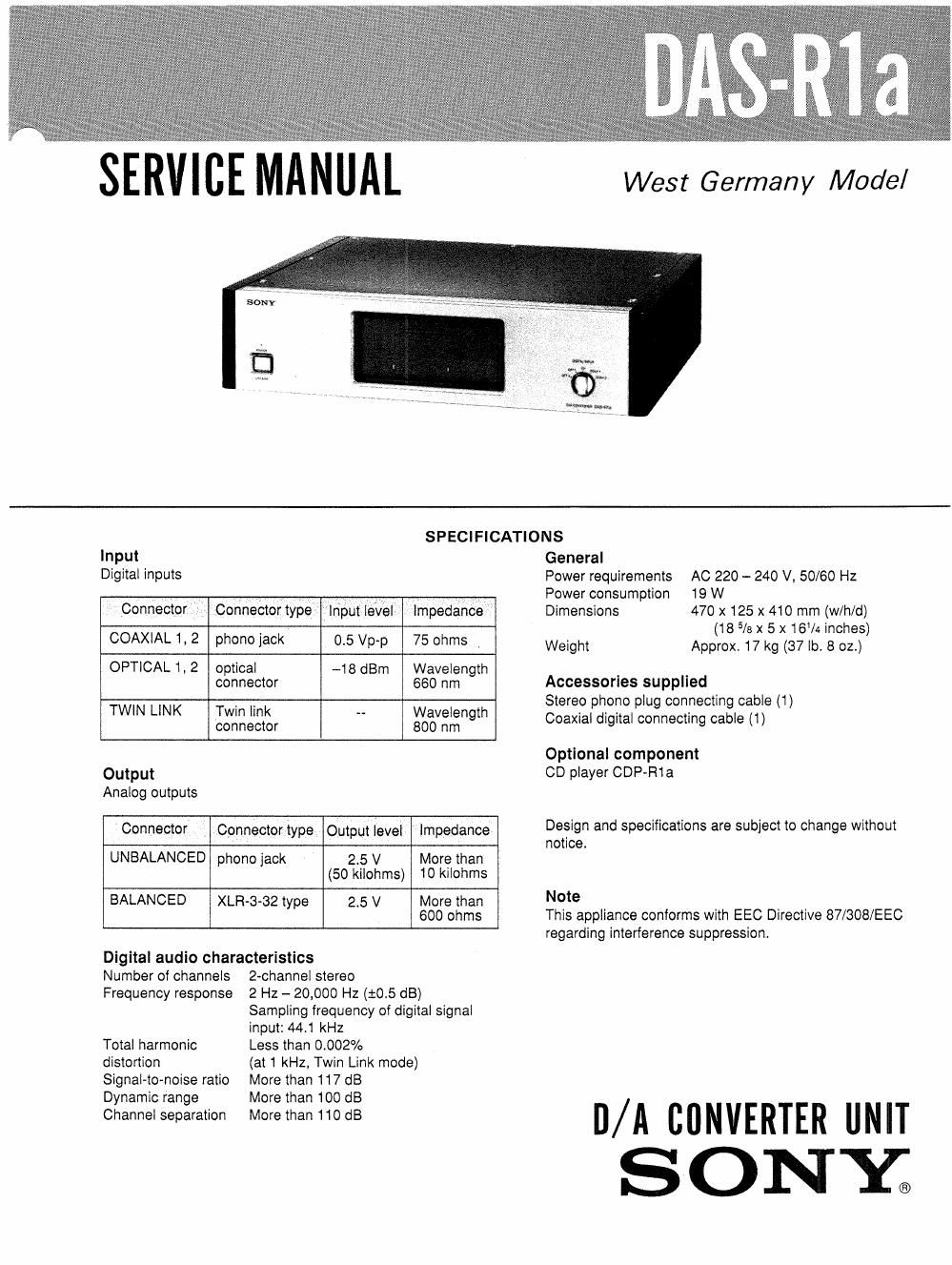

Page 1
SPECIFICATIONS
Input
Digital inputs
Connector 3 Connector type I Input level Impedance
COAXIAL 1, 2 phonojack 0.5 Vp~p 75 ohms g
OPTICAL 1, 2 optical -18 dBm Wavelength
connector 660 nm
TWIN LINK Twin link ~- Wavelength
connector 800 nm
Output
Analog outputs
Connector , Connector type Output level Impedance
UNBALANCED phonojack 2.5V More than
(50 kilohms) 10 kilohms
BALANCED XLR-3-82 type 25 V More than
600 ohms
Digital audio characteristics
Number of channels
2~channel stereo
Frequency response 2 Hz -- 20,000 Hz (10.5 dB)
Sampling frequency of digital signal
input: 44.1 kHz
Less than 0.002%
(at 1 kHz, Twin Link mode)
Total harmonic
distortion
Signalvto-noise ratio
Dynamic range
Channel separation
More than 117 dB
More than 100 dB
More than 110 dB
General
Power requirements AC 220 - 240 V, 50/60 Hz
Power consumption 19 W
Dimensions 470 x 125 x 410 mm (w/h/d)
(18 5/3 x 5 x 16/4 inches)
Weight Approx. 17 kg (37 lb. 8 02.)
Accessories supplied
Stereo phono plug connecting cable (1)
Coaxial digital connecting cable (1)
Optional component
CD player CDP-Rta
Design and specifications are subject to change without
notice.
Note
This appliance conforms with EEC Directive 87/308/EEC
regarding interference suppression.
n/A BllNVERTER UNIT
SONY;
