Sony d sj 301 service manual
This is the 26 pages manual for sony d sj 301 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony d sj 301 service manual (Ocr-read)

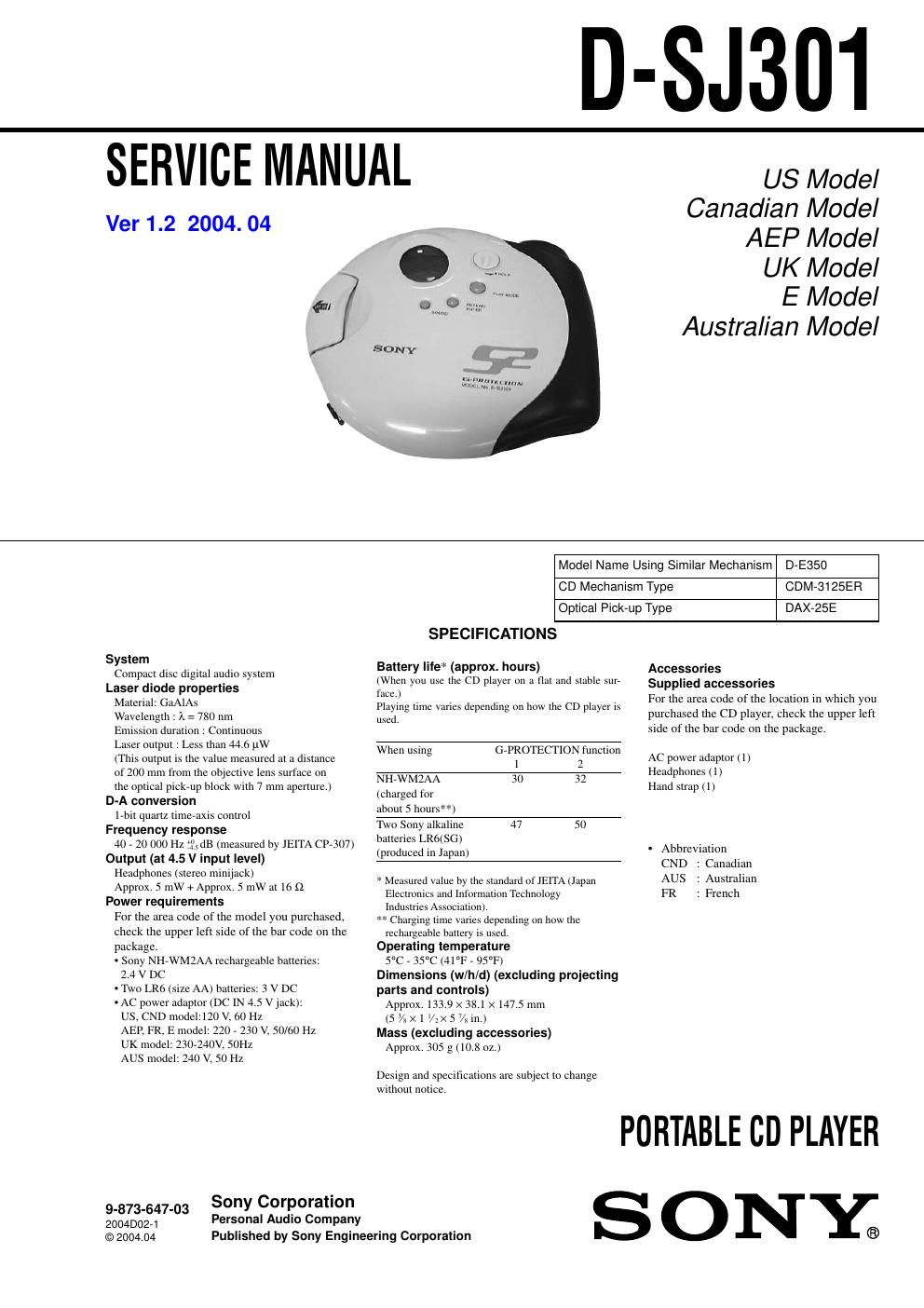

Page 1
2 Specifications ........................................................................\ .... 1 1. SERVICING NOTES ................................................... 3 2. GENERAL Locating the Controls ......................................................... 3 3. DISASSEMBLY 3-1. Lid, Upper, Cabinet (Front) .................................... 4 3-2. MD ASSY, Main Board ............................................. 4 3-3. Motor ASSY, Turn Table (Spindle) (M901) ............ 5 3-4. Motor ASSY (Sled) (M902), Optical Pick-up (DAX-25E) ...................................... 5 4. ELECTRICAL ADJUSTMENS ............................... 6 5. DIAGRAMS 5-1. Explanation of IC Terminals ....................................... 7 5-2. Block Diagram ........................................................... 11 5-3. Printed Wiring Boards –MAIN SECTION (1/2)– .... 12 5-4. Printed Wiring Boards –MAIN SECTION (2/2)– .... 13 5-5. Schematic Diagram –MAIN SECTION (1/3)– ....... 14 5-6. Schematic Diagram –MAIN SECTION (2/3)– ....... 15 5-7. Schematic Diagram –MAIN SECTION (3/3)– ....... 16 5-8. IC Block Diagram ..................................................... 17 6. EXPLODED VIEWS 6-1. Upper Lid Section ..................................................... 18 6-2. Cabinet Section ......................................................... 19 6-3. Optical pick-up Section (CDM-3125ER) ................. 20 7. ELECTRICAL PARTS LIST ................................... 21 ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PA R TS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PA RT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270 °C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. T ABLE OF CONTENTS This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. D ANGER Invisible laser radiation when open and interlock failed or defeated. A void direct exposure to beam. D-SJ301
Page 2
3 D-SJ301 The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up blo\ ck. Therefore, when checking the laser diode emission, observe from more than 30cm away from the objective lens. Before Replacing the Optical pick-up Block Please be sure to check thoroughly the parameters as per the Optical\ pick-up Block Checking Procedure (Part No. : 9-960-027-11) issued separately before replacing the optical Pick-up block. Note and specifications required to check are given below. - FOK output : IC601 yg pin When checking FOK, remove the lead wire to disc motor. - RF signal P-to-P value : 0.4 to 0.65Vp-p SECTION 1 SERVICING NOTES Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper panel is closed while turning ON the S801\ (push switch type). The following two checking methods for the laser diode are operable. Method : Emission of the laser diode is visually checked. 1. Open the upper lid. 2. Push the S801 as shown in Fig. 1 . 3. Check the object lens for confirming normal emission of the laser diode. If not emitting, there is a trouble in the automatic power control circuit or the optical pick-up. During normal operation, the laser diode is turned ON about 2.5 seconds for focus searching. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR B ASE UNIT Fig.1 Method to push S801 SECTION 2 GENERAL LOCATING THE CONTROLS CD player (front) 9 i (headphones) jack 5 Display 3VOL (volume) control 1 HOLD switch 6 PLAY MODE button 8SOUND button 7 REPEAT/ENTER button 4 DC IN 4.5 V (external power input) jack 23-way control key q;Buckle 3-way control key N /> : Play/AMS/search . : AMS/search x /CHG: stop/charge Pushtoward N /> OR . . Press x /CHG. S801 This section is extracted from instruction manual. CD player (inside) qsBattery compartment qa G-PROTECTION switch
