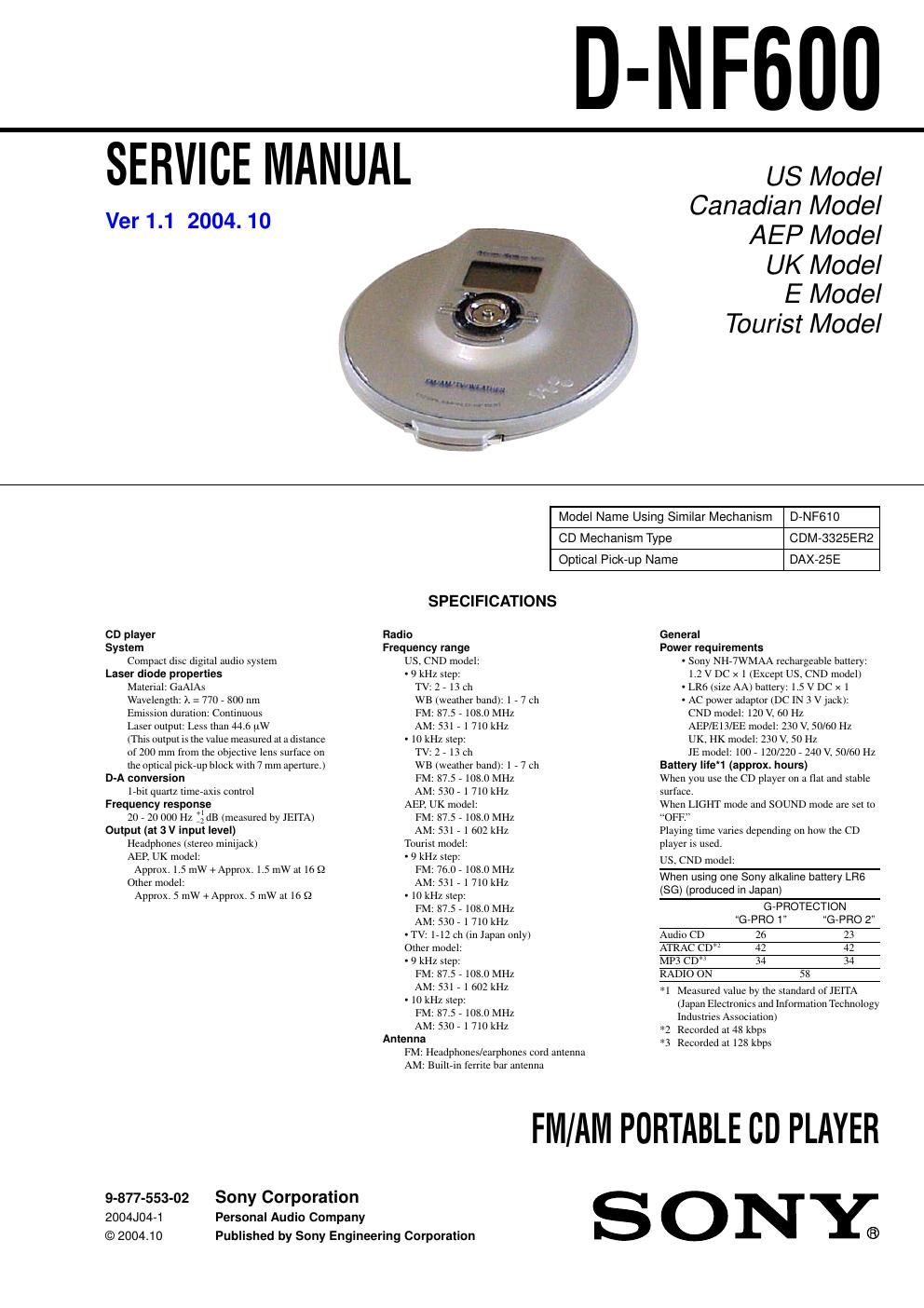

Sony d nf 600 service manual

Page 2

3 TABLE OF CONTENTS 1. SERVICE NOTE ................................................................. 4 2. GENERAL Locating the controls ............................................................... 5 3. DISASSEMBLY 3-1. Upper Lid Assy ................................................................... 7 3-2. Cabinet (Middle) Assy ........................................................ 7 3-3. Main Board, MD Assy ........................................................ 8 3-4. Sled Motor Assy (M602), Optical Pick-up (DAX-25E), Turntable Motor Assy (M601) ............................................. 8 4. ELECTRICAL ADJUSTMENTS T uner Section ........................................................................\ ... 9 CD Section ........................................................................\ .... 10 5. DIAGRAMS 5-1. IC Pin Descriptions ........................................................... 11 5-2. Note for Printed Wiring Boards and Schematic Diagrams .................................................. 18 5-3. Waveforms ........................................................................\ . 18 5-4. Block Diagram –CD Section– ........................................... 19 5-5. Block Diagram –Tuner Section– ....................................... 20 5-6. Block Diagram –Power Supply Section– .......................... 21 5-7. Printed Wiring Board –Main Section– .............................. 22 5-8. Schematic Diagram –Main Section (1/4)–......................... 24 5-9. Schematic Diagram –Main Section (2/4)–......................... 25 5-10. Schematic Diagram –Main Section (3/4)–......................... 26 5-11. Schematic Diagram –Main Section (4/4)–......................... 27 5-12. Printed Wiring Board –Switch Section– ........................... 28 5-13. Schematic Diagram –Switch Section–............................... 29 5-14. IC Block Diagrams ............................................................ 30 6. EXPLODED VIEWS 6-1. Upper Lid Section ............................................................. 32 6-2. Cabinet (Lower) Section ................................................... 33 6-3. CD Mechanism Deck Section (CDM-3325ER2) .............. 34 7. ELECTRICAL PARTS LIST ......................................... 35 z UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. D-NF600
