Sony d nf 420 service manual

This is the 38 pages manual for sony d nf 420 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 38
sony d nf 420 service manual

Extracted text from sony d nf 420 service manual (Ocr-read)

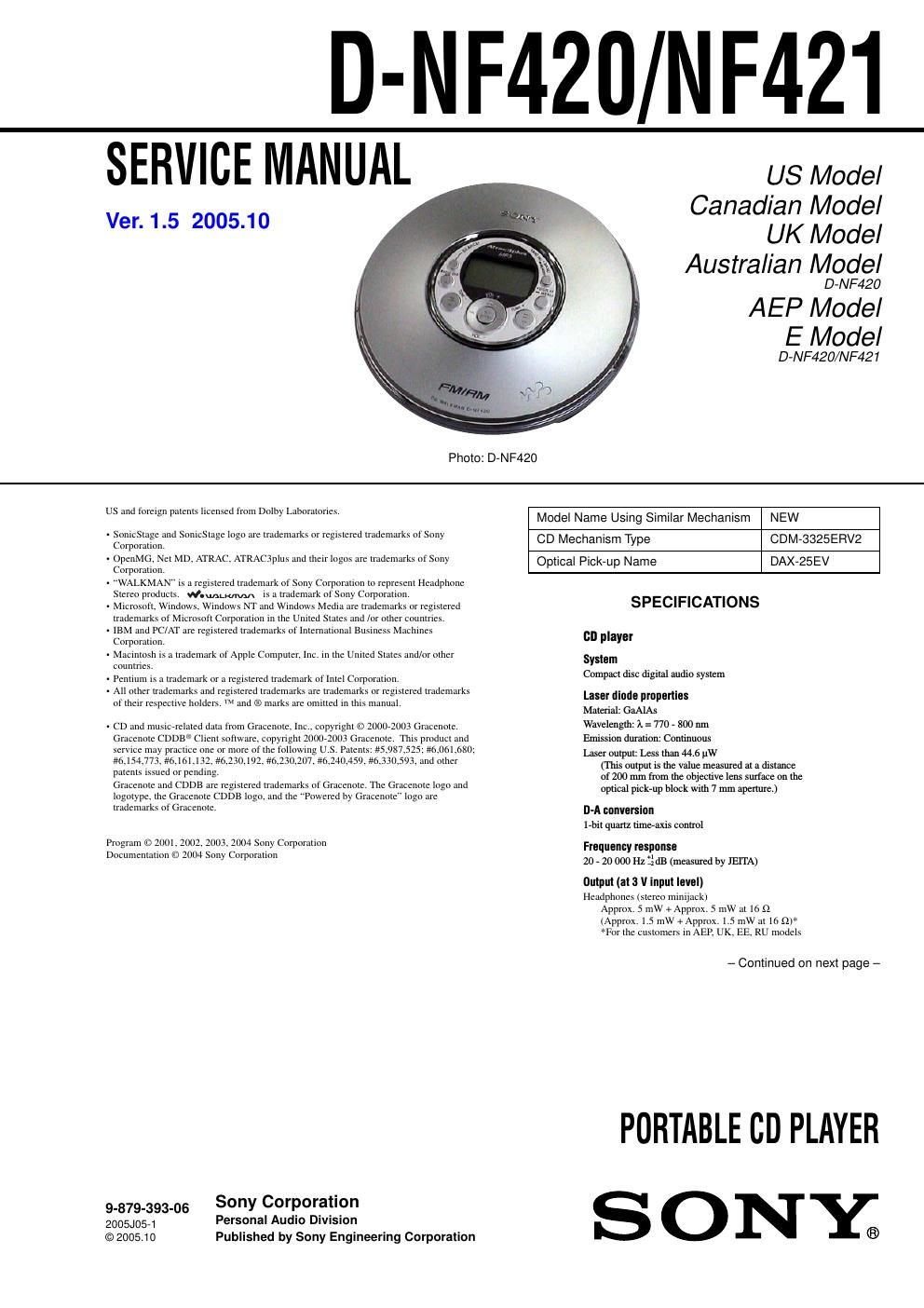

Page 1

2 D-NF420/NF421 ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS Q UE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PA RT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. "ATTERYLIFE  7HENUSINGA3ONYALKALINEBATTERY,23' PRODUCEDIN*APAN ' 02/4%#4)/. hv hv !UDIO#$   !4 2!##$    -0#$    2!$)//.   -EASUREDVALUEUSINGTHE*%)4!STANDARD*APAN %LECTRONICSAND)NFORMATION4ECHNOLOGY)NDUSTRIES !SSOCIATION 0LAYINGTIMESHOWNISAPPROXIMATEHOURS WHEN YOUUSETHEPLAYERONAmATANDSTABLESURFACEAND h0/7%23!6%vISSETTOh/.v . 4HISVALUEVARIESDEPENDINGONHOWTHEPLAYERIS USED  2ECORDEDATKBPS  2ECORDEDATKBPS /PERATINGTEMPERATURE #  # &  & $IMENSIONSWHD EXCLUDINGPROJECTINGPARTS ANDCONTROLS !PPROX§§MM b§ b§  bIN -ASSEXCLUDINGACCESSORIES !PPROXGOZ $ESIGNANDSPECIlCATIONSARESUBJECTTOCHANGE WITHOUTNOTICE Supplied AccessoriesEarphones Remote CD-ROM (SonicStage) AC power adaptor (Except US, Canadian models) Operating instructions Installation/Operating Guide - Abbreviation AUS: Australian model CND : Canadian model E/4 : Argentina model E19 : South African, Singapore, Malaysia, Vietnam and Indian model E19/1: Singapore, Malaysia and Thai model E19/2: Chilean and Peruvian model E92 : Panama, Venezuelan and Caribbian Can model EE : East European and Russian model MX : Mexican model RU : Russian model Ve r. 1.3 Radio Frequency range - AEP, UK, EE, RU * models FM: 87.5 - 108.0 MHz AM: 531 - 1 602 kHz - E19/2, E92, MX, E/4 * models9 kHz step: FM: 87.5 - 108.0 MHz AM: 531 - 1 710 kHz 10 kHz step: FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz - AUS, E19, E19/1 * models9 kHz step: FM: 87.5 - 108.0 MHz AM: 531 - 1 602 kHz 10 kHz step: FM 87.5 - 108.0 MHz AM: 530 - 1 710 kHz - US, CND * models9 kHz step: TV: 2 - 13 ch WB (weather band): 1 - 7 ch FM: 87.5 - 108.0 MHz AM: 531 - 1 710 kHz 10 kHz step: TV: 2 - 13 ch WB (weather band): 1 - 7 ch FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz *F or the area code of the model you purchased, check the upper left side of the bar code on the package. AntennaFM: Earphones cord antenna AM: Built-in ferrite bar antenna General Power requirements- LR6 (size AA) battery: 1.5 V DC × 1 - AC power adaptor (DC IN 3 V jack): 120 V, 60 Hz (US, CND, E92, MX models) 220 V, 50 Hz (E/4 model) 230 V, 50 Hz (E19, E19/1, E19/2, RU models) 240 V, 50 Hz (AUS model) 100 - 240 V, 50/60 Hz (other models)
