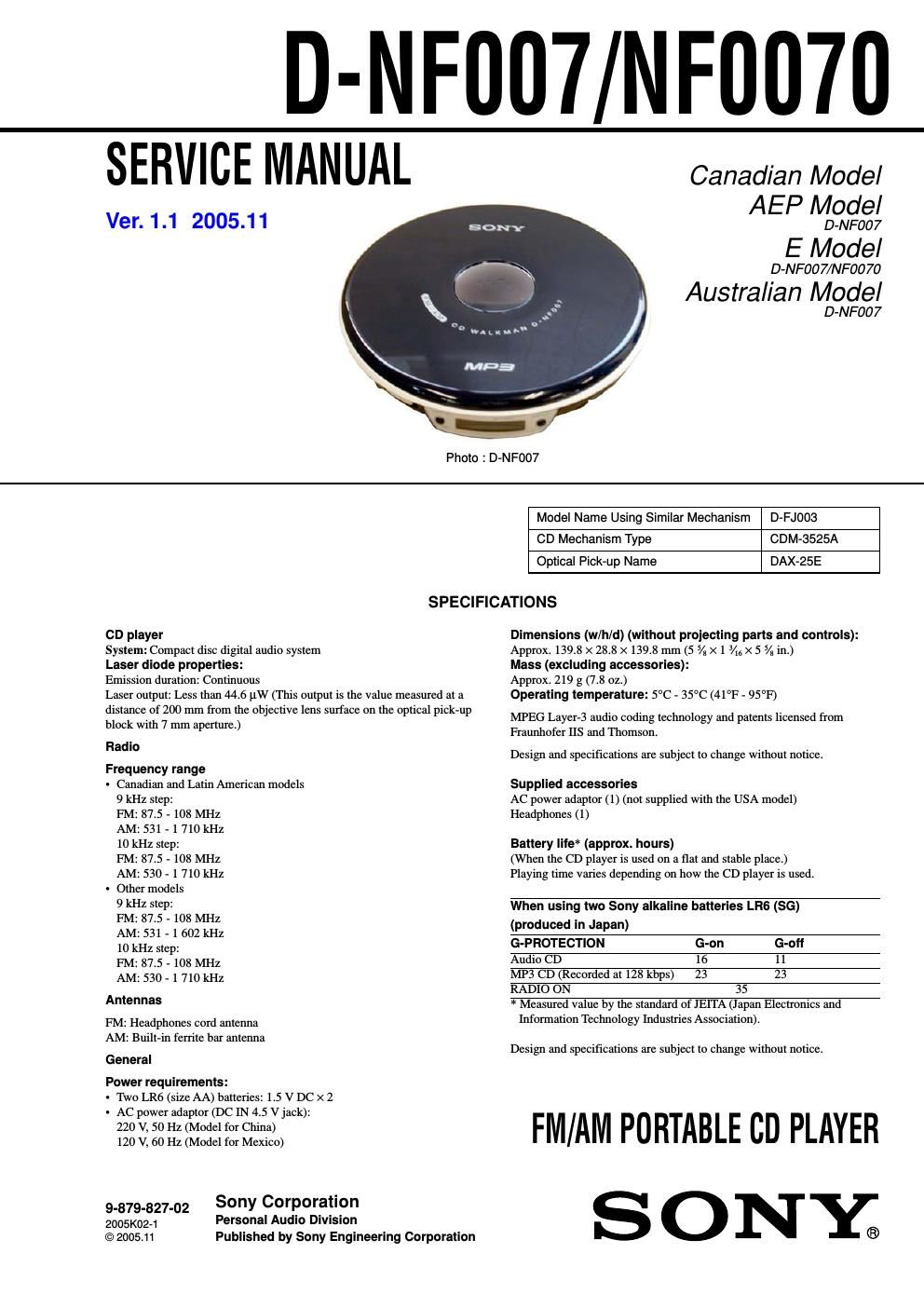

Page 1

D-NF007/NF0070

SERVICE MANUAL

Ver. 1.1 2005.11

Canadian Model
AEP Model

D-NF007
E Model
D-NF007/NF0070
Austral/an Model
D-NF007
Photo : D-NF007
Model Name Using Similar Mechanism D-FJ003
CD Mechanism Type CDM-3525A
Optical Pick-up Name BAX-25E

SPECIFICATIONS

CD player

System: Compact disc digital audio system

Laser diode properties:

Emission duration: Continuous

Laser output: Less than 44.6 11W (This output is the value measured at a
distance of 200 mm from the objective lens surface on the optical pick-up
block with 7 mm aperture.)

Radio

Frequency range
Canadian and Latin American models
9 kHz step:

FM: 87.5 - 108 MHz
AM: 531 - 1 710 kHz
10 kHz step:

FM: 87.5 - 108 MHz
AM: 530 - 1710 kHz
Other models

9 kHz step:

FM: 87.5 - 108 MHz
AM: 531 - 1602 kHz
10 kHz step:

FM: 87.5 - 108 MHz
AM: 530 - 1710 kHz

Antennas

FM: Headphones cord antenna
AM: Built-in ferrite bar antenna

General

Power requirements:
- Two LR6 (size AA) batteries: 15 V DC X 2
- AC power adaptor (DC lN 4.5 V jack):

220 V, 50 Hz (Model for China)

120 V, 60 Hz (Model for Mexico)

Sony Corporation

9-879-827-02
2005K0271 Personal Audio Division
©2005.11 Published by Sony Engineering Corporation

Dimensions (wlhld) (without proiecting parts and controls):
Approx. 139.8 X 28.8 x 139.8 mm (5 5/8 x l 3/.6 x 5 5/3 in.)

Mass (excluding accessories):

Approx. 219 g (7.8 oz.)

Operating temperature: 5°C - 35°C (41°F - 95°F)

MPEG Layer-3 audio coding technology and patents licensed from
Fraunhofer HS and Thomson.

Design and specifications are subject to change without notice.

Supplied accessories
AC power adaptor (1) (not supplied with the USA model)
Headphones (1)

Battery life* (approx. hours)
(When the CD player is used on a flat and stable place.)
Playing time varies depending on how the CD player is used.

When using two Sony alkaline batteries LR6 (SG)
(produced in Japan)

G-PROTECTION G-on G-Ofl
Audio CD 16 11
MP3 CD (Recorded at 128 kbps) 23 23
RADIO ON 35

4 Measured value by the standard of J'ElTA (Japan Electronics and
Information Technology Industries Association).

Design and specifications are subject to change without notice

FM/AM PORTABLE co PLAYER
S 0 NY.

Page 2

D-NF007/ N F0070

TABLE OF CONTENTS
1. SERVICING NOTES TTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT 3
2. GENERAL
. DISASSEMBLY
3-1. Disassembly Flow ............................................... 4

3-2. Upper Lid Assy, Cabinet (Middle) Assy,
Cabinet (Lower) Assy iiiiiiiiiiiiiiiiiiiiii
3-3. Optical Pick-Up (CDM-3525A), Main Board

4. ELECTRICAL ADJUSTMENT iiiiiiiiiiiiiiiiiiiiiiiiiiiii 6

5. DIAG RAMS

5-1. Block Diagram A CD/Power Section
SAZ. Block Diagram A Tuner Section A ..
53. Printed Wiring Board A Main Board (Side A)
54. Primed Wiring Board A Main Board (Side B)
5-5. Schematic Diagram A Main Board (1/3) A
5A6. Schematic Diagram A Main Board (2/3) A
57. Schematic Diagram A Main Board (3/3) A
SAS. IC Pin Function Description iiiiiiiiiiiiiiiiiii

6. EXPLODED VIEWS iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii 23

7. ELECTRICAL PARTS LIST .................................. 24

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

2

Notes on chip component replacement
0 Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be
damaged by heat.

F|exible Circuit Board Repairing
- Keep the temperature of the soldering iron around 270 C
during repairing.
a Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
- Be careful not to apply force on the conductor when soldering
or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the lead»
free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)

1" LEAD FREE MARK

Unleaded solder has the following characteristics.

- Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!

- Strong viscosity
Unleaded solder is more viscous (sticky. less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.

- Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A SUR LES
DIAGRAMMES SCHEMATIQUES ET LA LISTE DES PIECES
SONT CRITIQUES POUR LA SECURITE DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE MANUEL
OU DANS LES SUPPLEMENTS PUBLIES PAR SONY.
