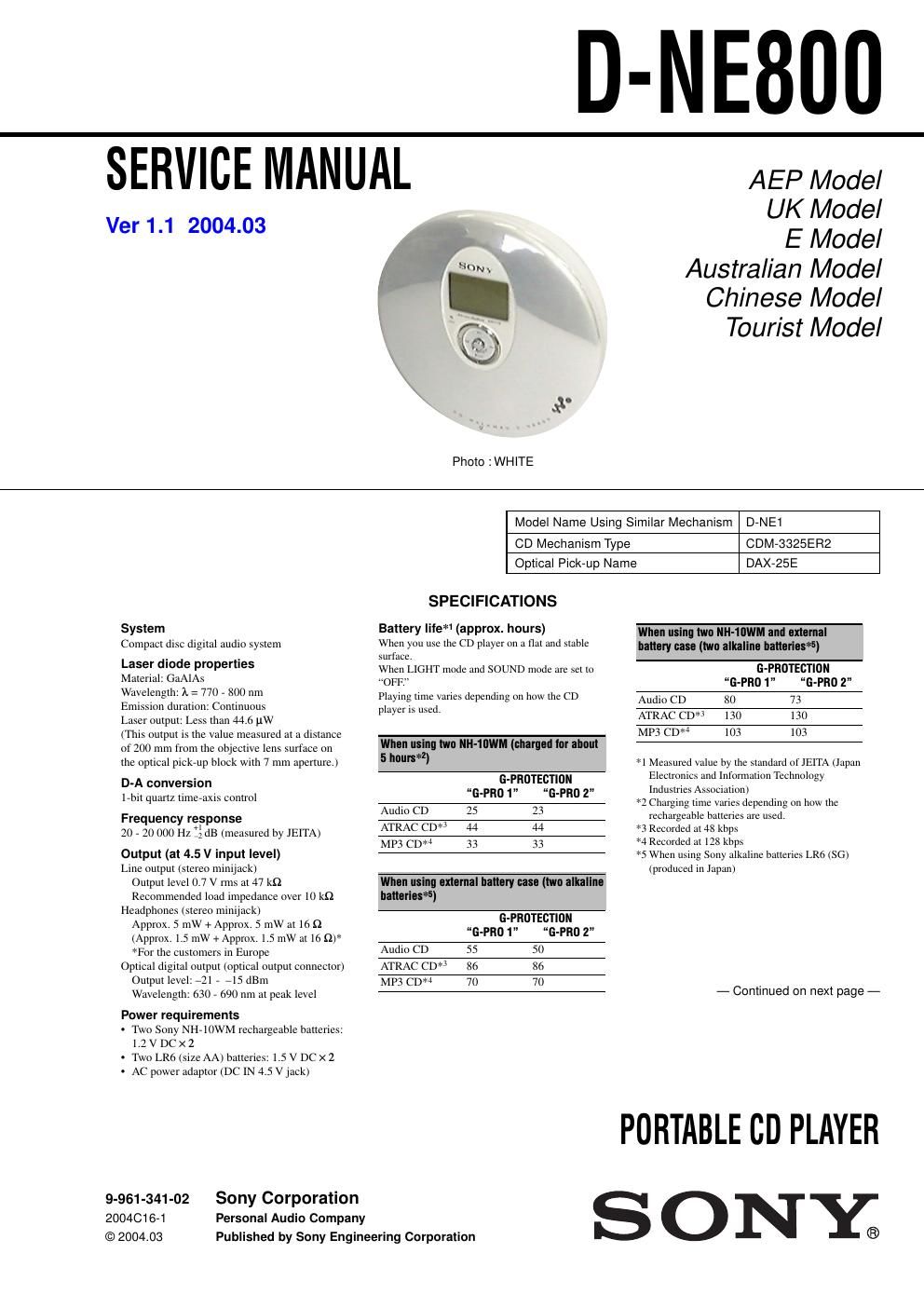

Sony d ne 800 service manual
This is the 40 pages manual for sony d ne 800 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony d ne 800 service manual (Ocr-read)
Page 1
2 D-NE800 TABLE OF CONTENTS 1. SERVICING NOTE ·························································· 4 2. GENERAL ·········································································· 6 3. DISASSEMBLY 3-1. CABINET (UPPER) BLOCK ASSY ···························· 8 3-2. CD MECHANISM DECK (CDM-3325ER2), UPPER LID BLOCK SECTION, MAIN BOARD ······· 9 3-3. SWITCH BOARD ······················································· 10 3-4. TURN TABLE MOTOR ASSY ·································· 10 3-5. OPTICAL PICK-UP (DAX-25E) ································ 11 4. ELECTRICAL CHECKING ········································· 12 5. DIAGRAMS ······································································ 13 5-1. BLOCK DIAGRAM ··················································· 14 5-2. PRINTED WIRING BOARD – MAIN BOARD (SIDE A) – ····································· 15 5-3. PRINTED WIRING BOARD – MAIN BOARD (SIDE B) – ····································· 16 5-4. SCHEMATIC DIAGRAMS – MAIN BOARD (1/4) – ············································· 17 5-5. SCHEMATIC DIAGRAMS – MAIN BOARD (2/4) – ············································· 18 5-6. SCHEMATIC DIAGRAMS – MAIN BOARD (3/4) – ············································· 19 5-7. SCHEMATIC DIAGRAMS – MAIN BOARD (4/4) – ············································· 20 5-8. PRINTED WIRING BOARD – SWITCH BOARD – ················································· 21 5-9. SCHEMATIC DIAGRAMS – SWITCH BOARD – ················································· 22 5-10. IC PIN FUNCTION DESCRIPTIONS ······················· 25 6. EXPLODED VIEWS 6-1. OVERALL ASSY ······················································· 30 6-2. UPPER LID BLOCK SECTION ································ 31 6-3. CABINET (UPPER) BLOCK SECTION ··················· 32 6-4. CD MECHANISM DECK SECTION (CDM-3325ER2) ························································· 33 7. ELECTRICAL PARTS LIST ······································· 34 Operating temperature5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 130× 20.7 × 130 mm (51⁄8×27⁄32× 5 1⁄8 in.) Mass (excluding accessories)Approx. 180 g (6.4 oz.) US and foreign patents licensed from Dolby Laboratories. Design and specif ications are subject to change without notice. Supplied accessoriesAC power adaptor (1) Rechargable batteries (2) Battery carrying case (1) Headphones/earphoues (1) Remote control (1) Charging Stand (1) Carrying pouch (1) External battery case (1) CD-ROM (SonicStage Simple Burner) (1) User's guide for SonicStage Simple Burner (1) Operating instruction
Page 2
3 D-NE800 Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Flexible Circuit Board Repairing -Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be dam- aged by heat. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION -INVISIBLE LASER RADIATION WHEN OPEN -DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS -CLASS 1M INVISIBLE LASER RADIATION WHEN OPEN -DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS On AC power adaptor -Use only the AC power adaptor supplied. If your CD player is not supplied with the one, use the AC-E30HG AC power adaptor. Do not use any other AC power adaptor. It may cause a malfunction. Polarity of the plug -Do not touch the AC power adaptor with wet hands. -Connect the AC power adaptor to an easily accessible AC outlet. Should you notice an abnormality in the AC power adaptor, disconnect it from the AC outlet immediately. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
