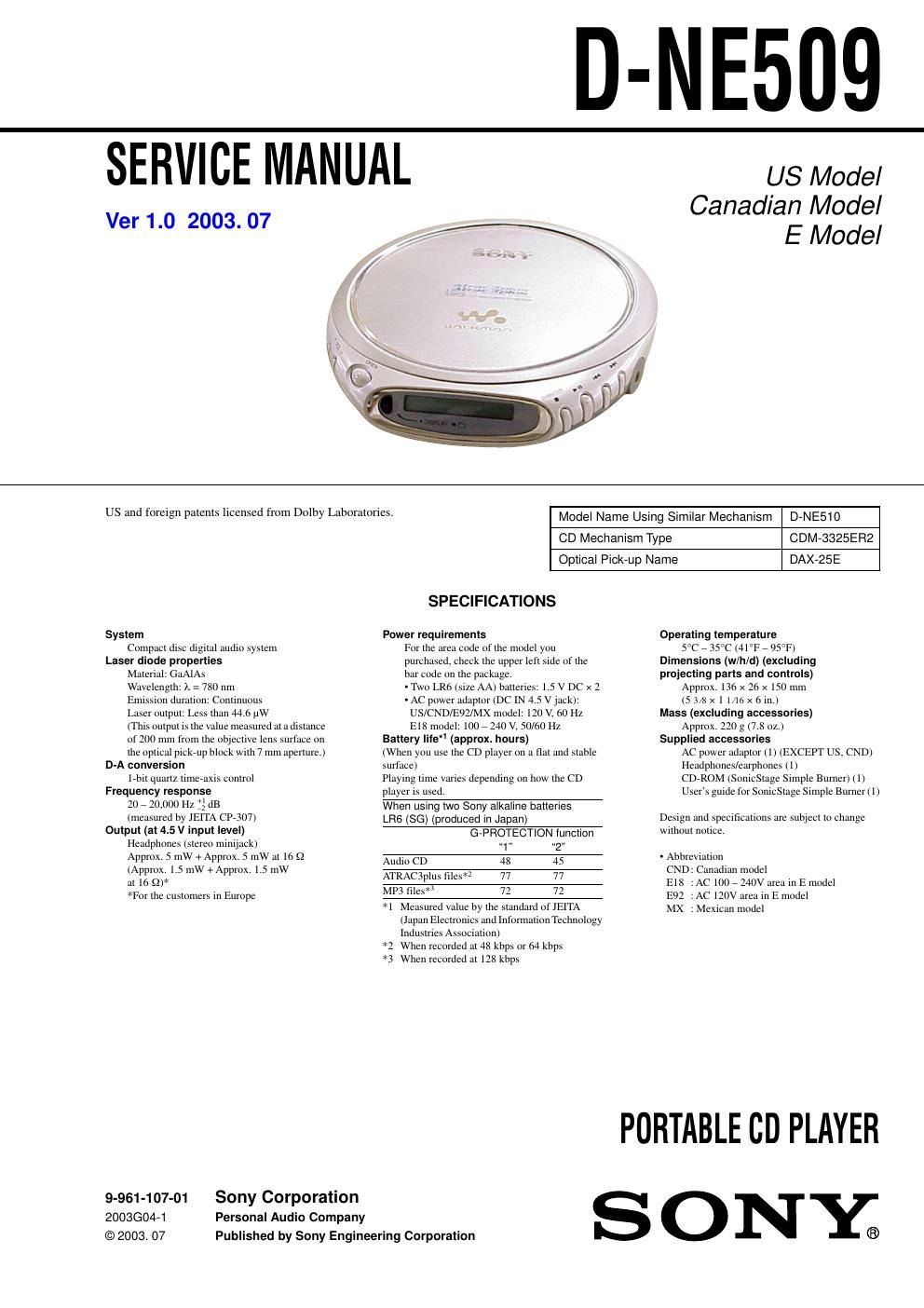

Sony d ne 509 service manual

Page 1

2 Flexible Circuit Board Repairing -Keep the temperature of the soldering iron around 270°C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. Notes on Chip Component Replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. TABLE OF CONTENTS 1. SERVICE NOTE ................................................................. 3 2. GENERAL Locating the controls ............................................................... 4 3. DISASSEMBL Y 3-1. Upper Lid Assy ................................................................... 5 3-2. Cabinet (Upper) Sub Assy ................................................... 6 3-3. MD Assy, Main Board ......................................................... 6 3-4. Sled Motor Assy (M501), Optical Pick-up, Turntable Motor Assy (M502) ............................................ 7 4. ELECTRICAL ADJUSTMENTS 4-1. Focus Bias Check ................................................................ 7 5. DIAGRAMS 5-1. IC Pin Descriptions ............................................................. 8 5-2. Block Diagram –CD Section– ........................................... 15 5-3. Block Diagram –Audio Section– ...................................... 16 5-4. Block Diagram –Power Supply Section– .......................... 17 5-5. Printed Wiring Board –Main Section– .............................. 18 5-6. Schematic Diagram –Main Section (1/2)–......................... 20 5-7. Schematic Diagram –Main Section (2/2)–......................... 21 5-8. IC Block Diagrams ............................................................ 22 6. EXPLODED VIEWS 6-1. Cabinet Section ................................................................. 23 6-2. CD Mechanism Section (CDM-3325ER2) ....................... 24 7. ELECTRICAL PARTS LIST ......................................... 25 D-NE509 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Music sources playable on this CD player You can play the following 3 music sources on this CD player: -Audio CDs -ATRAC3plus/ATRAC3 format files -MP3 files Usable disc forma ts You can use ISO 9660 Level 1/2, Joliet extension format discs only. ATRAC3plus and ATRAC3 ATRAC3plus, which stands for Adaptive Transform Acoustic Coding3plus is audio compression technology, developed from the ATRAC3 format. Though the ATRAC3plus format can compress music content to about 1/20 of its original size, you can still enjoy high quality sound. The available transfer bit rates are 64 kbps and 48 kbps. ATRAC3, which stands for Adaptive Transform Acoustic Coding3 is audio compression technology that satisfies the demand for high sound quality and high compression rates. The ATRAC3 format can compress music content to about 1/10 of their original size, which contributes to reduction of the media volume. The available transfer bit rates are 132 kbps, 105 kbps and 66 kbps. The usa ble n umber of groups and files -Maximum number of groups: 255 -Maximum number of files: 999 For details, refer to the supplied booklet SonicStage Simple Burner. MP3 files MP3, which stands for MPEG-1 Audio Layer3, a standard for audio files compression supported by the Motion Picture Experts Group, an ISO (International Organization for Standardization) working group, enables compression of audio files to about 1/10 of the data size of a standard compact disc. Since the MP3 encoding algorithm is public, there are various encoders/decoders that are compliant with this standard, including freeware that is available for no charge. Thus, the MP3 standard is widely used in the computer field. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
