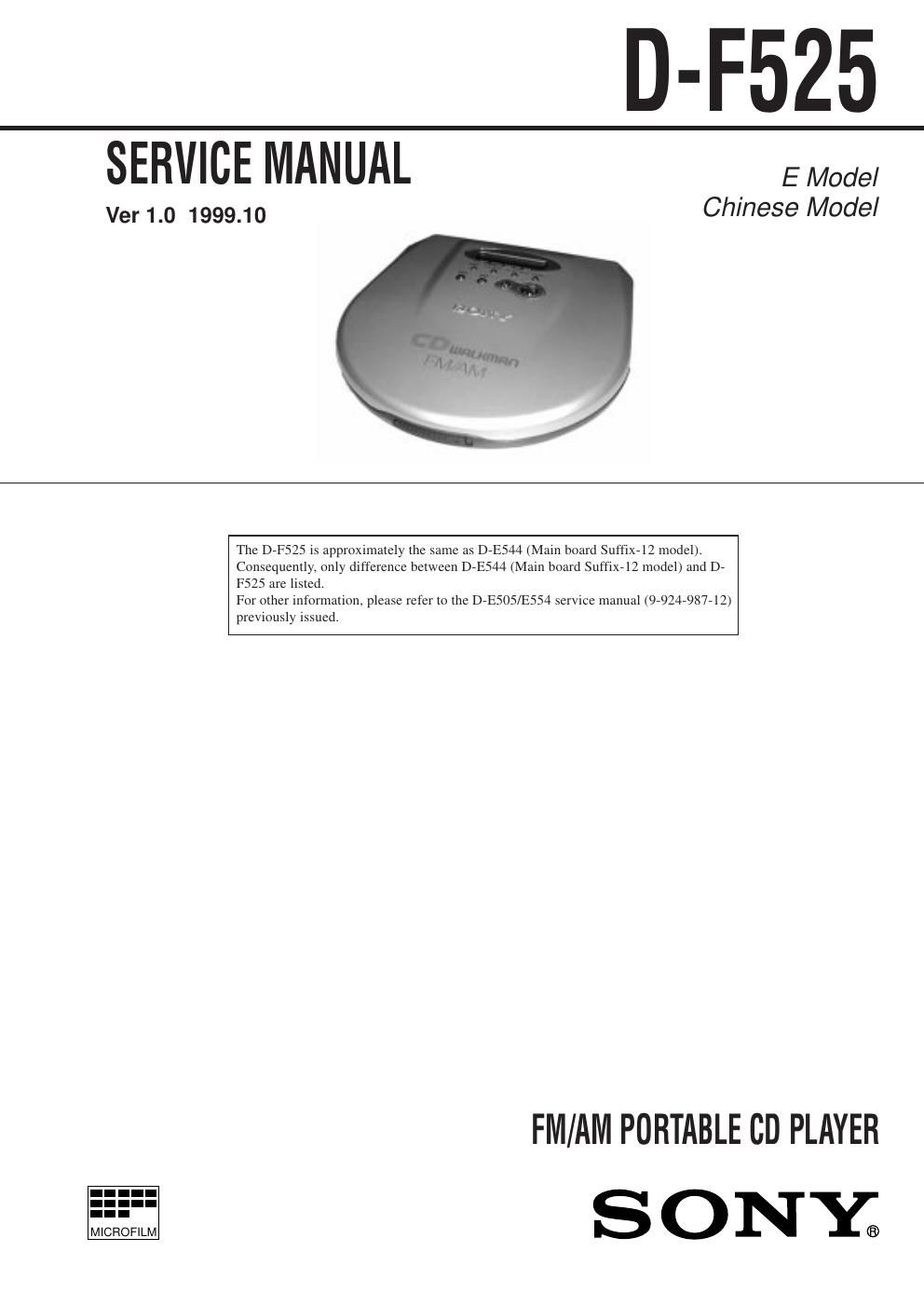

Sony d f 525 service manual

This is the 4 pages manual for sony d f 525 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4
sony d f 525 service manual

Extracted text from sony d f 525 service manual (Ocr-read)


Page 1

Ð 2 Ð D-E554 D-F525 EXPLODED VIEWS (Service Manual See page 41) r ! : Different portion (1) CABINET SECTION -1 13 11 9 not supplied 5 4 3 2 1 6 78 10 ! !! $ $ @ Ref.No Part No. Description Part No. Description 5 4-993-126-11 KNOB (OPEN) 7 4-211-639-01 COVER, LID (GRAY) ¥ ¥ ¥ (BLUE) 4-211-639-11 COVER, LID (WHITE) ¥ ¥ ¥ (SILVER) 9 4-993-135-01 SPRING (FULL OPEN) 10 X-4950-451-1 CABINET (UPPER) SUB ASSY 11 4-211-638-01 BUTTON (OPR) 13X-4950-438-1 LID SUB ASSY, UPPER (SILVER) (D-E554) X-4950-468-1 LID SUB ASSY, UPPER (BLUE) (D-E554)4-993-126-11 KNOB (OPEN) (SILVER) 4-993-126-21 KNOB (OPEN) (BLUE) 4-211-639-01 COVER, LID ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ 4-993-135-12 SPRING (FULL OPEN) X-4950-451-1 CABINET (UPPER) SUB ASSY (SILVER) X-4950-453-1 CABINET (UPPER) SUB ASSY (BLUE) 4-221-467-01 BUTTON (CONTROL) X-4952-399-1 LID SUB ASSY, UPPER (SILVER) X-4952-400-1 LID SUB ASSY, UPPER (BLUE)

Page 2

Ð 3 Ð The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. D-E554 D-F525 Ref.No Part No. Description Part No. Description 52 4-993-129-01 CABINET (LOWER) 59 4-993-130-01 LID, BATTERY CASE 60 4-984-751-01 KNOB (AVLS)4-993-129-01 CABINET (LOWER) (SILVER) 4-993-129-21 CABINET (LOWER) (BLUE) 4-993-130-01 LID, BATTERY CASE (SILVER) 4-993-130-21 LID, BATTERY CASE (BLUE) 4-984-751-01 KNOB (AVLS) (SILVER) 4-984-751-41 KNOB (AVLS) (BLUE) (2) CABINET SECTION-2 (Service Manual See page 42) D-E554 D-F525 Ref.No Part No. Description Part No. Description !110 X-4948-977-1 OPTICAL PICK-UP (DAX-11D) X-4950-476-1 OPTICAL PICK-UP (DAX-11E)ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ X-4950-476-1 OPTICAL PICK-UP (DAX-11E) (3) MECHANISM DECK SECTION (CDM-2911EBA) (Service Manual See page 43) (4) TUNER CONTROL SECTION 153 154 152 151 155 151 A-3328-665-A TUNER-REMOTE CONTROL UNIT (RM-CDF1) (SILVER) 151 A-3250-990-A TUNER-REMOTE CONTROL UNIT (RM-CDF1) (BLUE) 152 3-938-224-01 BRACKET, SUSPENDER 153 4-224-687-01 LID, BATTERY CASE (FOR RM-CDF1) (SILVER) 153 4-224-687-11 LID, BATTERY CASE (FOR RM-CDF1) (BLUE) 154 7-624-104-04 STOP RING 2.0, TYPE -E 155 1-791-925-11 CORD (WITH PLUG) Ref. No. Part No. Description Remark
