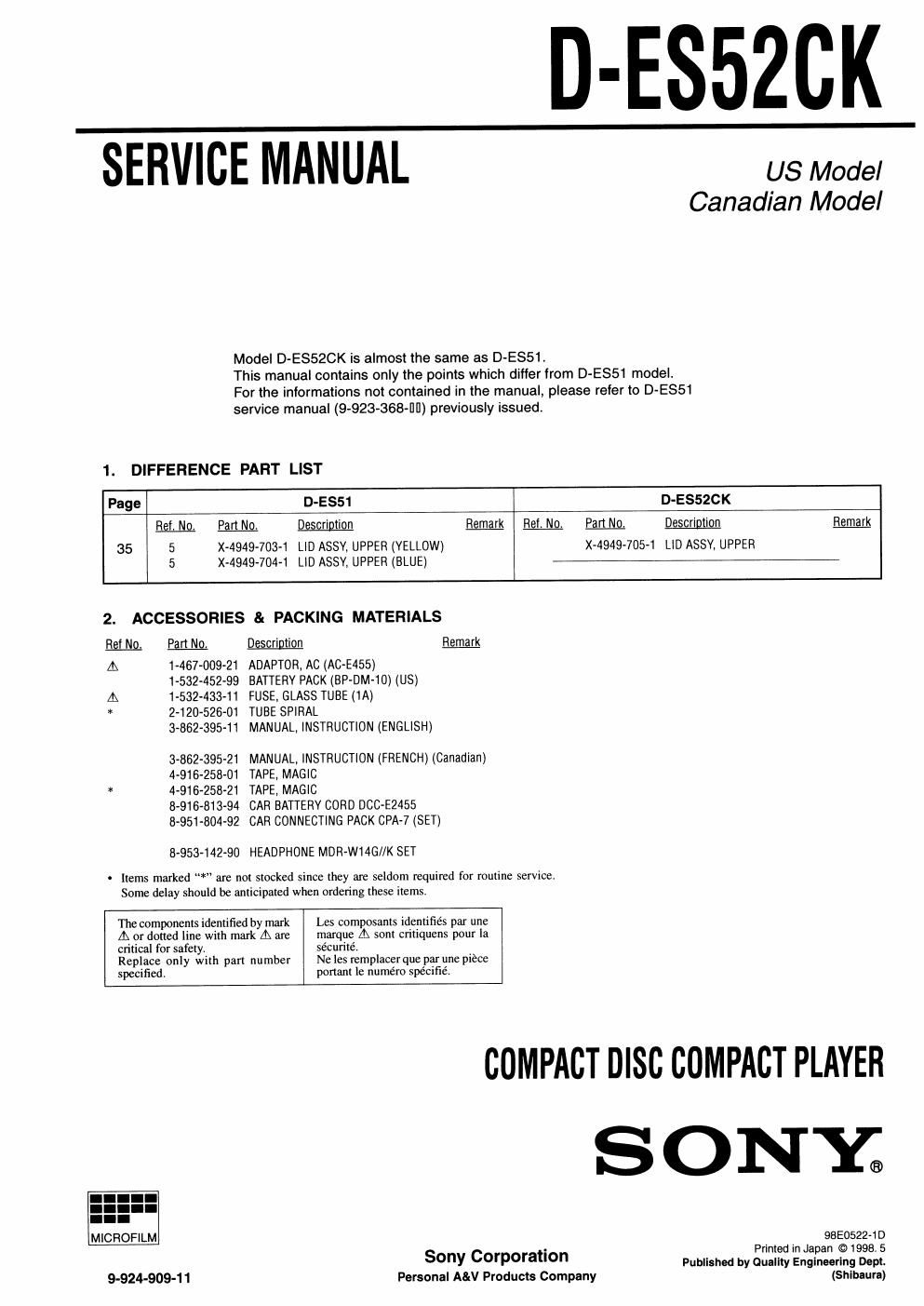

Page 1

D-ES52CK

SERVICE MANUAL

US Model
Canadian Model

Model D-E852CK is almost the same as D-ESSt.

This manual contains only the points which differ from D-ESSl model.
For the informations not contained in the manual, please refer to D-E351
service manual (9-923-368-flll) previously issued.

1. DIFFERENCE PART LIST

D-E551
Ref. No. Fan No. Description

35 5 X-4949-703-1 LID ASSY, UPPER (YELLOW)
5 X-4949-704-1 LID ASSV, UPPER (BLUE)

Page D-ESSZCK
Ref, No. Part No. Description

X-4949-705-1 LID ASSY, UPPER

Remark

2. ACCESSORIES & PACKING MATERIALS
Part No,

3
z
9

Description Remark

1-467-009-21
1-532-452-99
1-532-433-11
2-1 20-52601
3-862-395-11

*9 [>33

3-362-395-21
4-916-258-01
* 4-916-258-21
8-916-813-94
8-951-804-92

8953-14290

ADAPTOR, AC (AC-E455)

BATTERY PACK (BP-DM-lO) (US)
FUSE, GLASS TUBE (1A)

TUBE SPIRAL

MANUAL, INSTRUCTION (ENGLISH)

MANUAL, INSTRUCTION (FRENCH) (Canadian)
TAPE, MAGIC

TAPE, MAGIC

CAR BATTERY CORD DOC-E2455

CAR CONNECTING PACK CPA-7 (SET)

HEADPHONE MDR-W14Gl/K SET

. Items marked "* are not stocked since they are seldom required for routine service.

Some delay should be anticipated when ordering these items.

The components identified by mark
A or dotted line with mark A are
critical for safety.

Replace only with part number

Les composams identifies par une
marque A son! critiquens pour la
securité.

Ne les remplacer que par une piéce

Specified.

ponant 1e numero specifiet

9-924-909-1 1

COMPACT DISC COMPACT PLAYER

Sony Corporation

Personal A&V Products Company

SONY;

9BE0522») D

Printed In Japan (9 1998. 5

Published by Ouallty Engineering Dept.
(Shibaura)
