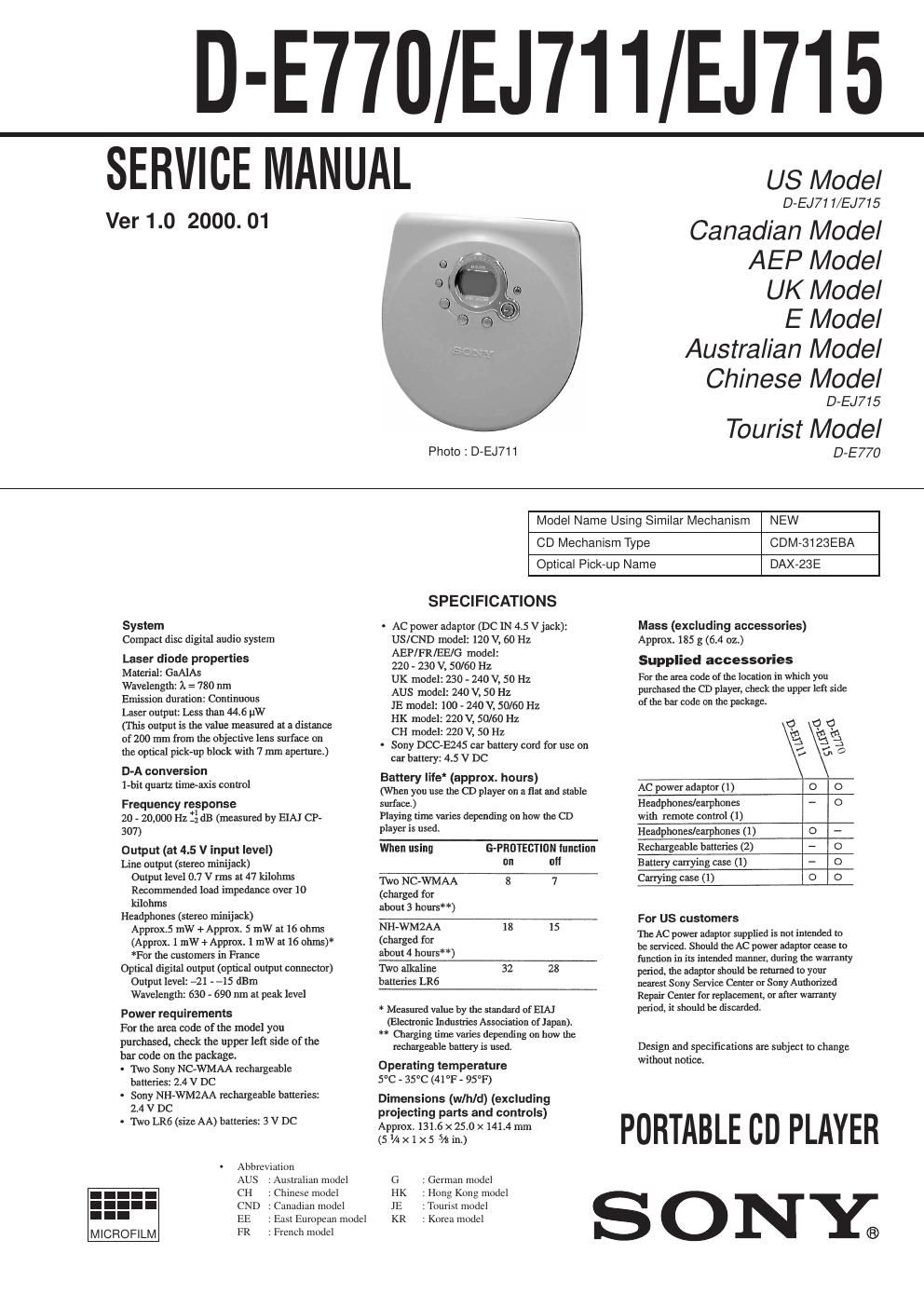

Sony d ej 711 service manual
This is the 18 pages manual for sony d ej 711 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony d ej 711 service manual (Ocr-read)
Page 1
Ñ 2 Ñ TABLE OF CONTENTS SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFƒS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéSES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPƒMENTS PUBLIƒS PAR SONY. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Flexible Circuit Board Repairing ¥ Keep the temperature of the soldering iron around 270 ¡C dur- ing repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board. (within 3 times) ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be dam- aged by heat. 1. SERVICING NOTES ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áá 3 2. GENERAL ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááááááááááá 4 3. DISASSEMBLY ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááá 5 3-1. Cabinet (Upper) ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááááááá 5 3-2. CDM-3123EBA and Main Board áááááááááááááááááááááááááááááááááááááááá 5 4. ELECTRICAL ADJUSTMENTS ááááááááááááááááááááááááááááááá 6 5. DIAGRAMS ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááááááááá 7 5-1. IC Pin Function Description áááááááááááááááááááááááááááááááááááááááááááááááá 7 5-2. IC Block Diagrams ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááá 9 5-3. Block Diagram ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááááááá 10 5-4. Printed Wiring Board ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááá 12 5-5. Schematic Diagram ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááá 15 6. EXPLODED VIEWS ááááááááááááááááááááááááááááááááááááááááááááááááááá\ á 18 6-1. Cabinet Section ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááááááá 18 6-2. Main Section ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááááááááááá 19 6-3. Mechanism Section (CDM-3123EBA) áááááááááááááááááááááááááááááá 20 7. ELECTRICAL PARTS LIST áááááááááááááááááááááááááááááááááááá 21
Page 2
Ñ 3 Ñ The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. Befor Replacing the Optical Pick-Up Block Please be sure to check thoroughly the parameters as par the Op- tical Pick-Up Block Checking Procedures (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. - FOK output: IC601 eg pin When checking FOK, remove the lead wire to disc motor. - RF signal P-to-P value: 0.35 to 0.65 Vp-pPrecautions for Checking Emission of Laser Diode Laser light of the equipment is focused by the object lens in the optical pick-up so that the light focuses on the reflection surface of the disc. Therefore, be sure to keep your eyes more then 30 cm apart from the object lens when you check the emission of laser diode. Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S801. (push switch type) The following two checking methods for the laser diode are oper- able. - Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S801 with a screwdriver having a thin tip as shown in Fig.1. Note: Do not push the detection lever strongly, or it may be bent or dam- aged. 3. Press the u button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pickup is faulty. In this operation, the objective lens will move up and down 5 times along with inward motion for the focus search. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig. 1 Method to push the S801 detection lever detection lever S801 main board SECTION 1 SERVICING NOTES
