Sony d ej 611 service manual
This is the 29 pages manual for sony d ej 611 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony d ej 611 service manual (Ocr-read)

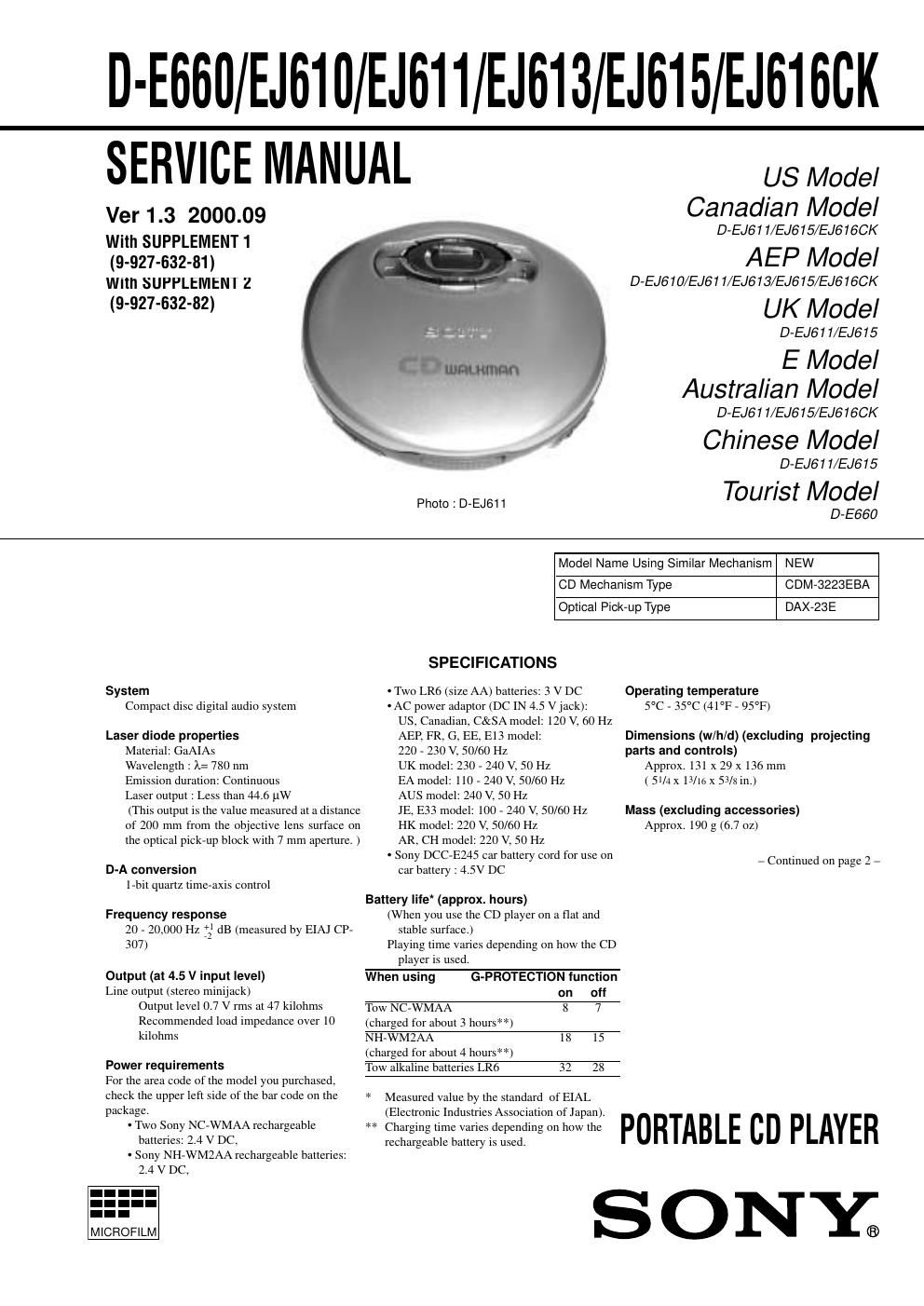

Page 1
Ð 2 Ð Specifications ............................................................................ 1 1. SERVICING NOTES ................................................... 3 2. GENERAL Locating the Controls ......................................................... 4 3. DISASSEMBLY 3-1. Cabinet (Rear) Sub ASSY, Cabinet (Front), Main Board ....................................... 6 3-2. MD ASSY ................................................................... 6 3-3. ÒMotor ASSY, Turn Table (Spindle) (M901)Ó ............ 7 3-4. ÒMotor ASSY (Sled) (M902)Ó, Optical Pick-up (DAX-23E) ...................................... 7 3-5. ÒLid, UpperÓ, Switch Unit .......................................... 7 4. ELECTRICAL ADJUSTMENS ............................... 8 5. DIAGRAMS 5-1. Explanation of IC Terminals ....................................... 9 5-2. Block Diagram ........................................................... 11 5-3. Printed Wiring Boards .............................................. 14 5-4. Schematic Diagram ................................................... 17 6. EXPLODED VIEWS 6-1. Cabinet Section ......................................................... 23 6-2. Optical pick-up Section (CDM-3223EBA) .............. 25 7. ELECTRICAL PARTS LIST ................................... 26 ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY.SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Flexible Circuit Board Repairing ¥ Keep the temperature of the soldering iron around 270¡C during repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be dam- aged by heat. TABLE OF CONTENTS This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. DANGER Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. Supplied accessories For the area code of the location in the which you purchased the CD player, check the upper left side of the bar code on the package. AC power adaptor (1)aÐ Headphones /earphones with Ða remote control (1) Headphones /earphones (1)aÐ Rechargeable batteries (2) Ða Battery carrying case (1) Ða Strap (1)aa For US customers The AC power adaptor supplied is not intended to be serviced. Should AC power adaptor cease to function in its intended manner, during the warranty period, the adaptor should be returned to your nearest Sony Service Center or Sony Authorized Repair Center for replacement, or after warranty period, it should be discarded. Design and specifications are subject to change without notice. D-EJ615 D-EJ611 ¥ Abbreviation AUS : Australian FR : French HK : Hong Kong AR : Argentina JE : Tourist G : German EA : Saudi Arabia CH : Chinese EE : East European C&SA : Central and South America E13 : AC220-230V area model E33 : AC100-240V area model
Page 2
Ð 3 Ð S801 The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe from more than 30cm away from the objective lens. Before Replacing the Optical pick-up Block Please be sure to check thoroughly the parameters as per the ÒOptical pick-up Block Checking ProcedureÓ (Part No. : 9-960-027-11) issued separately before replacing the optical Pick-up block. Note and specifications required to check are given below. ¥ FOK output : IC601 eg pin When checking FOK, remove the lead wire to disc motor. ¥ RF signal P-to-P value : 0.4 to 0.5Vp-p SECTION 1 SERVICING NOTES Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper panel is closed while turning ON the S801 (push switch type). The following two checking methods for the laser diode are operable. Method : Emission of the laser diode is visually checked. 1. Open the upper lid. 2. Push the S801 as shown in Fig. 1 . 3. Check the object lens for confirming normal emission of the laser diode. If not emitting, there is a trouble in the automatic power control circuit or the optical pick-up. During normal operation, the laser diode is turned ON about 2.5 seconds for focus searching. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig.1 Method to push S801
