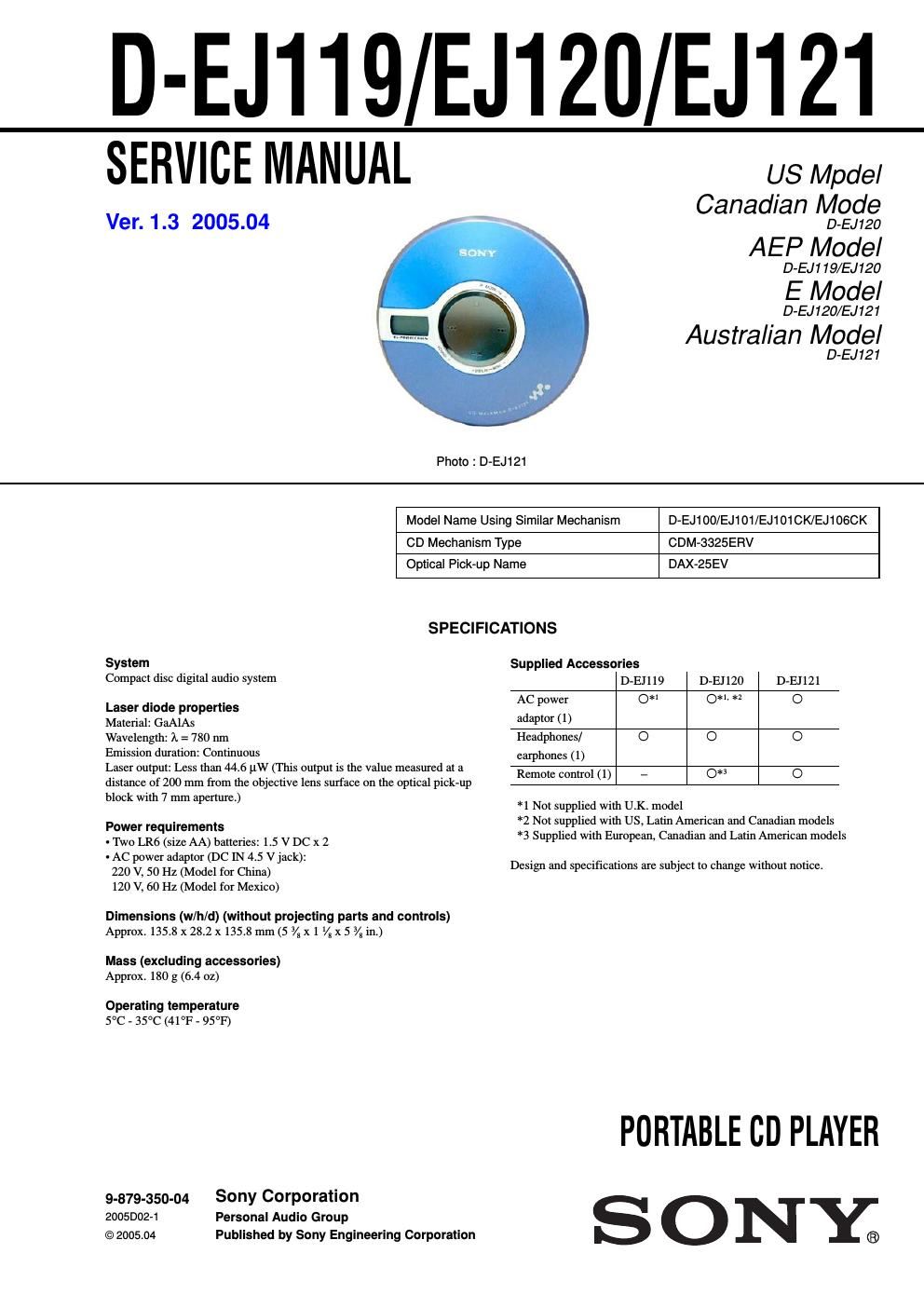

2 D-EJ119/EJ120/EJ121 Flexible Circuit Board Repairing-Keep the temperature of the soldering iron around 270 °C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement -Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Unleaded solder Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. -U nleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION -I NVISIBLE LASER RADIATION WHEN OPEN - DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS -C LASS 1M INVISIBLE LASER RADIATION WHEN OPEN - DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS Notes on the AC power adaptor -Use only the supplied AC power adaptor. Do not use any other AC power adaptor. - Connect the AC power adaptor to an easily accessible AC outlet. Should you notice an abnormality in the AC power adaptor, disconnect it from the AC outlet immediately. - Do not touch the AC power adaptor with wet hands. Polarity of the plug SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Specifications ........................................................................\ .... 1 1. SERVICING NOTE ................................................... 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 5 3-2. Upper Lid Assy, Cabinet (Upper) Assy, Cabinet (Lower) Assy ...................................................... 5 3-3. CD Mechanism Deck (CDM-3325ERV), Main Board ... 6 3-4. Motor Assy (Sled) (M901), Optical Pick-Up (DAX-25EV), Turn Table Motor Assy (Spindle) (M902) ............................................................. 7 4. ELECTRICAL ADJUSTMENT ............................. 8 5. DIAGRAMS 5-1. Block Diagrams ............................................................... 9 5-2. Printed Wiring Boards – Main Board (Side A) – ............ 10 5-3. Printed Wiring Boards – Main Board (Side B) – ............ 11 5-4. Schematic Diagram – Main Board (1/3) – ...................... 12 5-5. Schematic Diagram – Main Board (2/3) – ...................... 13 5-6. Schematic Diagram – Main Board (3/3) – ...................... 14 5-7. IC Pin Function Description ............................................ 18 6. EXPLODED VIEWS 6-1. Upper Lid Section ........................................................... 20 6-2. Cabinet Section ................................................................ 21 6-3. Optical Pick-Up Section (CDM-3325ERV) .................... 22 7. ELECTRICAL PARTS LIST .................................. 23 TABLE OF CONTENTS A TTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU D ANS LES SUPPÉMENTS PUBLIÉS PAR SONY. Ve r. 1.2
Page 2
