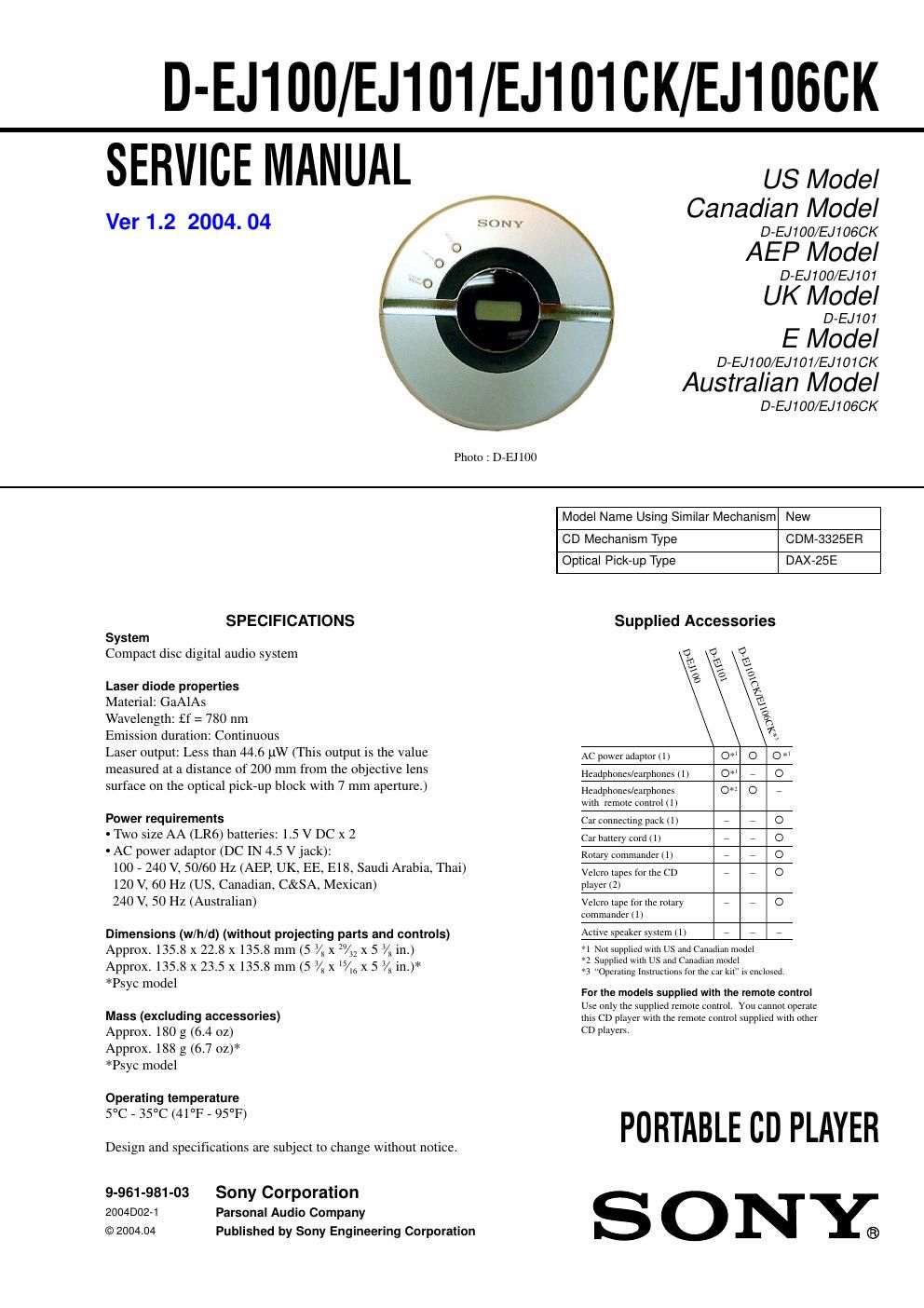

D-EJ100/EJ101/EJ101CK/EJ1060K

SERVICE MANUAL us Model

Canadian Model

D-EJ100/EJ1OBCK

AEP Model

D-EJ100/EJ10 1

UK Model

D-EJ101

E Model

D-EJ100/EJ101/EJ101CK

Australian Model
D-EJ100/EJ1OBCK

Ver 1.2 2004. 04

Photo : D-EJIOO

Model Name Using Similar Mechanism New

CD Mechanism Type CDM-3325ER
Optical Pick-up Type BAX-25E
SPECIFICATIONS Supplied Accessories
System
a
Compact disc digital audio system oi, <3; l")
Laser diode properties %
Material: GaAlAs 2;
Wavelength: H = 780 nm 30
Emission duration: Continuous 6,
Laser output: Le than 44.6 W (This output is the value AC WW, adapt, (1) OH O 0*!
measured at a distance of 200 mm from the objective lens Hmwmmkammm (1) OH , 0
surface on the optical pickrup block with 7 mm aperture.) Hemmmmkmmm O«: O ,
will] remote conttol ( 1)

Power requirements Car connecting pact (I) , , O
' Two size AA (LR6) batteries: 1.5 V DC x 2 Carballefy amt (t) , , O
- AC power adaptor (DC IN 4.5 V jack): on, more. to . . o

100 A 240 V, 50/60 Hz (AEP, UK, EE, E18, Saudi Arabia, Thai) Wm, Him 11,, [he CD , , O

120 V, 60 HZ (US, Canadian, C&SA, Mexican) player (2)

240 V, 50 Hz (Australian) Velcro [ape lor llie rotary , , 0

Commander (1)

Dimensions (wlh/d) (without projecting parts and controls) Acme PCERCWCT I
Approx. 1353 x 228 x 1353 mm (5 K/K x 29/712 x 5 T/X in.) *I Not supplicdvlitll L'S .nni Cnnntinnt rnotici
Approx. 135.8 x 23.5 x 135.8 mm (5 / x A. x 5 4 M 3 55:22:13Ellis:flflitfirizllfifil Wm

*Psyc model _ _
For the models supplied With the remote control
. _ Use only the rupplied remote control You Cannot operate
Mass (excluding accessories) this CD player ntth the remote control :supplled with other

Approx. 180 g (6.4 oz) CD plnyen.
Approx. 188 g (6.7 oz)*
*Psyc model

Operating temperature

<> PORTABLE CD PLAYER

Design and specifications are subject to change without notice.

9-961-981-03 Sony Corporation
2004D02r1 Parsonal Audio CornpanY N Y
©2004.04 Published by Sony Engineering Corporation ®

Page 2

D-EJ100/EJ101/EJ101CK/EJ106CK

DANGER
Invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.

CAUTION

Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.

Flexible Circuit Board Repairing
' Keep the temperature of the soldering iron around 270°C
during repairing.
- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
' Be careful not to apply force on the conductor when soldering
or unsoldering.

Notes on chip component replacement
' Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be
damaged by heat.

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the lead
free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)

EAD FREE MARK
Unleaded solder has the following characteristics.
- Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solderjoint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
- Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
- Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

TABLE OF CONTENTS
Specifications ............................................................................ l
1. SERVICING NOTES ........................................... 3
2. GENERAL
Locating the Controls ...................................................... 3

3. DISASSEMBLY
31. Upper Lid ASSY, Cabinet (Upper) Sub ASSY,
Cabinet (Lower) ASSY ...........
3»2. MD ASSY (CDMA3325ER), M n Board
33. Motor ASSY (Sled) (M902),
Optical Pick-up (DAXAZSE),
Turn Table Motor ASSY(SpindIe) (M90l) ..................... 6

4. ELECTRICAL ADJUSTMENS ..

5. DIAGRAMS
5-]. Block Diagram
52. Printed Wiring Boar . iMAIN Section (Side A)7
Printed Wiring Boards EMAIN Section (Side B)7
53 Schematic Diagram EMAIN SECTION (1/3}
5-4. Schematic Diagram EMAIN SECTION (2/3)
55. Schematic Diagram EMAIN SECTION (3/3)
5.5_ IC Pin Function Description ............................................ 16

6. EXPLODED VIEWS
6]. Upper Lid Section
62. Cabinet Section
63. Optical pick-up Section (CDM-3325ER)

19
20

7. ELECTRICAL PARTS LIST ............................... 21

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINEWITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL T0 SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFES PAR UNE MARQUE A sun LES
DIAGRAMMES SCHEMATIQUES ET LA LISTE DES PIECES SONT
CRITIQUES POUR LA sEcuanE DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIESES SONY
DONT LES NUMEROS SONT D0NNES DANS CE MANUEL ou
DANS LES SUPPEMENTs PUBLIES PAR SONY.
