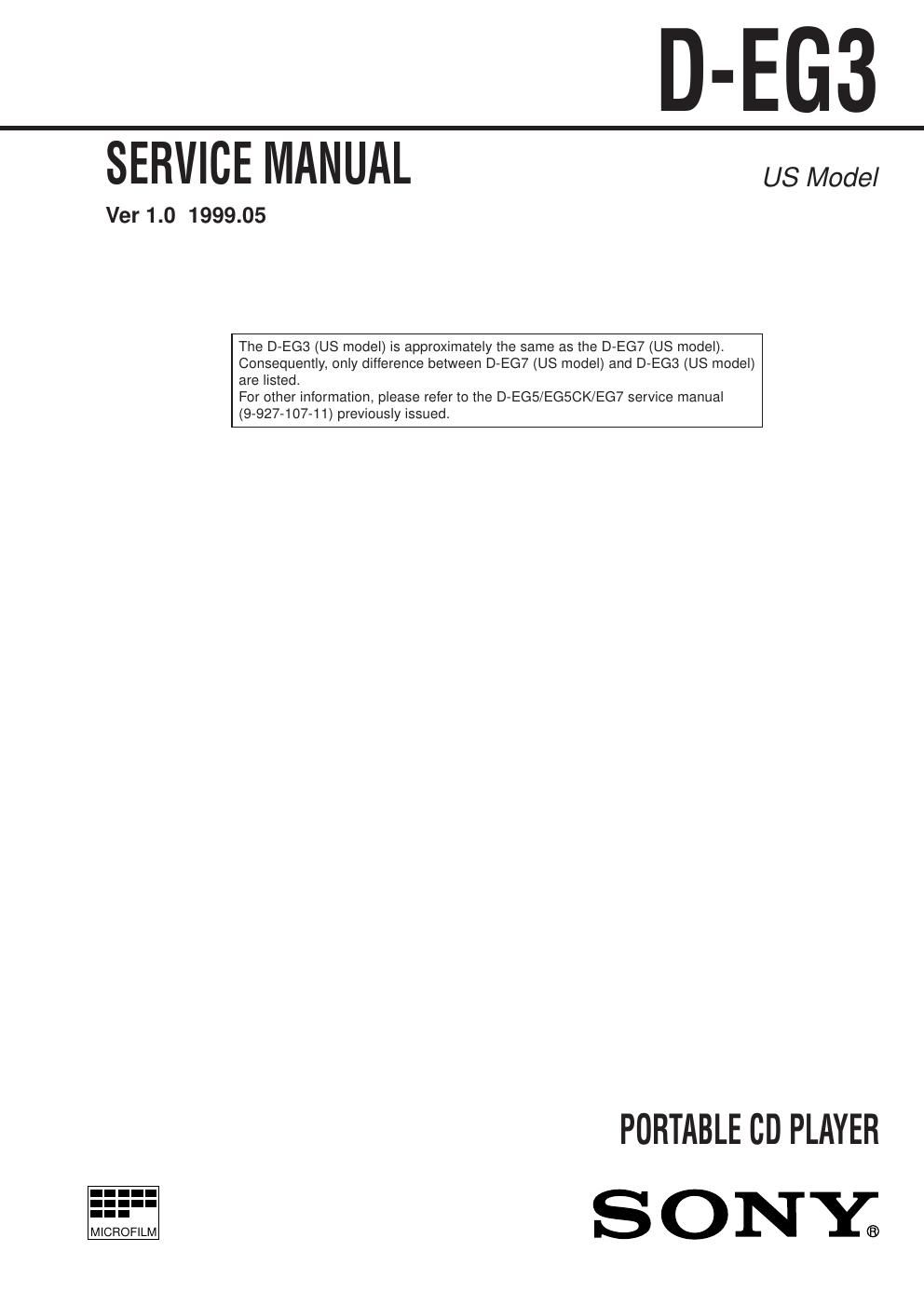

Sony d eg 3 service manual

Page 1

Ð 2 Ð r DIFFERENCE PARTS LIST EXPLODED VIEWS (Service Manual See page 28, 29) Ref. No. Part No. Description Part No. Description D-EG7 (US model) D-EG3 (US model) 14-215-416-11 BUTTON (OPR) (BLACK) (EG7) 4-215-416-21 BUTTON (OPR) (WHITE) (EG5,EG7) 44-215-417-11 BUTTON (PLAY MODE) (BLACK, CANADIAN BLACK) 4-215-417-21 BUTTON (PLAY MODE) (WHITE) 54-215-411-11 CABINET (FRONT) (BLACK) (EG7) 4-215-411-21 CABINET (FRONT) (WHITE) (EG5,EG7) 74-215-415-11 LID, BATTERY CASE (BLACK, CANADIAN BLACK) 4-215-415-21 LID, BATTERY CASE (WHITE) 84-215-425-11 BUTTON (STOP), RING (BLACK, CANADIAN BLACK) 4-215-425-21 BUTTON (STOP), RING (WHITE) 94-215-426-11 BUTTON (PLAY), RING (BLACK, CANADIAN BLACK) 4-215-426-21 BUTTON (PLAY), RING (WHITE) 10A-3328-180-A UPPER LID ASSY (BLACK) (EG7) A-3328-181-A UPPER LID ASSY (WHITE) (EG7) 133-336-395-01 SCREW (B2X10) (G), TAPPING (BLACK, CANADIAN BLACK) 7-621-255-65 SCREW (B2X10) (G), TAPPING (WHITE) 534-215-422-11 KNOB (HOLD) (BLACK, CANADIAN BLACK) 4-215-422-21 KNOB (HOLD) (WHITE) 584-215-420-11 BUTTON (SOUND) (BLACK, CANADIAN BLACK) 4-215-420-21 BUTTON (SOUND) (WHITE) 594-215-421-11 BUTTON (ESP) (BLACK, CANADIAN BLACK) 4-215-421-21 BUTTON (ESP) (WHITE) A-3328-319-A BRACKET FRONT (L) ASSY(CANADIAN BLACK) 64 A-3328-320-A BRACKET FRONT (L) ASSY (BLACK) A-3328-321-A BRACKET FRONT (L) ASSY (WHITE) 684-215-423-11 KNOB (AVLS) (BLACK, CANADIAN BLACK) 4-215-423-21 KNOB (AVLS) (WHITE) 704-215-412-11 CABINET (REAR) (BLACK, CANADIAN BLACK) 4-215-412-21 CABINET (REAR) (WHITE) A-3328-313-A BRACKET REAR (L) ASSY (CANADIAN BLACK) 71 A-3328-314-A BRACKET REAR (L) ASSY (BLACK) A-3328-315-A BRACKET REAR (L) ASSY (WHITE) A-3328-323-A BRACKET FRONT (R) ASSY (CANADIAN BLACK) 72 A-3328-324-A BRACKET FRONT (R) ASSY (BLACK) A-3328-325-A BRACKET FRONT (R) ASSY (WHITE) A-3328-317-A BRACKET REAR (R) ASSY (CANADIAN BLACK) 73 A-3328-318-A BRACKET REAR (R) ASSY (BLACK) A-3328-326-A BRACKET REAR (R) ASSY (WHITE)4-215-416-31 BUTTON (OPR) 4-215-417-31 BUTTON (PLAY MODE) 4-215-411-31 CABINET (FRONT) 4-215-415-21 LID, BATTERY CASE 4-215-425-21 BUTTON (STOP), RING 4-215-426-21 BUTTON (PLAY), RING A-3328-348-A UPPER LID ASSY 7-621-255-65 SCREW (B2X10) (G), TAPPING 4-215-422-31 KNOB (HOLD) 4-215-420-31 BUTTON (SOUND) 4-215-421-31 BUTTON (ESP) A-3328-322-A BRACKET FRONT (L) ASSY 4-215-423-31 KNOB (AVLS) 4-215-412-31 CABINET (REAR) A-3328-316-A BRACKET REAR (L) ASSY A-3328-312-A BRACKET FRONT (R) ASSY A-3328-327-A BRACKET REAR (R) ASSY ACCESSORIES & PACKING MATERIALS (Service Manual See page 34) D-EG7 (US model) D-EG3 (US model) Part No. Description Part No. Description 4-220-240-01 STRAP (BLACK), BELT (EG7) 4-220-241-01 STRAP (WHITE), BELT (EG7) 8-953-273-95 HEADPHONE MDR-G051LP/B2 SET (EG7)4-220-774-01 STRAP (PHYC), BELT 8-953-342-80 HEADPHONE, STEREO MDR-24//C6 SET 9-927-131-11 Sony Corporation Personal Audio Company 99E0218-1 Printed in Japan © 1999.5 Published by General Engineering Dept.
