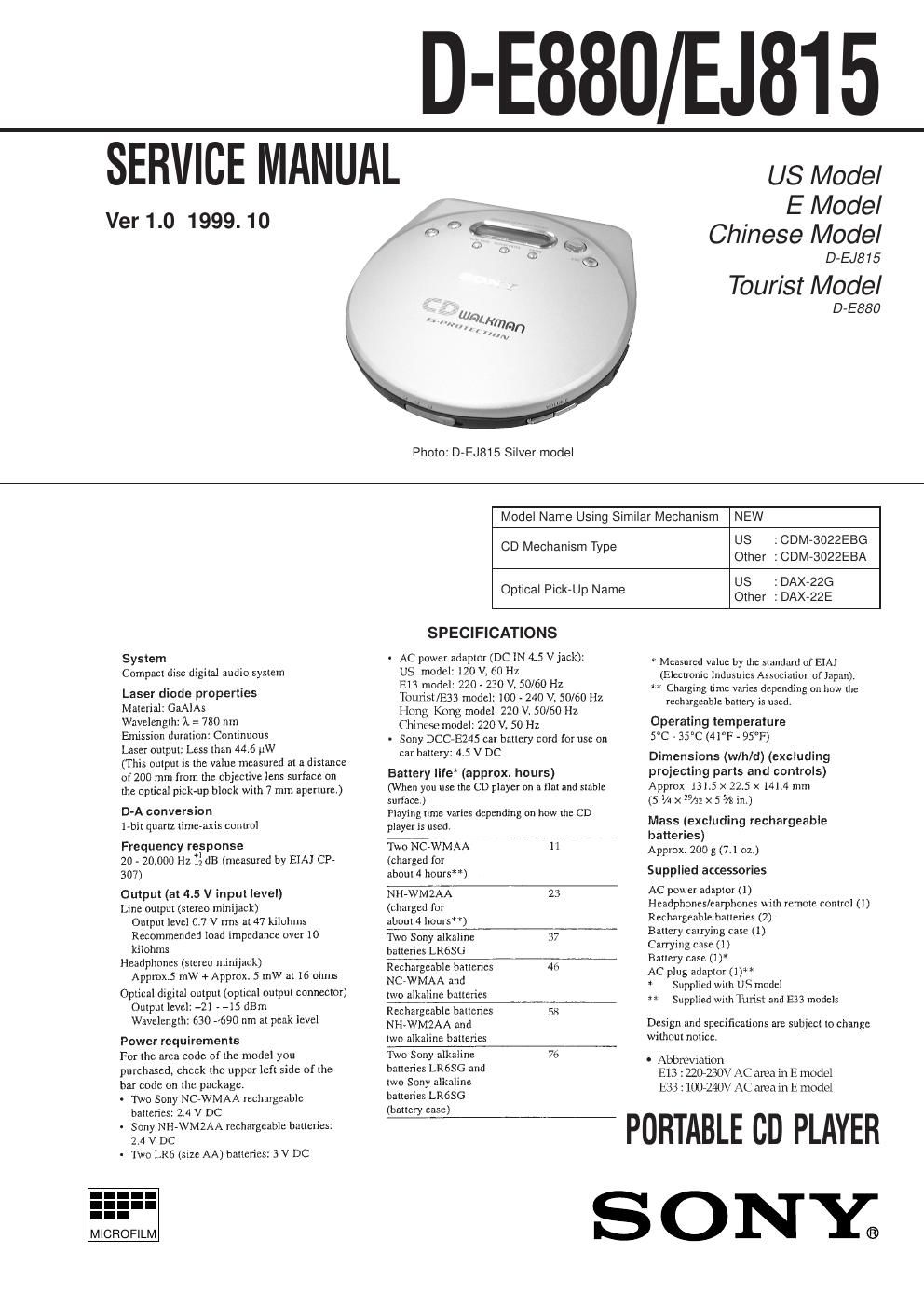

Page 1

D-E880/EJ815

SERVICE MANUAL

Ver 1.0 1999.10

Photo: D-EJ815 Silver model

US Model
E Model
Chinese Model

D-EJ815

Tourist Model

D-E880

System
Compact disc digital audio system

Laser diode properties

Material: GaAlAs

Wavelength: A = 780 nm

Emission duration: Continuous

Laser output: Less than 44.6 oW

(This output is the value measured at a distance
of 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)

D-A conversion
1»brt quartz timevaxis control

Frequency response
20 - 20,000 Hz ii as (measured by BA] cp-
307)

Output (at 4.5 V input level)
Line output (stereo minijack)
Output level 0.7 V ms at 47 kilohms
Recommended load impedance over 10
kilohms
Headphones (stereo nrinijack)
Approx.5 rnW + Approx. 5 mW at 16 ohms
Optical digital output (optical output connector)
Output level: «21 - ~15 dBm
Wavelength: 630 «690 nm at peak level

Power requirements

For the area code of the model you

purchased, check the upper left side of the

hat code on the package.

s No Sony NC-WMAA rechargeable
batteries: 2.4 V DC

- Sony NH-WMZAA rechargeable batteries:
2.4 V DC

' Two LR6 (size AA) batteries: 3 V DC

MICROFILM

Model Name Using Similar Mechanism NEW

CD Mechanism Type

US :CDM-3022EBG
Other :CDM-3022EBA

Optical Pick-Up Name

US : BAX-22G
Other : BAX-22E

SPECIFICATIONS

AC power adaptor (DC lN 4.5 V jack):

US model: 120 V, 60 Hz

E13 model: 220 - 230 V. 50/60 Hz
Tourist/E33 model: 100 - 240 V, 50/60 Hz
Hong Kong model: 220 V, 50/60 Hz
(lunese model: 220 V. 50 Hz

Sony DCCvE245 car battery cord for use on
car battery: 4.5 V DC

Battery life (approx. hours)
(when you use the CD player on a liar and stable

surface.)
Playing time varies depending on how the CD

player is used.

TWO NC-WMAA ll
(charged for
about 4 hours)

(charged for
about 4 hours)

No Sony alkaline 37
batteries LRGSG

Rechargeable batteries 46
NC»WMAA and

two alkaline batteries

Rechargeable batteries 58

NHvWMZAA and
two alkaline batteries
1W0 Sony alkaline 7%:
batteries LRESG and
two Sony alkaline
batteries LkosG
(battery case)

* Measured Value by the standard of EM}
(Electronic lndusuies Association of lapan).
Charging time varies depending on how the

rechargeable battery is used.

Operating temperature
5°C - 35"C (41°F - 95°F)

Dimensions (w/h/d) (excluding
projecting parts and controls)
Approxr 131.5 X 22.5 X MIA nrrn

(5 I/ax19/22x55/tin.)

Mass (excluding rechargeable
batteries)
Approx. 200 g (7.1 oz.)

Supplied accessories

AC power adaptor (l)

Headphones/earphones with remote control (I)
Rechargeable batteries (2)

Battery carrying case (I)

Carrying case (1)

Battery case (I )*

AC plug adaptor (1)

* Supplied with us model

M Supplied wtth Turist and 533 models

Design and specifications are subject to change
without notice.

0 Abbreviation
E13 : 220-sz AC artea in E model
E33 :Im-24UV AC area in E model

PORTABLE CD PLAYER

SONYa
