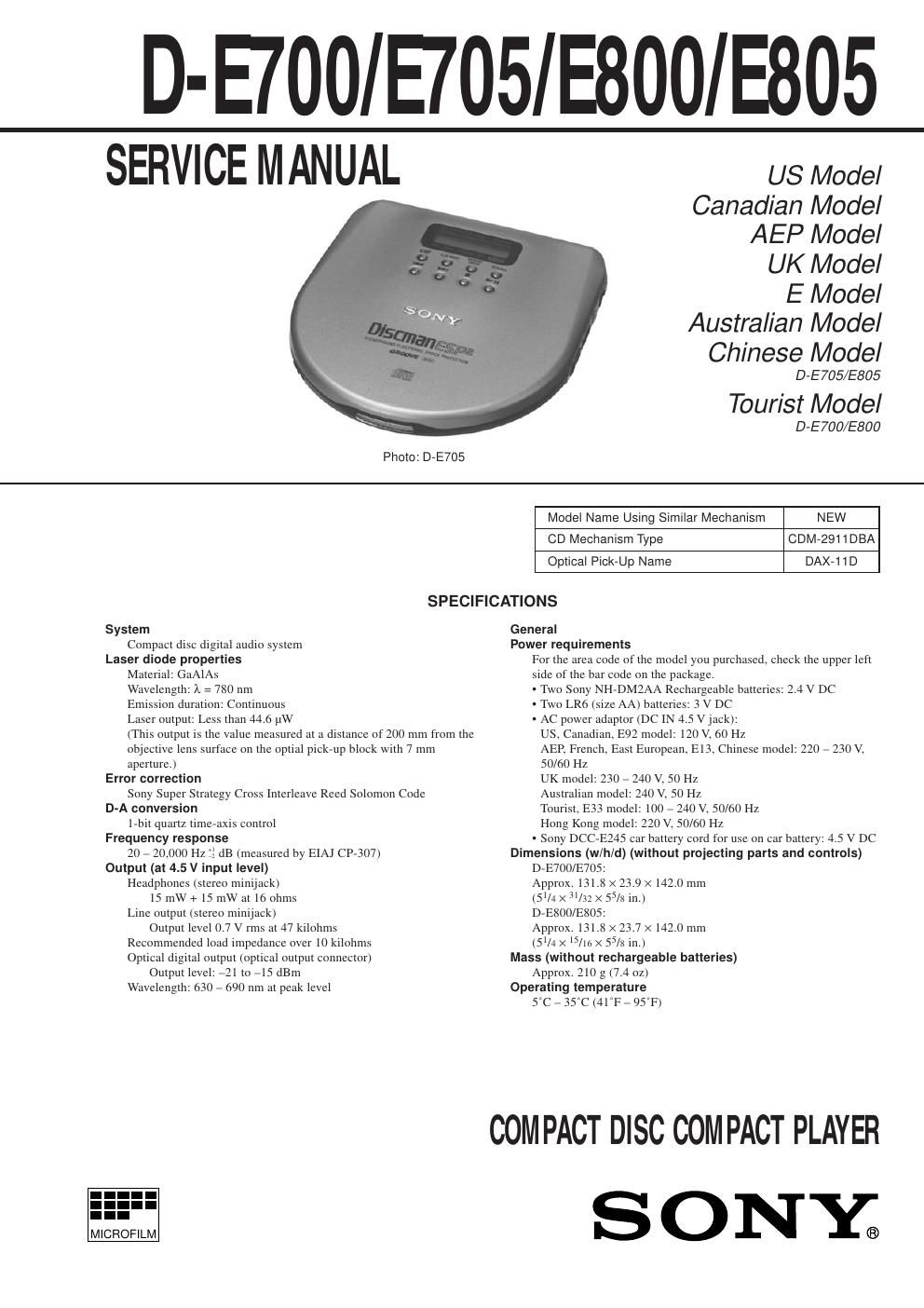

Sony d e 705 service manual

Page 1

Ð 2 Ð Flexible Circuit Board Repairing ¥ Keep the temperature of the soldering iron around 270 ûC dur- ing repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be dam- aged by heat. ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY.SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Supplied accessories For the area code of the model you purchased, check the upper left side of the bar code on the package. D-E700/E705 AC power adaptor (1) Headphones (1)* 1 Earphones with remote control (1)* 2 Rechargeable batteries (2)* 3 Connecting cord (Phono plug ´ 2 « stereo miniplug) (1)* 4 AC plug adaptor (1)* 5 Battery carryng case (1)* 3 Carrying case (1) *1Supplied with US model *2Not supplied with US model *3Not supplied with US and Canadian models *4Not supplied with AEP, French, East European, UK and Tourist models * 5Supplied with Tourist, E33, E13 and Chinese models D-E800/E805 AC power adaptor (1) Headphones with remote control (1)* 1 Earphones with remote control (1)* 2 Rechargeable batteries (2) Connecting cord (Phono plug ´ 2 « stereo miniplug) (1)* 3 AC plug adaptor (1)* 4 Battery carryng case (1) Carrying case (1) * 1Supplied with US model *2Not supplied with US model *3Not supplied with AEP, UK, French and Tourist models *4Supplied with Tourist, E33, E13 and Chinese models Design and specifications are subject to change without notice. ¥ Abbreviation E13: 220 Ð 230 V AC area E33: 100 Ð 240 V AC area E92: 120 V AC area TABLE OF CONTENTS 1. GENERAL ................................................................... 3 2. SERVICE NOTE ........................................................ 6 3. DISASSEMBLY ......................................................... 7 4. SERVICE MODE ...................................................... 8 5. ELECTRICAL ADJUSTMENTS ......................... 9 6. DIAGRAMS 6-1. Block Diagram ................................................................ 12 6-2. Printed Wiring Boards ..................................................... 14 6-3. Schematic Diagram ......................................................... 17 6-4. IC Pin Function Description ........................................... 29 7. EXPLODED VIEWS ................................................ 31 8. ELECTRICAL PARTS LIST ............................... 34
