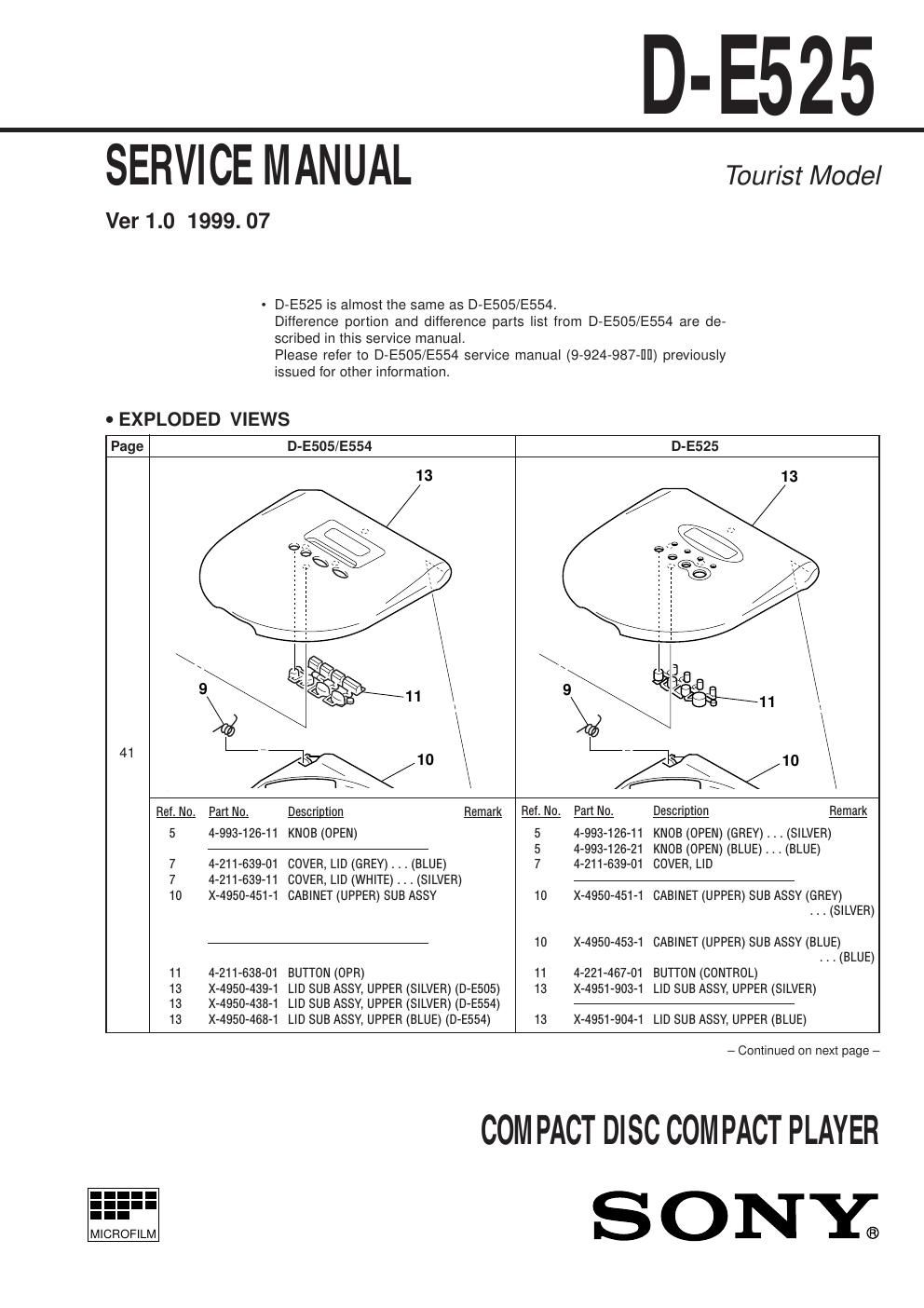

Page 1

Ð 2 Ð Sony Corporation Personal Audio Company 9-927-145-11 99G05032-1D Printed in Japan © 1999. 7 Published by General Engineering Dept. Page D-E505/E554 D-E525 42 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 43 MISCELLANEOUS ************** 0110 X-4948-977-1 OPTICAL PICK-UP (DAX-11D) 0110 X-4950-476-1 OPTICAL PICK-UP (DAX-11E) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************** 3-864-732-01 MANUAL, INSTRUCTION (JAPANESE, ENGLISH) (JEW) 3-864-732-11 MANUAL, INSTRUCTION (SPANISH) (E33, JEW) 3-864-732-21 MANUAL, INSTRUCTION (ENGLISH) (CND, E33, AUS, JEW) 3-864-732-31 MANUAL, INSTRUCTION (FRENCH) (CND, JEW) 3-864-732-41 MANUAL, INSTRUCTION (KOREAN) (JEW) 3-864-732-51 MANUAL, INSTRUCTION (CHINESE) (JEW) 8-953-272-90 HEADPHONE MDR-ED136SP//K SET Page D-E505/E554 D-E525 ·ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 48 MISCELLANEOUS ************** 0110 X-4950-476-1 OPTICAL PICK-UP (DAX-11E) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************** 3-867-190-01 MANUAL, INSTRUCTION (JAPANESE, ENGLISH) 3-867-190-11 MANUAL, INSTRUCTION (SPANISH) 3-867-190-21 MANUAL, INSTRUCTION (ENGLISH) 3-867-190-31 MANUAL, INSTRUCTION (FRENCH) 3-867-190-41 MANUAL, INSTRUCTION (CHINESE) 3-867-190-51 MANUAL, INSTRUCTION (KOREAN) 8-953-304-90 RECEIVER MDR-E805SP SET The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 52 4-993-129-01 CABINET (LOWER) (SILVER) 52 4-993-129-21 CABINET (LOWER) (BLUE) 53 4-993-131-01 KNOB (HOLD) (GREY) . . . (SILVER) 53 4-993-131-21 KNOB (HOLD) (BLUE) . . . (BLUE) 59 4-993-130-01 LID, BATTERY CASE (SILVER) 59 4-993-130-21 LID, BATTERY CASE (BLUE) 60 4-984-751-01 KNOB (AVLS) (DARK GREY) . . . (SILVER) 60 4-984-751-41 KNOB (AVLS) (BLUE) . . . (BLUE) 52 4-993-129-01 CABINET (LOWER) 53 4-993-131-01 KNOB (HOLD) 59 4-993-130-01 LID, BATTERY CASE 60 4-984-751-01 KNOB (AVLS) 0110 X-4950-476-1 OPTICAL PICK-UP (DAX-11E) 0110 X-4948-977-1 OPTICAL PICK-UP (DAX-11D) 0110 X-4950-476-1 OPTICAL PICK-UP (DAX-11E)
