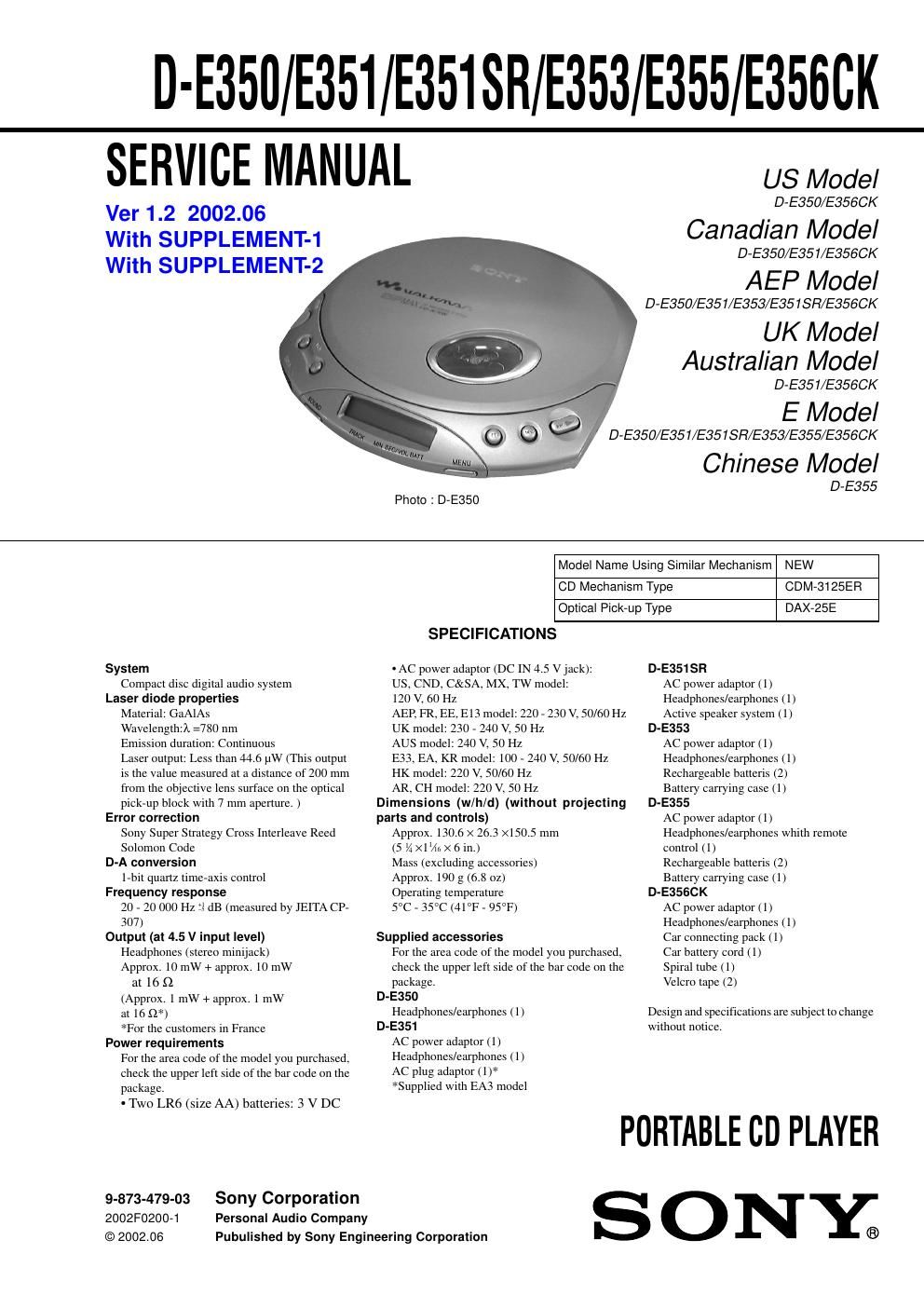

Page 1
D-E35II E351 E351SR E353 E355 E3550K
SERVICE MANUAL
Ver 1.2 2002.06
With SUPPLEMENT-1
With SUPPLEMENT-2
US Model
D-E350/E3560K
Canadian Model
D-E350/E351/E3560K
AEP Model
D-E350/E351/E353/E351SFi/E356CK
UK Model
Australian Model
D-E351/E3560K
E Model
D-E350/E351/E351SR/E353/E355/E3560K
Chinese Model
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength?» =780 nm
Emission duration: Continuous
Laser output: Less than 44.6 uW (This output
is the value measured at a distance of 200 mm
from the objective lens surface on the optical
pick-up block with 7 mm aperture. )
Error correction
Sony Super Strategy Cross Interleave Reed
Solomon Code
D-A conversion
l-bit quartz time»axis control
Frequency response
20 - 20 000 Hz 1; dB (measured by JEITA CP-
307)
Output (at 4.5 V input level)
Headphones (stereo minijack)
Approx. 10 mW + approx. 10 mW
at 16 £2
(Approx. 1 mW+ approx. 1 mW
at 16 52*)
*For the customers in France
Power requirements
For the area code of the model you purchased,
check the upper left side of the bar code on the
package.
- Two LR6 (size AA) batteries: 3 V DC
9-873-479-03 Sony Corporation
2002F0200-1 Personal Audio Company
© 2002.06
D-E355
Photo : D-E350
Model Name Using Similar Mechanism NEW
CD Mechanism Type CUM-3125ER
Optical Pick-up Type BAX-25E
SPECIFICATIONS
- AC power adaptor (DC IN 4.5 Vjack):
US, CND, C&SA, MX, TW model:
120 V, 60 Hz
AEP, FR, EE, E13 model: 220 - 230V, 50/60 Hz
UK model: 230 - 240 V, 50 Hz
AUS model: 240 V, 50 Hz
E33, EA, KR model: 100 - 240 V, 50/60 Hz
HK model: 220 V, 50/60 Hz
AR, CH model: 220 V, 50 Hz
Dimensions (w/h/d) (without projecting
parts and controls)
Approx. 130.6 x 26.3 X1505 mm
(5 % >
Mass (excluding accessories)
Approx. 190 g (6.8 oz)
Operating temperature
5°C - 35C (41F - 95°F)
Supplied accessories
D-E351 SR
Design and specifications are subject to change
PORTABLE CD PLAYER
Pubulished by Sony Engineering Corporation
ONE
For the area code of the model you purchased,
check the upper left side of the bar code on the
package.
D-E350
Headphones/earphones (l)
D-E351
AC power adaptor (l)
Headphones/earphones (1)
AC plug adaptor (1)*
*Supplied with EA3 model
AC power adaptor (l)
Headphones/earphones (1)
Active speaker system (1)
D-E353
AC power adaptor (l)
Headphones/earphones (l)
Rechargeable batteris (2)
Battery carrying case (1)
D-E355
AC power adaptor (l)
Headphones/earphones whith remote
control (1)
Rechargeable batteris (2)
Battery carrying case (1)
D-E356CK
AC power adaptor (l)
Headphones/earphones (1)
Car connecting pack (1)
Car battery cord (1)
Spiral tube (1)
Velcro tape (2)
without notice.
