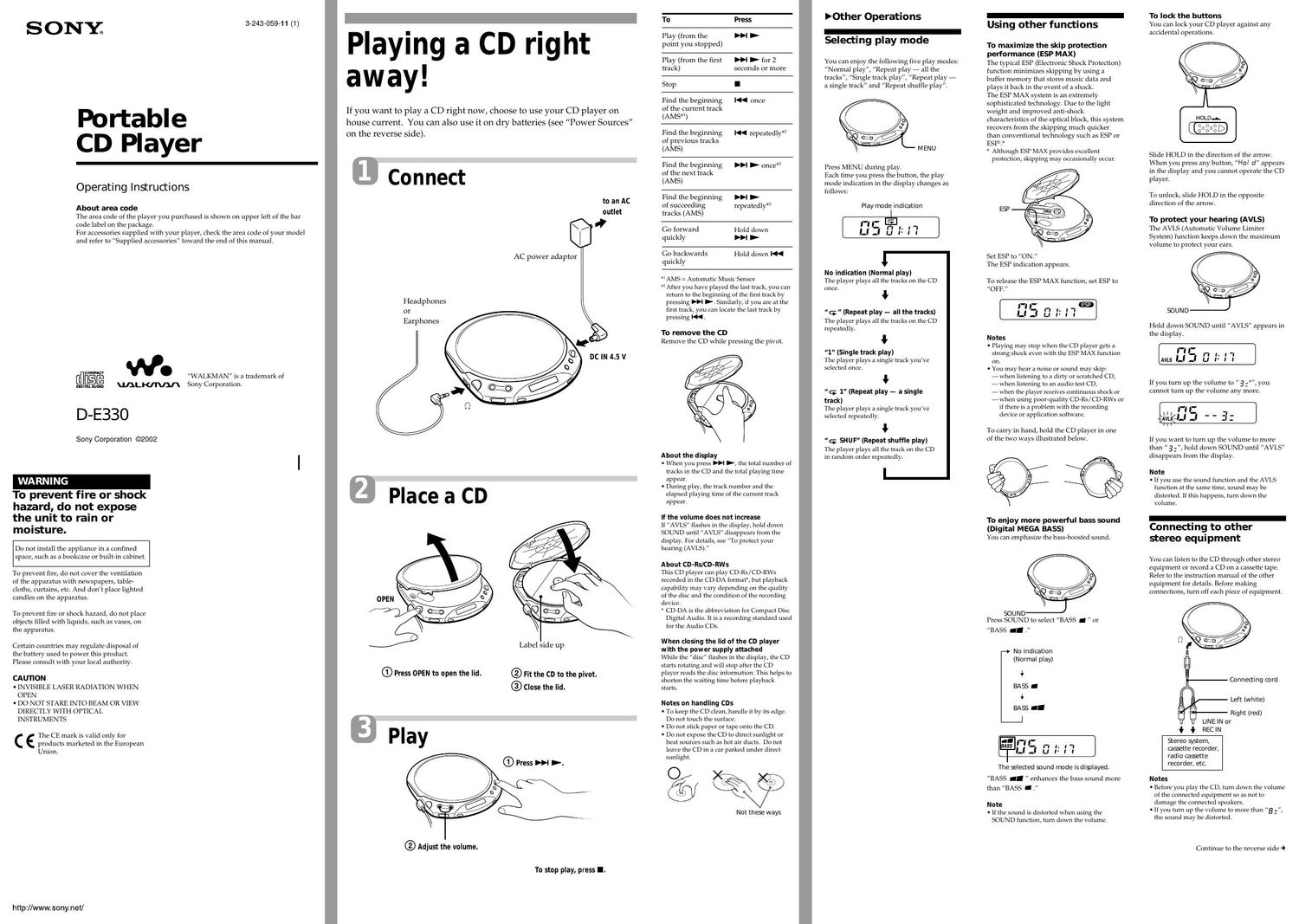

Sony d e 330 owners manual

Page 1

BPower Sources Using the dry batteries Use only the following dry battery type for your CD player: - LR6 (size AA) alkaline batteries Note Be sure to remove the AC power adaptor when using the dry batteries. 1 Open the battery compartment lid. 2 Insert two LR6 (size AA) alkaline batteries by matching the 3 to the diagram in the battery compartment. To remove the batteriesRemove the batteries as illustrated below. When to replace the batteriesYou can check the remaining power of the batteries in the display. Battery power is full. Battery power is getting low. Battery power is low. Lo batt* Batteries are depleted. *Beep sounds. When the batteries are depleted, replace both batteries with new ones. Notes - The indicator sections of roughly shows the remaining battery power. One section does not always indicate one-fourth of the battery power. - Depending on operating conditions, the indicator sections of may increase or decrease. To attach the battery compartment lid If the battery compartment lid is detached by an accidental drop, excessive force, etc., attach it as illustrated below. BAdditional Information Precautions On safety- Should any solid objects or liquid fall into the unit, unplug it and have it checked by qualified personnel before operating it any further. - Do not put any foreign objects in the DC IN 4.5 V (external power input) jack. On power sources- When you are not using the CD player for a long time, disconnect all power sources from the player. On the AC power adaptor- Use only the supplied AC power adaptor. If your player is not supplied with it, use AC- E45HG AC power adaptor. Do not use any other AC power adaptor. - To unplug the AC power adaptor from the wall outlet, grasp the adaptor itself, do not pull its cord. On dry batteries- Do not throw the batteries into fire. - Do not carry the batteries with coins or other metallic objects. It can generate heat if the positive and negative terminals of the battery are accidentally contacted by a metallic object. - Do not mix new batteries with old ones. - Do not use different types of batteries together. - When the batteries are not to be used for a long time, remove them. - If battery leakage occurs, wipe off any deposit in the battery compartment, and install new batteries. In case the deposit adheres to you, wash it off thoroughly. On the CD player- Keep the lens of the CD player clean and do not touch it. If you do so, the lens may be damaged and the CD player will not operate properly. - Do not put any heavy object on top of the player. The CD player and the CD may be damaged. - Do not leave the CD player in a location near heat sources, or in a place subject to direct sunlight, excessive dust or sand, moisture, rain, mechanical shock, unleveled surface, or in a car with its windows closed. - If the CD player causes interference to radio or television reception, turn off the CD player or move it away from the radio or television. - Do not wrap the CD player in a cloth or blanket during use as it may cause malfunction or serious accidents. - Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this CD player. Attempting to do so may damage the CD player. Do not use such discs. On headphones/earphonesRoad safetyDo not use headphones/earphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations. Preventing hearing damageAvoid using headphones/earphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use. Consideration for othersKeep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to the people around you. Maintenance To clean the casingUse a soft cloth slightly moistened in water or a mild detergent solution. Do not use alcohol, benzine or thinner. Troubleshooting Should any problem persist after you have made these checks, consult your nearest Sony dealer. The CD does not play or no dlSC appears in the display though a CD is placed in the CD player. cThe buttons are locked. Slide HOLD back. cThe CD is dirty or defective. cInsert the CD with the label side up. cMoisture condensation has occurred. Leave the CD player aside for several hours until the moisture evaporates. cClose the lid of the CD player and the battery compartment firmly. cMake sure the batteries are inserted correctly. cConnect the AC power adaptor to a wall outlet securely. cThe CD-R/CD-RW was not finalized. Finalize the CD-R/CD-RW with the recording device. cThere is a problem with the quality of the CD-R/CD-RW, recording device, or application software. 00 appears in the display for a moment, and disappears. The CD does not play. cDry batteries are used up. Replace them with new LR6 (size AA) alkaline batteries. No sound, or noise is heard. cConnect the plugs firmly. cPlugs are dirty. Clean the plugs with a dry soft cloth periodically. Hl dc ln appears in the display. cUse only the supplied AC power adaptor or AC power adaptor AC-E45HG (not supplied). cRemove all power sources, then insert the batteries or connect the AC power adaptor again. Hold appears in the display when you press a button. cThe buttons are locked. Slide HOLD back. The indication appears in the display when you press a button. cDry batteries are used up. Replace them with new LR6 (size AA) alkaline batteries. The battery life is short. cManganese batteries are used. Use alkaline batteries. cReplace the batteries with new ones. The rechageable batteries cannot be charged in the battery compartment of this CD player. cThis CD player does not have the function to charge the rechargeable batteries. The volume is limited to a certain level even if you attempt to turn it up. cAVLS function keeps down the volume. Hold down SOUND until AVLS disappears from the display. Playback starts from the point you stopped. (resume function) cThe resume function is working. To start playing from the first track, press > N for 2 seconds or more, or open the lid of the CD player. Or remove all power sources, then insert the batteries or connect the AC power adaptor again. When closing the lid of the CD player, the CD starts to rotate. cThe CD player is reading the information on the CD. It is not malfunctioning. Supplied accessoriesFor the area code of the model you purchased, check the upper left side of the bar code on the package. Headphones/earphones (1) Design and specifications are subject to change without notice. Optional accessories Car connecting pack CPA-9C Car battery cord with car connecting pack DCC-E34CP Car battery cord DCC-E345 Active speaker system SRS-A17 Connecting cord RK-G129, RK-G136 AC power adaptor AC-E45HG Stereo headphones* MDR-EX70LP, MDR- E848LP * When using optional headphones, use only headphones with stereo miniplugs. You cannot use headphones with micro plugs. Your dealer may not handle some of the accessories listed above. Please ask the dealer for detailed information about the accessories in your country.Stereo miniplug Micro plug Polarity of the plug r aaaa aaaa r r r r Battery life (approx. hours)(JEITA*)Battery life varies depending on how the player is used. ESP OFF ESP ON Two Sony alkaline 23 33 batteries LR6(SG) (produced in Japan) * Measured value by the standard of JEITA (Japan Electronics and Information Technology Industries Association). (When the CD player is used on a flat and stable place.) (rear) Specifications System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture. ) Error correction Sony Super Strategy Cross Interleave Reed Solomon Code D-A conversion 1-bit quartz time-axis control Frequency response 20 - 20 000 Hz +1 –5 dB (measured by JEITA CP- 307) Output (at 4.5 V input level) Headphones (stereo minijack) Approx. 10 mW + approx. 10 mW at 16 Ω Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. - Two LR6 (size AA) batteries: 3 V DC - AC power adaptor (DC IN 4.5 V jack): U/U2/CA2/E92/MX2/TW2/BR3 model: 120 V, 60 Hz CED/CEX/CET/CEW/CE7/EE/EE1/ E13/G5/G6/G7/G8/BR1 model: 220 - 230 V, 50/60 Hz CEK/3CE7 model: 230 - 240 V, 50 Hz AU2 model: 240 V, 50 Hz JE.W/E33/EA3/KR4 model: 100 - 240 V, 50/60 Hz HK2 model: 220 V, 50/60 Hz AR1/CNA model: 220 V, 50 Hz Dimensions (w/h/d) (without projecting parts and controls) Approx. 130.6 × 26.3 × 150.5 mm (5 1⁄4 × 1 1⁄16 × 6 in.) Mass (excluding accessories) Approx. 190 g (6.8 oz) Operating temperature 5°C - 35°C (41°F - 95°F) To turn off the operation beep sound You can turn off the beep sound that is heard from your headphones/earphones when you operate your CD player. 1Remove the power source (AC power adaptor or dry batteries) from the CD player. 2Connect the power source while pressing x. To turn on the beep sound Remove the power source and then connect the power source without pressing x.
