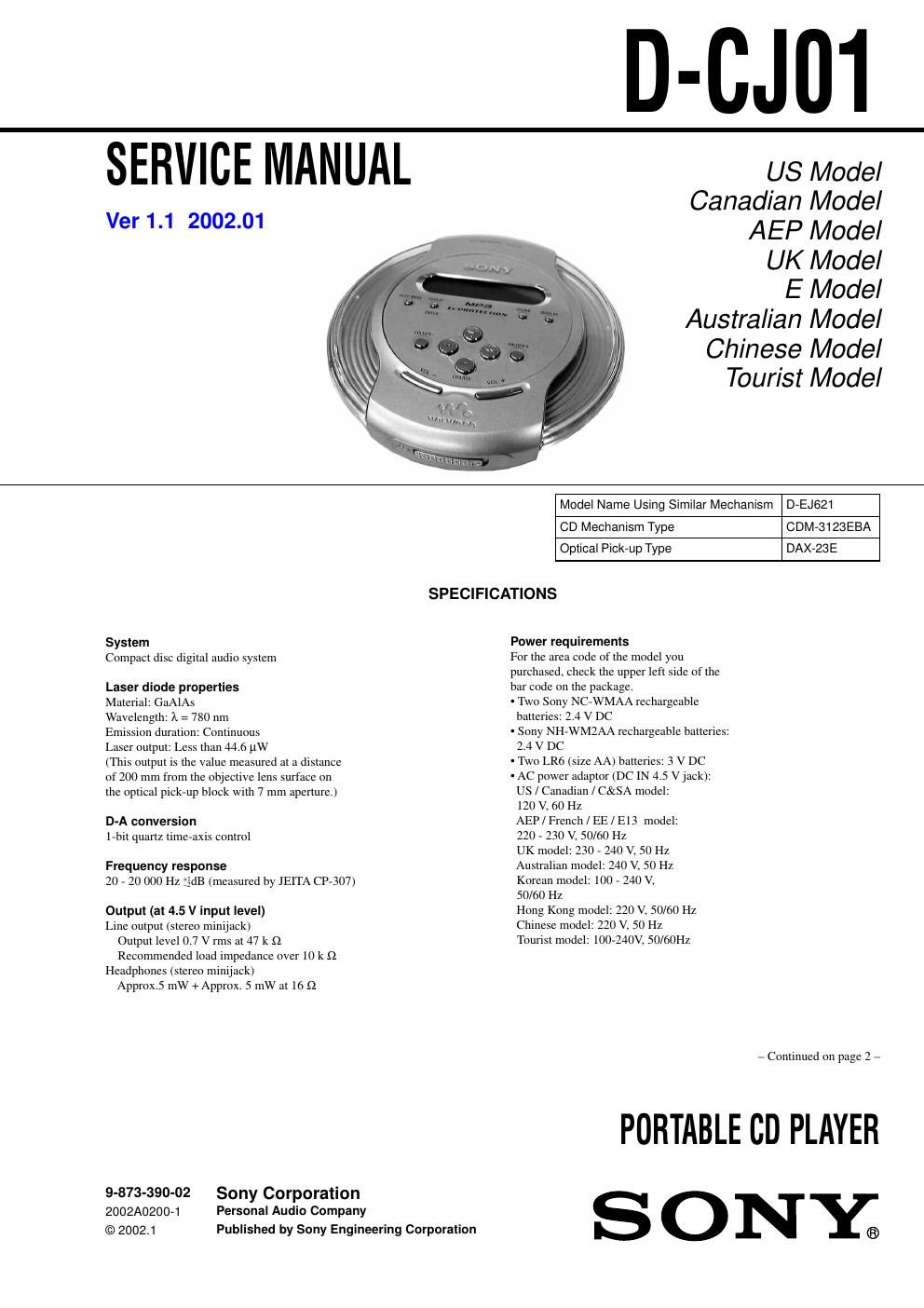

Page 1

D-CJ01

SERVICE MANUAL

Ver 1.1 2002.01

US Model
Canadian Model
AEP Model

UK Model

E Model
Australian Model
Chinese Model
Tourist Model

Model Name Using Similar Mechanism D-EJ621
CDM-3123EBA
BAX-23E

CD Mechanism Type

Optical Pick-up Type

SPECIFICATIONS

System
Compact disc digital audio system

Laser diode properties

Material: GaAlAs

Wavelength: it = 780 nm

Emission duration: Continuous

Laser output: Less than 44.6 [AW

(This output is the value measured at a distance
of 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)

D-A conversion
l-bit quartz time-axis control

Frequency response
20 - 20 000 Hz *fidB (measured by JEITA CP-307)

Output (at 4.5 V input level)
Line output (stereo minijack)
Output level 0.7 V rms at 47 k 9
Recommended load impedance over 10 k 9
Headphones (stereo minijack)
Approx.5 mW + Approx. 5 mW at 16 S!

9-873-390-02 Sony Corporation
2002A0200-1 Personal Audio Company
© 2002.1 Published by Sony Engineering Corporation

Power requirements
For me area code of the model you
purchased, check the upper left side of the
bar code on the package.
- Two Sony NC-WMAA rechargeable
batteries: 2.4 V DC
- Sony NH-WMZAA rechargeable batteries:
2.4 V DC
- Two LR6 (size AA) batteries: 3 V DC
- AC power adaptor (DC [N 4.5 Vjack):
US / Canadian / C&SA model:
120 V, 60 Hz
AEP/French / EE/E13 model:
220 - 230 V, 50/60 Hz
UK model: 230 - 240 V, 50 Hz
Australian model: 240 V, 50 Hz
Korean model: 100 - 240 V,
50/60 Hz
Hong Kong model: 220 V, 50/60 Hz
Chinese model: 220 V, 50 Hz
Tourist model: lOO-Z4OV, 50/60Hz

- Continued on page 2 -

PORTABLE co PLAYER
S 0 NY.

Page 2

D-CJ01

Battery life" (approx. hours)

(When you use the CD player on a flat and stable surface.)
Playing time varies depending on how the CD player is used.
Figures in brackets show the playing time of

MP3 files.

When using G-PFIOTECTION function
1 u 2..

Two NC-WMAA 10.5 10.5

(charged for [8] [8]

about 3 hours* *)

NH-WMZAA 22.5 23

(charged for [18] [18]

about 5 hours)

Two Sony alkaline 31.5 32

batteries LR6(SG) [24] [24]

(produced in Japan)

* Measured value by the standard of JEITA (Japan
Electronics and Information Technology
Industri , ciation).

** Charging time Varies depending on how the

rechargeable battery is used.

Operating temperature
5°C - 35°C (41°F - 95°F)

Dimensions (w/h/d) (excluding
projecting parts and controls)
Approx. 132.0 x 29.9 X 137.5 mm
(5V4xl mes Vim.)

Mass (excluding accessories)
Approx. 218 g (7.7 02.)

Design and specifications are subject to change
without notice.

. Abbreviation
EE : East European
C&SA : Central & SonthAmerica

DANGER
Invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.

CAUTION

Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
EXPOSLWC.

Flexible Circuit Board Repairing

I Keep the temperature of the soldering iron around 270°C during
repairing.

I Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

I Be careful not to apply force on the conductor when soldering or
unsoldering.

Notes on chip component replacement

I Never reuse a disconnected chip component.

I Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.

TABLE OF CONTENTS
Specifications ............................................................................ l
1. SERVICING NOTES ................................................... 3
2. GENERAL
Locating the Controls ......................................................... 4

3. DISASSEMBLY
3]. Cabinet (Lower) Sub ASSY,

Cabinet (Inner) Sub ASSY . 5
32. MD Mechanism . 5
373. Main Board ..... 6
374. Motor ASSY, Turn Table (Spindle) (M901) 6
375. Motor ASSY (Sled) (M902)",
Optical Pick7up (BAX-23E) ...................................... 6
3-6. Switch Unit ................................................................. 7
4. ELECTRICAL ADJUSTMENTS ............................. 8

5. DIAGRAMS
5.1_ Explanation of IC Terminals ....................................... 9
52. Block Diagram(1/2) ..
573. Block Diagram(2/2
574. Printed Wiring Board 7 Main Board (Side A)
575. Printed Wiring Boards 7 Main Board (Side B)
576. Schematic Diagram 7 Main Section (1/4) 7 ..
577. Schematic Diagram 7 Main Section (2/4) 7
5.3 Schematic Diagram 7 Main Section (3/4) 7 .
5.9 Schematic Diagram 7 Main Section (4/4) 7 ............. 18

6. EXPLODED VIEWS
671. Upper Lid Section.
6-2. Main Section ...... .
63. Optical pickup Section (CDM-3123EBA) .............. 24

7. ELECTRICAL PARTS LIST ................................... 25

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA sEcuanEu

LEs COMPOSANTS IDENTIFIEs PAR UNE MARQUE A sun
LEs DIAGRAMMES SCHEMATIQUES ET LA LISTE DES
PIECES SONT CRITIQUES POUR LA SECURITE DE
FONCTIONNEMENT. NE REMPLACEFI CES COMPOSANTS
QUE PAR DES PIECES SONY DONT LEs NUMERos SONT
DONNEs DANs CE MANUEL ou DANS LEs SUPPLEMENTS
PUBLIEs PAR SONY.
