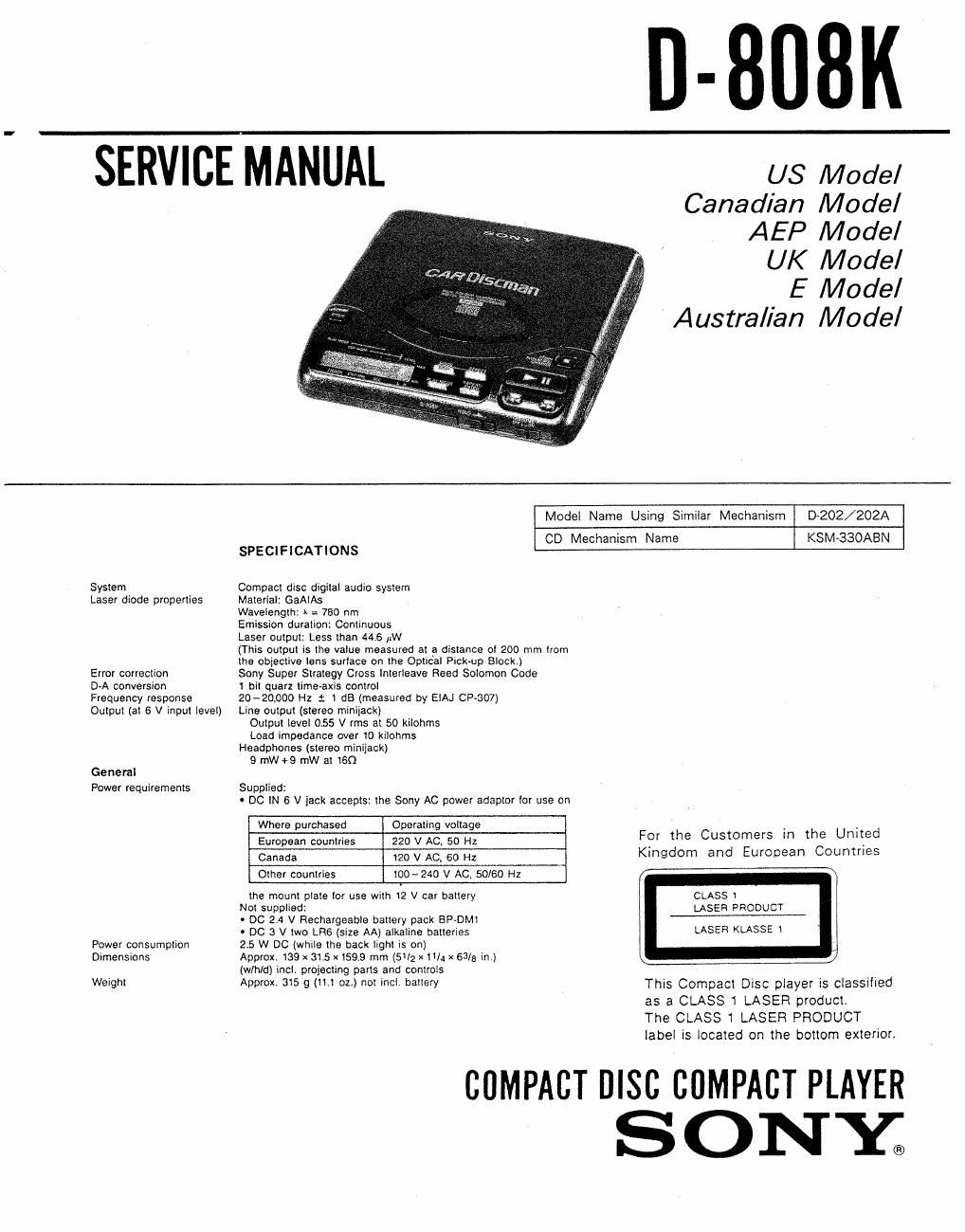

Page 1

D-BDBK

SERVICE MANUAL

US Model
Canadian Model
AEP Model

UK Model

E Model
Austral/an Model

System
Laser diode properties

Error correction

D-A conversion
Frequency response
Output (at 6 V input level)

General
Power requirements

Power consumption
Dimensions

Weight

Model Name Using Similar Mechanism

D7202/202A

SPECIFICATIONS

CD Mechanism Name

KSM-330ABN

Compact disc digital audio system
Material: GaAlAs
Wavelength: x = 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 W
(This output is the value measured at _a distance pl 200 mm trom
the objective lens surtace on the Optical Pick-up Block)
Sony Super Strategy Cross tnterleave Reed Solomon Code
1 bit quarz time-axis control
20-20130!) H2 2 1 63 (measured by EIAJ CP-SW)
Line output (stereo minijack)
Output level 0.55 V rms at 50 kilohms
Load impedance over 10 kilohms
Headphones (stereo minijack)
9 mw+9 mW at 160

Supplied:
0 DO IN 6 V tack accepts: the Sony AC power adaptor for use on

Where purchased Operating voltage
European countries 220 V AC. 50 Hz
Canada t20 V AC, 50 Hz
Other countries 100~24O V AC, 50/60 Hz

the mount plate lor use with 12 V car battery
Not supplied:
0 DC 2.4 V Rechargeable battery pack BP-DMt
0 DC 3 V two LRG (size AA) alkaline batteries
25 W DC (while the back light is on)
Approx. 139 X 31.5 x1593 mm (5l2 x Illa x 63/5 in.)
(win/d) incl. projecting pans and controls
Approx, 315 9 (11,1 02.) not incl battery

For the Customers in the United
Kingdom and European Countries

CLASS 1
LASER PRODUCT

LASER KLASSE I

This Compact Disc player is classified
as a CLASS 1 LASER product.

The CLASS 1 LASER PRODUCT
label is located on the bottom exterior.

COMPACT DISC COMPACT PLAYER

SONY;
